Sale!

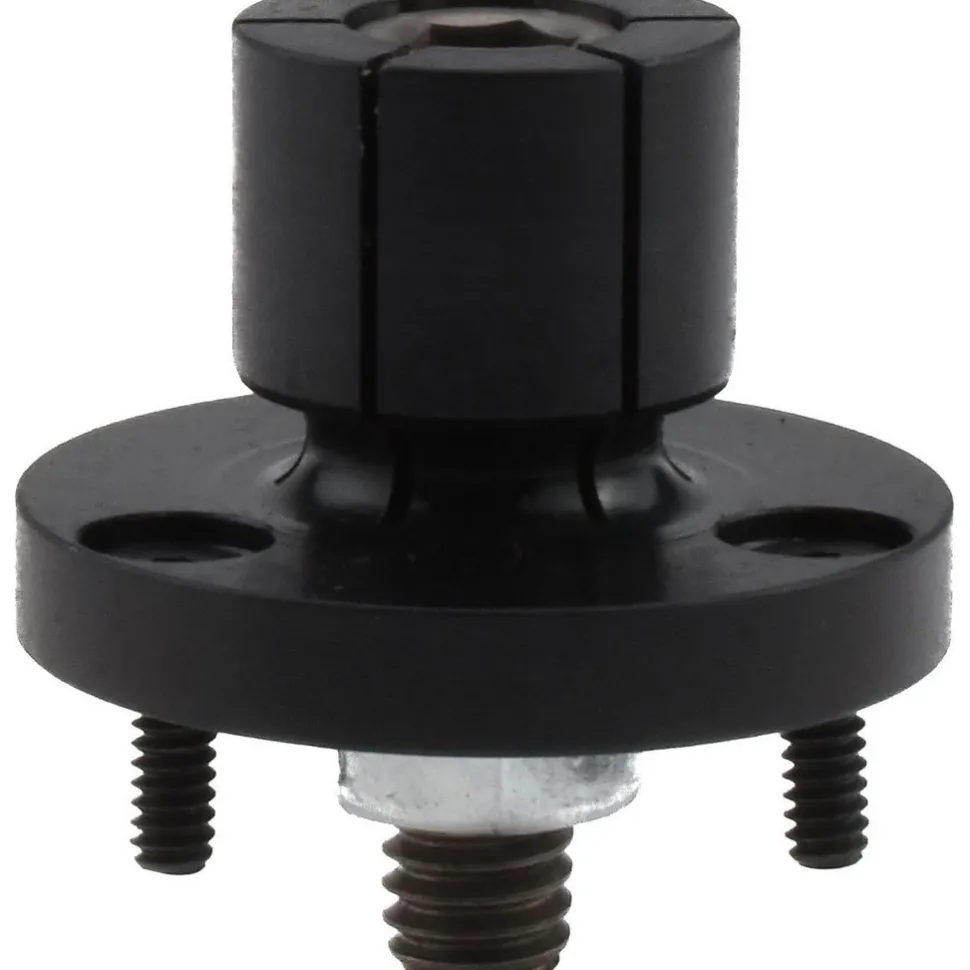

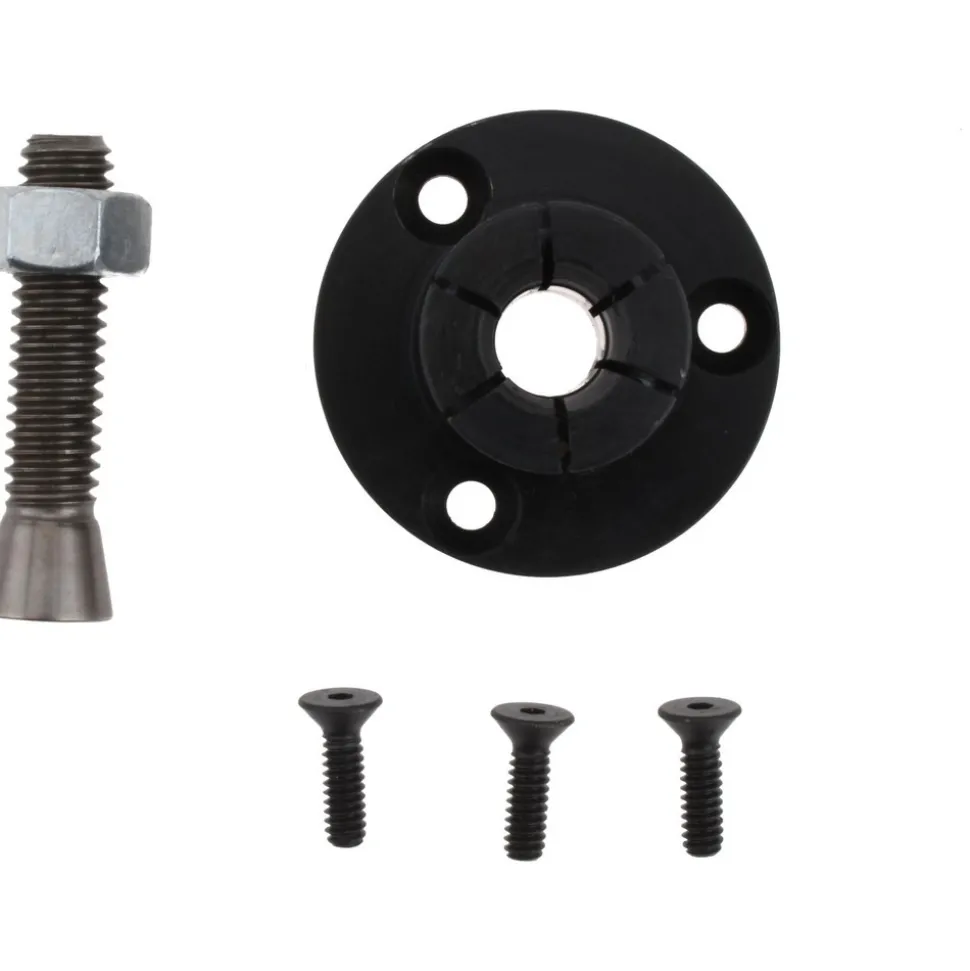

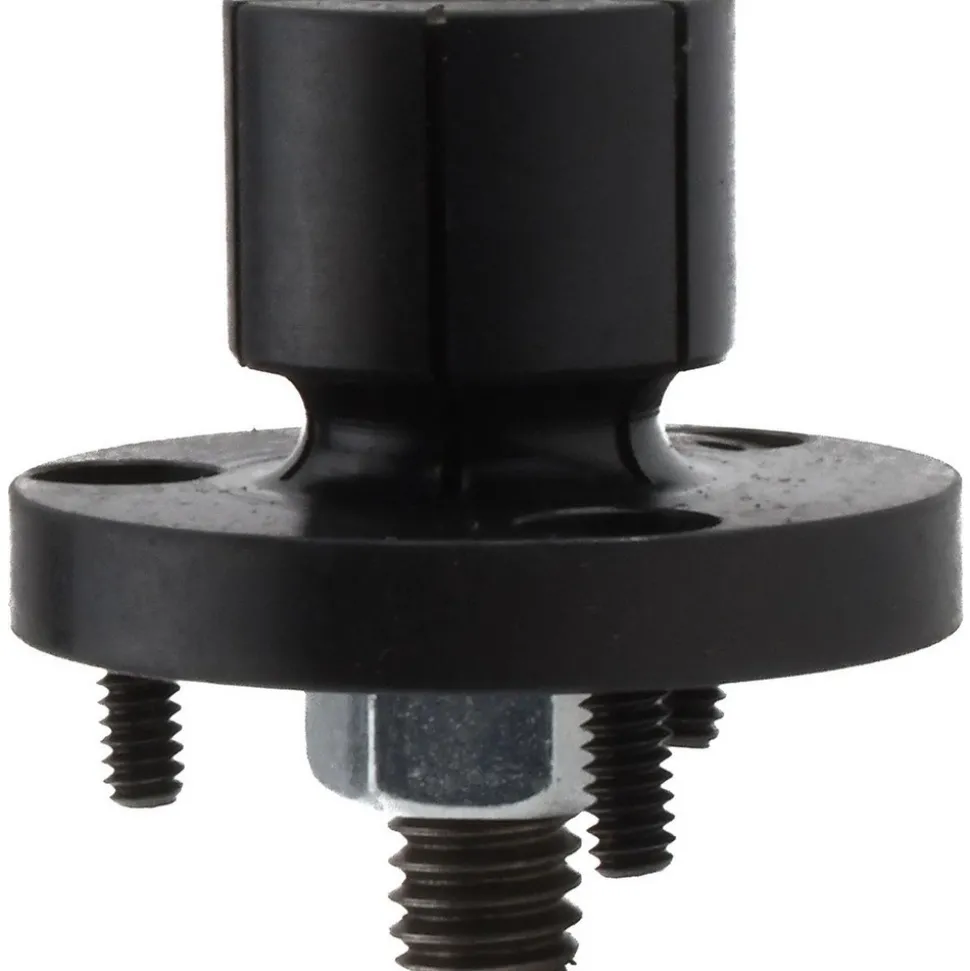

0.53 to 0.79″ Expansion Dia, 2,500 Lb Holding Force, 6-32 Mounting Screw, 5/16-18 Center Screw, Mild Steel ID Expansion Clamps
Original price was: 45,00 $.30,99 $Current price is: 30,99 $.
Specifications
| Torque (Ft/Lb): 27.6000 | Holding Force (Lb.): 2500.00 |
| Holding Force: 2500 lb | Flange Diameter (Decimal Inch): 1.4760 |
| Maximum Expansion Diameter: 0.79 in | Maximum Expansion Diameter (Decimal Inch): 0.7900 |
| Minimum Expansion Diameter (Decimal Inch): 0.5300 | Minimum Expansion Diameter: 0.53 in |
| Flange Thickness (Decimal Inch): 0.2300 | Expansion Height (Decimal Inch): 0.5900 |
| Height Above Flange (Decimal Inch): 0.7500 | Overall Height (Decimal Inch): 0.9800 |
| Center Screw Thread Size: 5/16-18 | Mounting Screw Thread Size: 6-32 |
| Material: Mild Steel | Mount Hole Diameter (Decimal Inch): 1.1400 |
| Number Of Mount Holes: 3 | Thread Length Below Base (Decimal Inch): 0.5600 |
| UNSPSC Code: 27112100 | Country of Origin: UNITED STATES |
| Torque (Ft/Lb): 27.6000 | |
| Holding Force (Lb.): 2500.00 | |
| Holding Force: 2500 lb | |
| Flange Diameter (Decimal Inch): 1.4760 | |
| Maximum Expansion Diameter: 0.79 in | |
| Maximum Expansion Diameter (Decimal Inch): 0.7900 | |
| Minimum Expansion Diameter (Decimal Inch): 0.5300 | |
| Minimum Expansion Diameter: 0.53 in | |
| Flange Thickness (Decimal Inch): 0.2300 | |
| Expansion Height (Decimal Inch): 0.5900 | |
| Height Above Flange (Decimal Inch): 0.7500 | |
| Overall Height (Decimal Inch): 0.9800 | |
| Center Screw Thread Size: 5/16-18 | |
| Mounting Screw Thread Size: 6-32 | |
| Material: Mild Steel | |
| Mount Hole Diameter (Decimal Inch): 1.1400 | |
| Number Of Mount Holes: 3 | |
| Thread Length Below Base (Decimal Inch): 0.5600 | |
| UNSPSC Code: 27112100 | |
| Country of Origin: UNITED STATES |
| MSC# | 88794219 |
| Mfr# | 31150 |
| Big Book# | 1330 |
