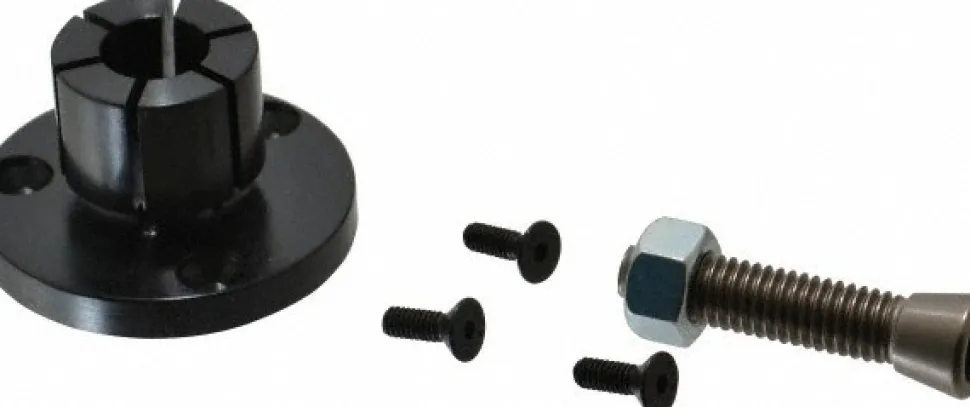

0.71 to 1.06″ Expansion Dia, 4,500 Lb Holding Force, 8-32 Mounting Screw, 3/8-16 Center Screw, Mild Steel ID Expansion Clamps
Original price was: 58,00 $.40,99 $Current price is: 40,99 $.

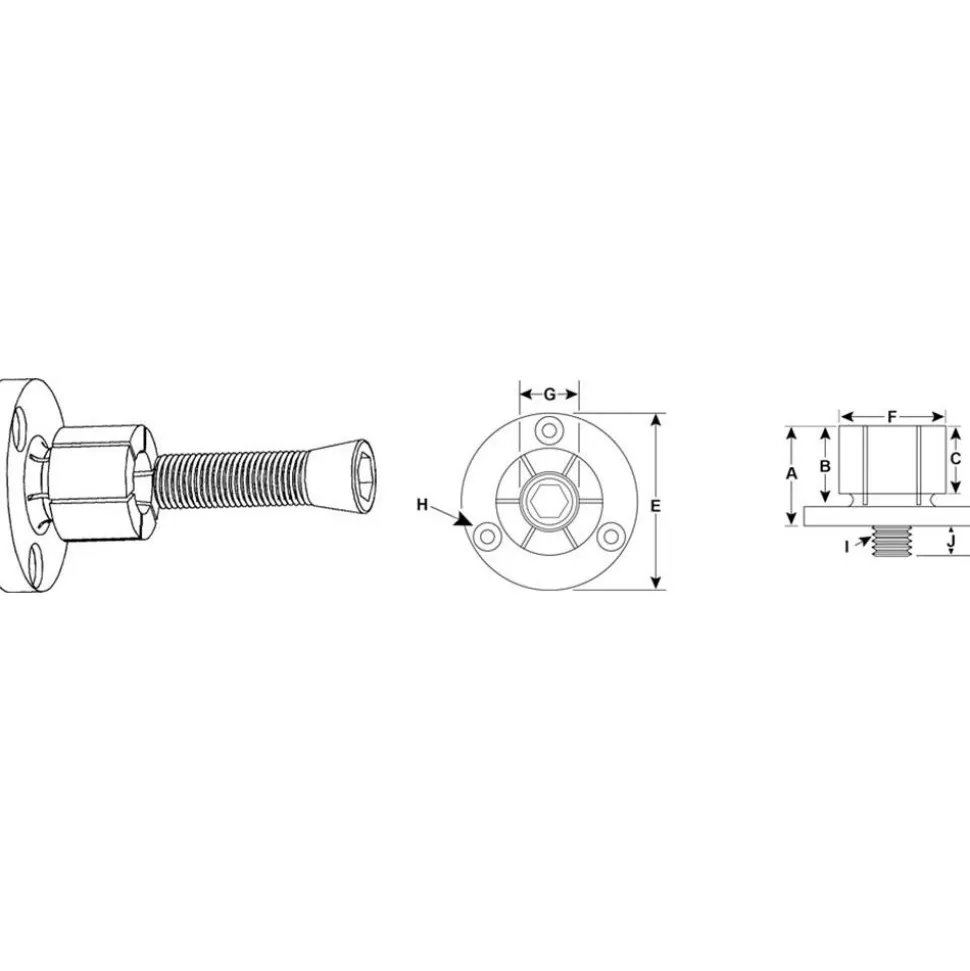

Specifications
| Torque (Ft/Lb): 49.3000 | Holding Force (Lb.): 4500.00 |
| Holding Force: 4500 lb | Flange Diameter (Decimal Inch): 1.9680 |
| Maximum Expansion Diameter: 1.06 in | Maximum Expansion Diameter (Decimal Inch): 1.0600 |
| Minimum Expansion Diameter (Decimal Inch): 0.7100 | Minimum Expansion Diameter: 0.71 in |
| Flange Thickness (Decimal Inch): 0.2500 | Expansion Height (Decimal Inch): 0.6900 |
| Height Above Flange (Decimal Inch): 0.8800 | Overall Height (Decimal Inch): 1.1300 |
| Center Screw Thread Size: 3/8-16 | Mounting Screw Thread Size: 8-32 |
| Material: Mild Steel | Mount Hole Diameter (Decimal Inch): 1.5500 |
| Number Of Mount Holes: 3 | Thread Length Below Base (Decimal Inch): 0.7100 |
| Features: For Additional Rigidity Install Recessed Dowel Pin in to Flange | UNSPSC Code: 27112100 |
| Country of Origin: UNITED STATES | |
| Torque (Ft/Lb): 49.3000 | |
| Holding Force (Lb.): 4500.00 | |
| Holding Force: 4500 lb | |
| Flange Diameter (Decimal Inch): 1.9680 | |
| Maximum Expansion Diameter: 1.06 in | |
| Maximum Expansion Diameter (Decimal Inch): 1.0600 | |
| Minimum Expansion Diameter (Decimal Inch): 0.7100 | |
| Minimum Expansion Diameter: 0.71 in | |
| Flange Thickness (Decimal Inch): 0.2500 | |
| Expansion Height (Decimal Inch): 0.6900 | |
| Height Above Flange (Decimal Inch): 0.8800 | |
| Overall Height (Decimal Inch): 1.1300 | |
| Center Screw Thread Size: 3/8-16 | |
| Mounting Screw Thread Size: 8-32 | |
| Material: Mild Steel | |
| Mount Hole Diameter (Decimal Inch): 1.5500 | |
| Number Of Mount Holes: 3 | |
| Thread Length Below Base (Decimal Inch): 0.7100 | |
| Features: For Additional Rigidity Install Recessed Dowel Pin in to Flange | |
| UNSPSC Code: 27112100 | |
| Country of Origin: UNITED STATES |
| MSC# | 68082940 |
| Mfr# | 31200 |
| Big Book# | 1330 |
