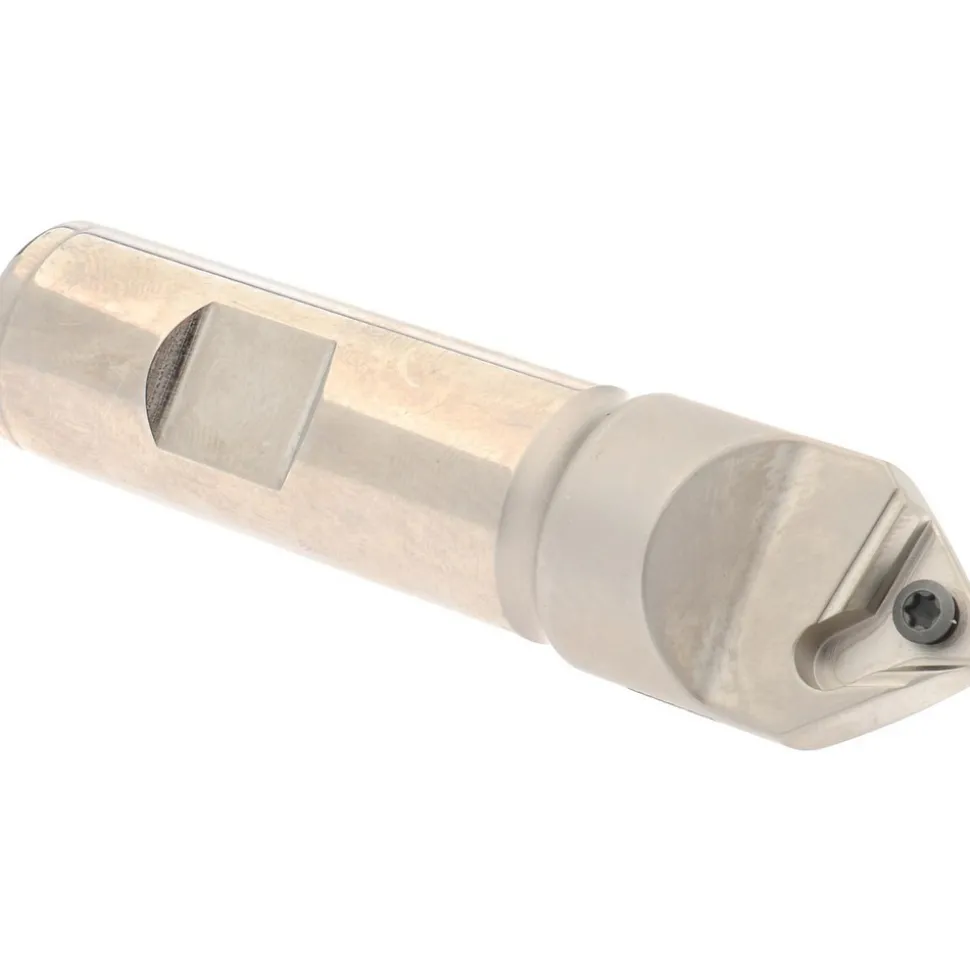

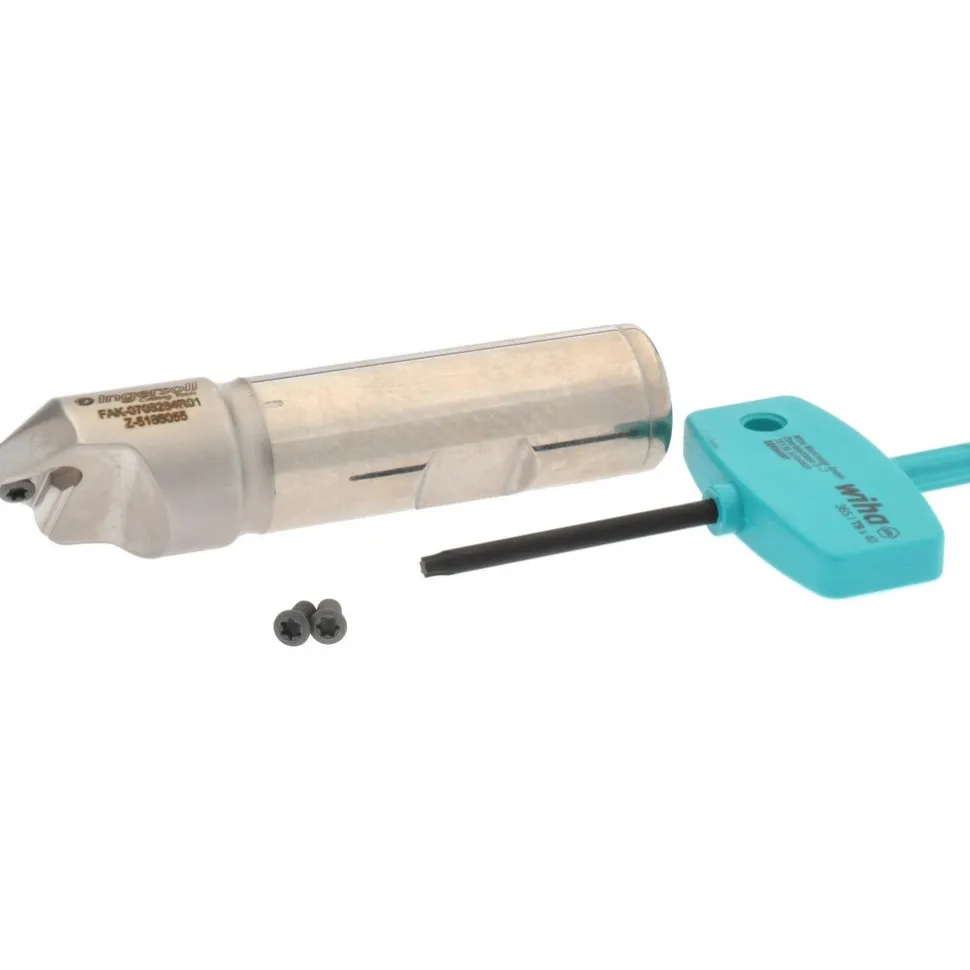

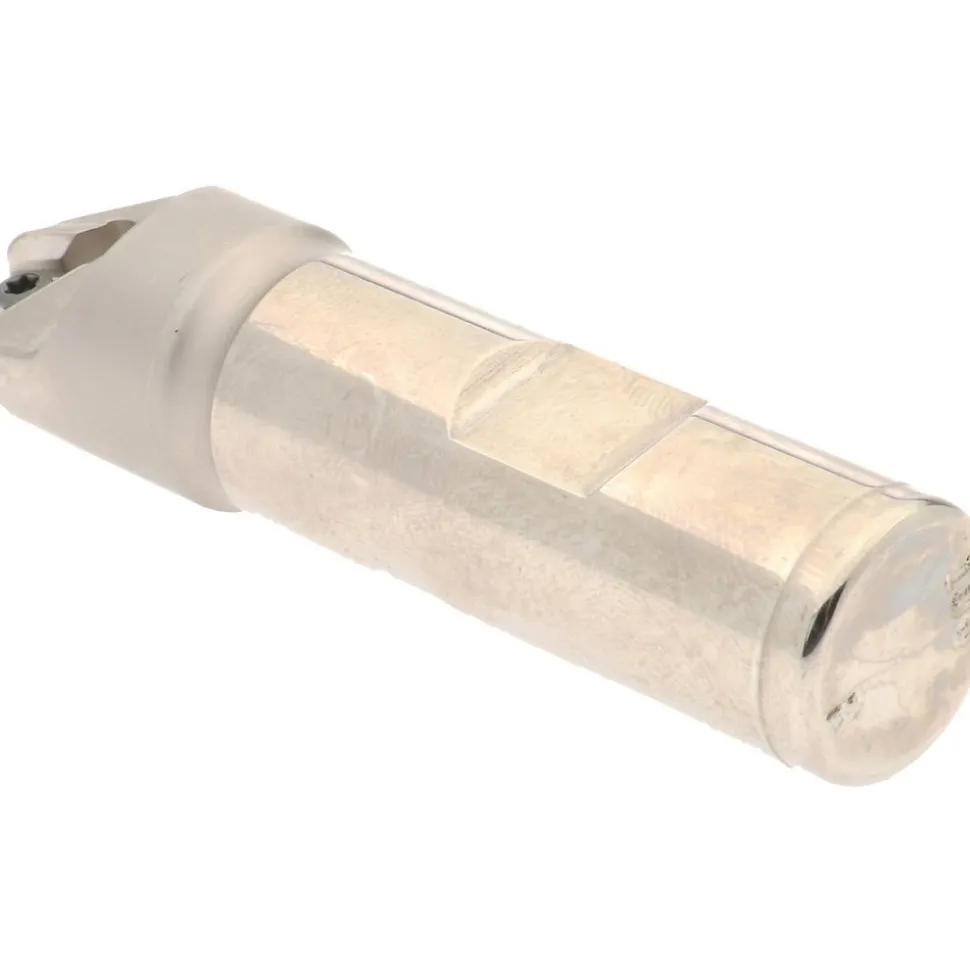

0.782″ 82° Indexable Spotting Drill

140,99 $

Specifications

Drill Type: Spotting Drill	Drill Diameter (Decimal Inch): 0.7820
Drill Diameter: 0.7820 in	Drill Bit Point Angle: 82
Shank Type: Weldon Flat	Shank Diameter (Fractional Inch): 3/4
Shank Diameter: 0.7500	Number of Drill Inserts: 1
Compatible Insert Style: TFLT	Compatible Insert Size Code: 15T308
Tool Material: Steel	Coated: Uncoated
Overall Length: 3.5000	Through Coolant: No
Coolant Entry Style Code: 0-Without Coolant	Maximum Depth Of Cut: 0.4200 in
Cutting Direction: Right Hand	Series: FAK
Number Of Flutes: 1	Flute Type: Straight
Tool Application: Spotting	Tool Performance: General Purpose
Primary Workpiece Material: Universal	Primary Workpiece Material Code: P; S; H; K; M; N
UNSPSC Code: 23291500	Country of Origin: UNITED STATES
Drill Type: Spotting Drill
Drill Diameter (Decimal Inch): 0.7820
Drill Diameter: 0.7820 in
Drill Bit Point Angle: 82
Shank Type: Weldon Flat
Shank Diameter (Fractional Inch): 3/4
Shank Diameter: 0.7500
Number of Drill Inserts: 1
Compatible Insert Style: TFLT
Compatible Insert Size Code: 15T308
Tool Material: Steel
Coated: Uncoated
Overall Length: 3.5000
Through Coolant: No
Coolant Entry Style Code: 0-Without Coolant
Maximum Depth Of Cut: 0.4200 in
Cutting Direction: Right Hand
Series: FAK
Number Of Flutes: 1
Flute Type: Straight
Tool Application: Spotting
Tool Performance: General Purpose
Primary Workpiece Material: Universal
Primary Workpiece Material Code: P; S; H; K; M; N
UNSPSC Code: 23291500
Country of Origin: UNITED STATES
