Sale!

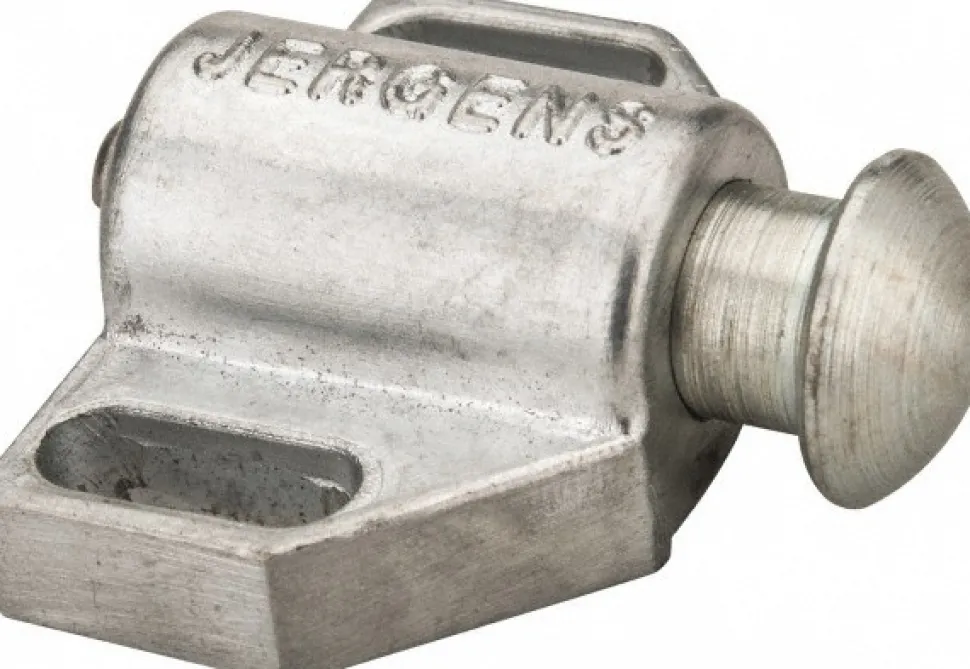

1-1/2″ Base Width, 3/16″ Stroke Len, 9/16″ Stop Head OD, 1-1/8″ Btw Mt Hole Ctrs, 7/8″ Btw Mt Hole & Edge, Round Spring Locating Stop

Original price was: 19,00 $.Current price is: 14,99 $.

SKU: SKU4FK67bYt9n Categories: Clamping, Workholding & Positioning, Locating & Positioning Components, Shop All Products Tag: Jergens Brand: Jergens

Description
Reviews (0)

Specifications

Stop Head Outside Diameter (Inch): 0.5625 in	Stop Head Outside Diameter (Decimal Inch): 0.5625
Stroke Length: 0.19 in	Stroke Length (Inch): 3/16
Body Length: 1 in	Base Width (Inch): 1-1/2
Body Length (Inch): 1; 1 in	Distance Between Mount Hole To Edge: 0.875 in
Initial End Force: 14 lb	Distance Between Mount Hole Centers (Inch): 1.1300 in; 1-1/8
Distance Between Mount Hole Centers (Decimal Inch): 1.1250	Distance Between Mount Hole & Edge (Decimal Inch): 0.8750
Body Width: 1.5 in	Mounting Slot Length: 0.54 in
Mounting Slot Width: 0.1875 in	Middle End Force (Lb.): 6.35 kg
Body Width (Decimal Inch): 1.5000	Mounting Slot Width (Inch): 3/16; 0.1875 in
Base Thickness (Inch): 0.2813 in	Body Material: Zinc Aluminum Alloy
Stop Material: Steel	UNSPSC Code: 31162900
Country of Origin: UNITED STATES
Stop Head Outside Diameter (Inch): 0.5625 in
Stop Head Outside Diameter (Decimal Inch): 0.5625
Stroke Length: 0.19 in
Stroke Length (Inch): 3/16
Body Length: 1 in
Base Width (Inch): 1-1/2
Body Length (Inch): 1; 1 in
Distance Between Mount Hole To Edge: 0.875 in
Initial End Force: 14 lb
Distance Between Mount Hole Centers (Inch): 1.1300 in; 1-1/8
Distance Between Mount Hole Centers (Decimal Inch): 1.1250
Distance Between Mount Hole & Edge (Decimal Inch): 0.8750
Body Width: 1.5 in
Mounting Slot Length: 0.54 in
Mounting Slot Width: 0.1875 in
Middle End Force (Lb.): 6.35 kg
Body Width (Decimal Inch): 1.5000
Mounting Slot Width (Inch): 3/16; 0.1875 in
Base Thickness (Inch): 0.2813 in
Body Material: Zinc Aluminum Alloy
Stop Material: Steel
UNSPSC Code: 31162900
Country of Origin: UNITED STATES
