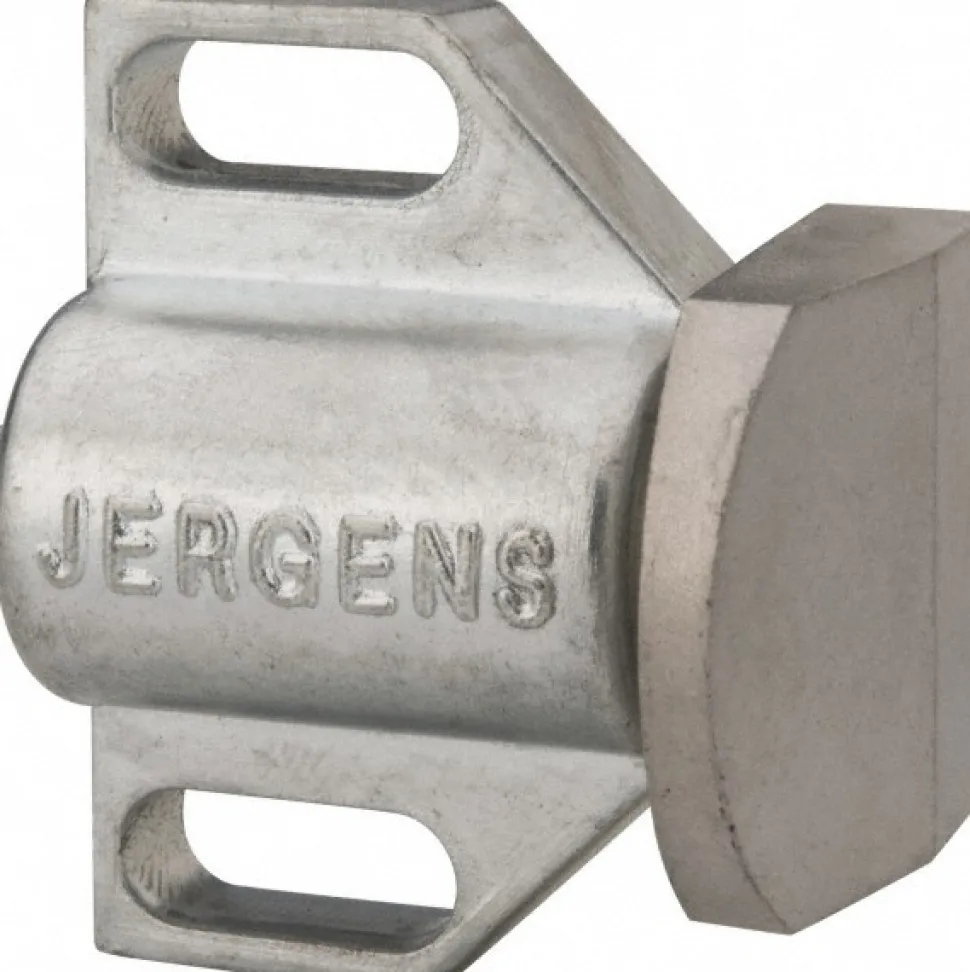

1-1/2″ Body Width x 1″ Body Len, 3/16″ Stroke Len, 1-1/8″ Btw Mt Hole Ctrs, Tangless Square Spring Locating Stop

28,99 $

SKU: SKUwMZSjHBlOq Categories: Clamping, Workholding & Positioning, Locating & Positioning Components, Shop All Products Tag: Jergens Brand: Jergens

Description
Reviews (0)

Specifications

Stroke Length (Inch): 3/16	Body Length: 1 in
Body Length (Decimal Inch): 1 in	Stop Head Height (Inch): 1-1/8
Distance Between Mount Hole Centers (Inch): 1-1/8	Tang Profile: Tangless
Initial End Force: 32 lb	Final End Force: 32 lb
Mounting Slot Length: 0.54 in	Mounting Slot Width: 0.2 in
Middle End Force (kg): 6.35; 6.35 kg	PSC Code: 3419
UNSPSC Code: 27112132	Mounting Slot Width (Decimal Inch): 0.2000; 0.2 in
Base Thickness (Inch): 1/4	Body Material: Zinc Aluminum Alloy
Stop Material: Low Carbon Steel	Country of Origin: UNITED STATES
Stroke Length (Inch): 3/16
Body Length: 1 in
Body Length (Decimal Inch): 1 in
Stop Head Height (Inch): 1-1/8
Distance Between Mount Hole Centers (Inch): 1-1/8
Tang Profile: Tangless
Initial End Force: 32 lb
Final End Force: 32 lb
Mounting Slot Length: 0.54 in
Mounting Slot Width: 0.2 in
Middle End Force (kg): 6.35; 6.35 kg
PSC Code: 3419
UNSPSC Code: 27112132
Mounting Slot Width (Decimal Inch): 0.2000; 0.2 in
Base Thickness (Inch): 1/4
Body Material: Zinc Aluminum Alloy
Stop Material: Low Carbon Steel
Country of Origin: UNITED STATES
