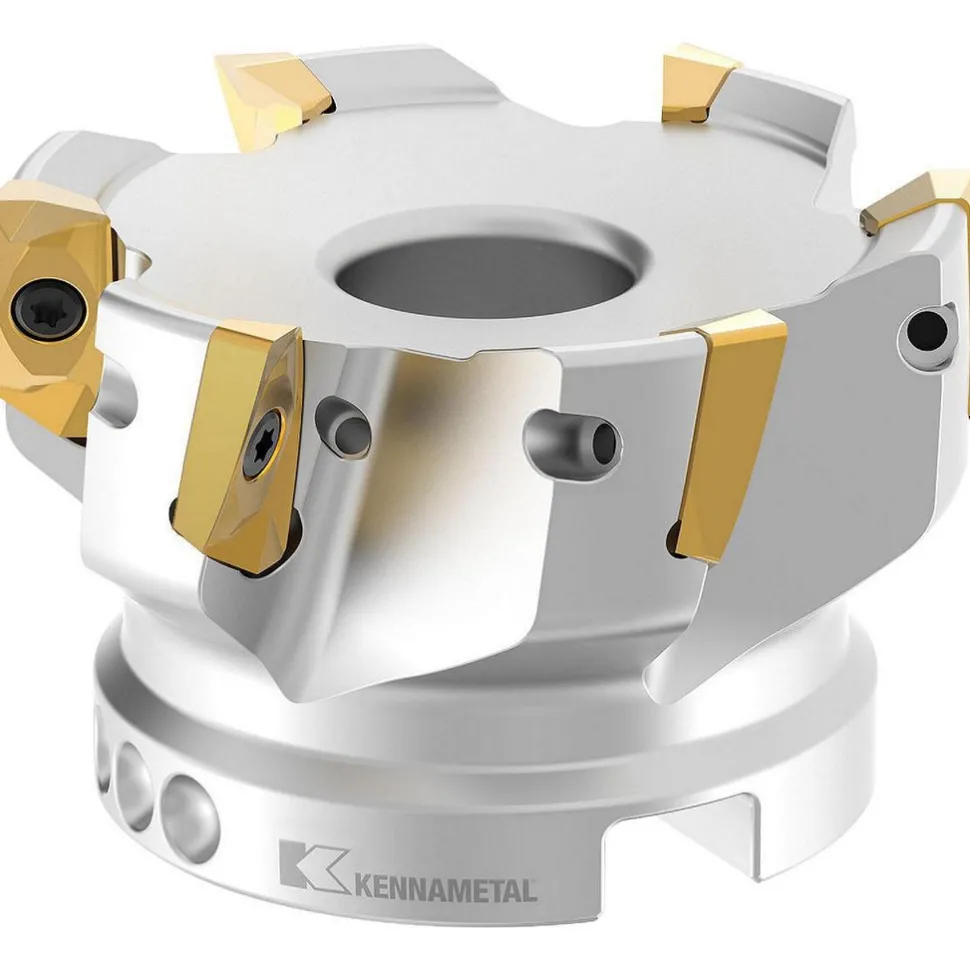

1-1/2″ Cut Dia, 3/4″ Arbor Hole Dia, 14.48mm Max Depth, Indexable Square-Shoulder Face Mill
120,99 $
Specifications
| Maximum Cutting Diameter (Inch): 1-1/2 | Maximum Cutting Diameter (mm): 38.10 |
| Maximum Depth of Cut (mm): 14.48 | Maximum Depth of Cut (Decimal Inch): 0.5700 |
| Arbor Hole Diameter (Inch): 3/4 | Arbor Hole Diameter (Decimal Inch): 0.7500 |
| Compatible Insert Size Code: EP14..; EC14.. | Cutting Direction: Right Hand |
| Insert Holding Method: Screw | Lead Angle: 0/90 |
| Series: Mill 1-14 | Overall Height (mm): 40.00 |
| Overall Height (Decimal Inch): 1.5750 | Keyway Width (Decimal Inch): 0.3300 |
| UNSPSC Code: 27112803 | Coolant Through: Yes |
| Number Of Cutter Inserts: 5 | Number Of Flutes: 5 |
| Country of Origin: Brazil | |
| Maximum Cutting Diameter (Inch): 1-1/2 | |
| Maximum Cutting Diameter (mm): 38.10 | |
| Maximum Depth of Cut (mm): 14.48 | |
| Maximum Depth of Cut (Decimal Inch): 0.5700 | |
| Arbor Hole Diameter (Inch): 3/4 | |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | |
| Compatible Insert Size Code: EP14..; EC14.. | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw | |
| Lead Angle: 0/90 | |
| Series: Mill 1-14 | |
| Overall Height (mm): 40.00 | |
| Overall Height (Decimal Inch): 1.5750 | |
| Keyway Width (Decimal Inch): 0.3300 | |
| UNSPSC Code: 27112803 | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 5 | |
| Number Of Flutes: 5 | |
| Country of Origin: Brazil |
| MSC# | 01032523 |
| Mfr# | 2624255 |
| Big Book# | 711 |
