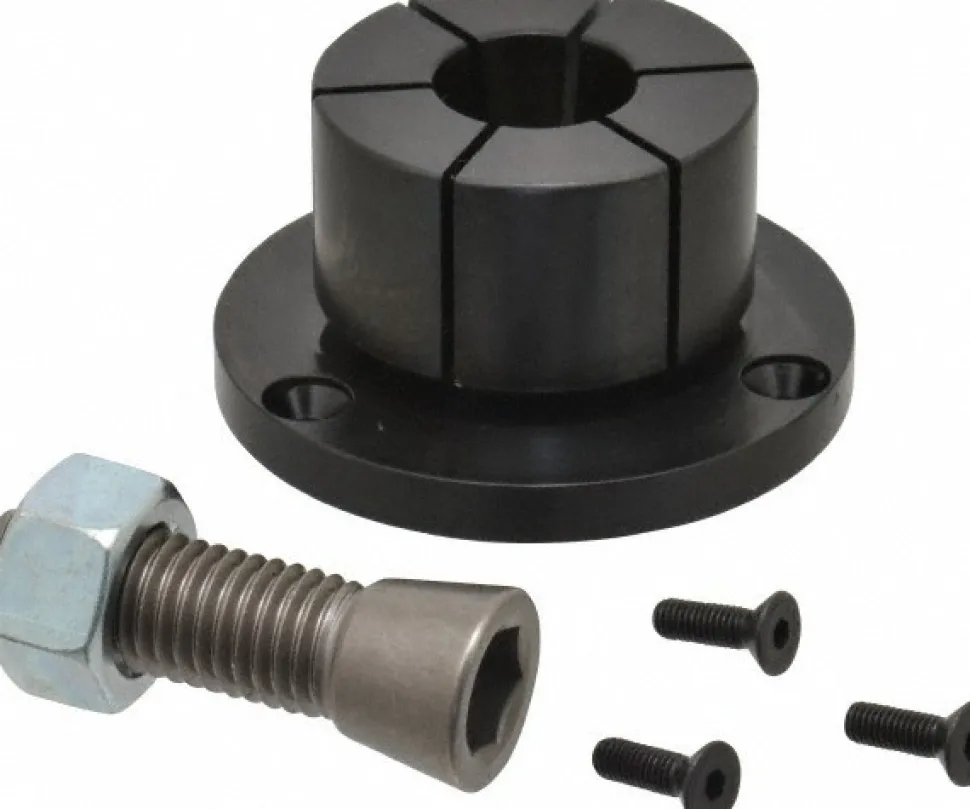

1.15 to 2.03″ Expansion Dia, 10,000 Lb Holding Force, 10-32 Mounting Screw, 5/8-11 Center Screw, Mild Steel ID Expansion Clamps
Original price was: 102,00 $.67,89 $Current price is: 67,89 $.
Specifications
| Torque (Ft/Lb): 224.0000 | Holding Force (Lb.): 10000.00 |
| Holding Force: 10000 lb | Flange Diameter (Decimal Inch): 2.9720 |
| Maximum Expansion Diameter: 2.03 in | Maximum Expansion Diameter (Decimal Inch): 2.0300 |
| Minimum Expansion Diameter (Decimal Inch): 1.1500 | Minimum Expansion Diameter: 1.15 in |
| Flange Thickness (Decimal Inch): 0.3100 | Expansion Height (Decimal Inch): 1.0600 |
| Height Above Flange (Decimal Inch): 1.2500 | Overall Height (Decimal Inch): 1.5600 |
| Center Screw Thread Size: 5/8-11 | Mounting Screw Thread Size: 10-32 |
| Material: Mild Steel | Mount Hole Diameter (Decimal Inch): 2.5150 |
| Number Of Mount Holes: 3 | Thread Length Below Base (Decimal Inch): 0.7900 |
| UNSPSC Code: 27112100 | Country of Origin: UNITED STATES |
| Torque (Ft/Lb): 224.0000 | |
| Holding Force (Lb.): 10000.00 | |
| Holding Force: 10000 lb | |
| Flange Diameter (Decimal Inch): 2.9720 | |
| Maximum Expansion Diameter: 2.03 in | |
| Maximum Expansion Diameter (Decimal Inch): 2.0300 | |
| Minimum Expansion Diameter (Decimal Inch): 1.1500 | |
| Minimum Expansion Diameter: 1.15 in | |
| Flange Thickness (Decimal Inch): 0.3100 | |
| Expansion Height (Decimal Inch): 1.0600 | |
| Height Above Flange (Decimal Inch): 1.2500 | |
| Overall Height (Decimal Inch): 1.5600 | |
| Center Screw Thread Size: 5/8-11 | |
| Mounting Screw Thread Size: 10-32 | |
| Material: Mild Steel | |
| Mount Hole Diameter (Decimal Inch): 2.5150 | |
| Number Of Mount Holes: 3 | |
| Thread Length Below Base (Decimal Inch): 0.7900 | |
| UNSPSC Code: 27112100 | |
| Country of Origin: UNITED STATES |
| MSC# | 88904933 |
| Mfr# | 31350 |
| Big Book# | 1330 |
