Sale!

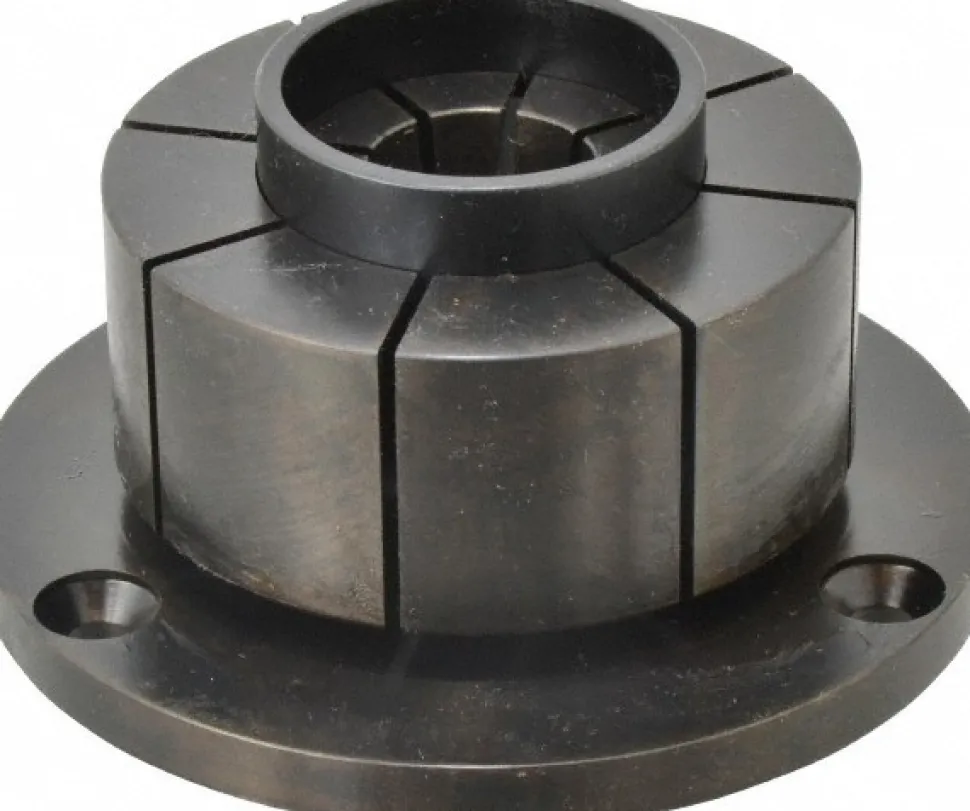

1.15 to 3.06″ Expansion Dia, 10,000 Lb Holding Force, 1/4-20 Mounting Screw, 5/8-11 Center Screw, Mild Steel ID Expansion Clamps
Original price was: 184,00 $.121,99 $Current price is: 121,99 $.
Specifications
| Torque (Ft/Lb): 224.0000 | Holding Force (Lb.): 10000.00 |
| Holding Force: 10000 lb | Flange Diameter (Decimal Inch): 4.2320 |
| Maximum Expansion Diameter: 3.06 in | Maximum Expansion Diameter (Decimal Inch): 3.0600 |
| Minimum Expansion Diameter (Decimal Inch): 1.1500 | Minimum Expansion Diameter: 1.15 in |
| Flange Thickness (Decimal Inch): 0.3100 | Expansion Height (Decimal Inch): 1.2700 |
| Height Above Flange (Decimal Inch): 1.4800 | Overall Height (Decimal Inch): 1.7900 |
| Center Screw Thread Size: 5/8-11 | Mounting Screw Thread Size: 1/4-20 |
| Material: Mild Steel | Mount Hole Diameter (Decimal Inch): 3.6460 |
| Number Of Mount Holes: 3 | Thread Length Below Base (Decimal Inch): 0.7900 |
| Features: Locking Ring Provided to Ensure Segments Remain Rigid | UNSPSC Code: 27112100 |
| Country of Origin: UNITED STATES | |
| Torque (Ft/Lb): 224.0000 | |
| Holding Force (Lb.): 10000.00 | |
| Holding Force: 10000 lb | |
| Flange Diameter (Decimal Inch): 4.2320 | |
| Maximum Expansion Diameter: 3.06 in | |
| Maximum Expansion Diameter (Decimal Inch): 3.0600 | |
| Minimum Expansion Diameter (Decimal Inch): 1.1500 | |
| Minimum Expansion Diameter: 1.15 in | |
| Flange Thickness (Decimal Inch): 0.3100 | |
| Expansion Height (Decimal Inch): 1.2700 | |
| Height Above Flange (Decimal Inch): 1.4800 | |
| Overall Height (Decimal Inch): 1.7900 | |
| Center Screw Thread Size: 5/8-11 | |
| Mounting Screw Thread Size: 1/4-20 | |
| Material: Mild Steel | |
| Mount Hole Diameter (Decimal Inch): 3.6460 | |
| Number Of Mount Holes: 3 | |
| Thread Length Below Base (Decimal Inch): 0.7900 | |
| Features: Locking Ring Provided to Ensure Segments Remain Rigid | |
| UNSPSC Code: 27112100 | |
| Country of Origin: UNITED STATES |
| MSC# | 72453855 |
| Mfr# | 31400 |
| Big Book# | 1330 |
