Sale!

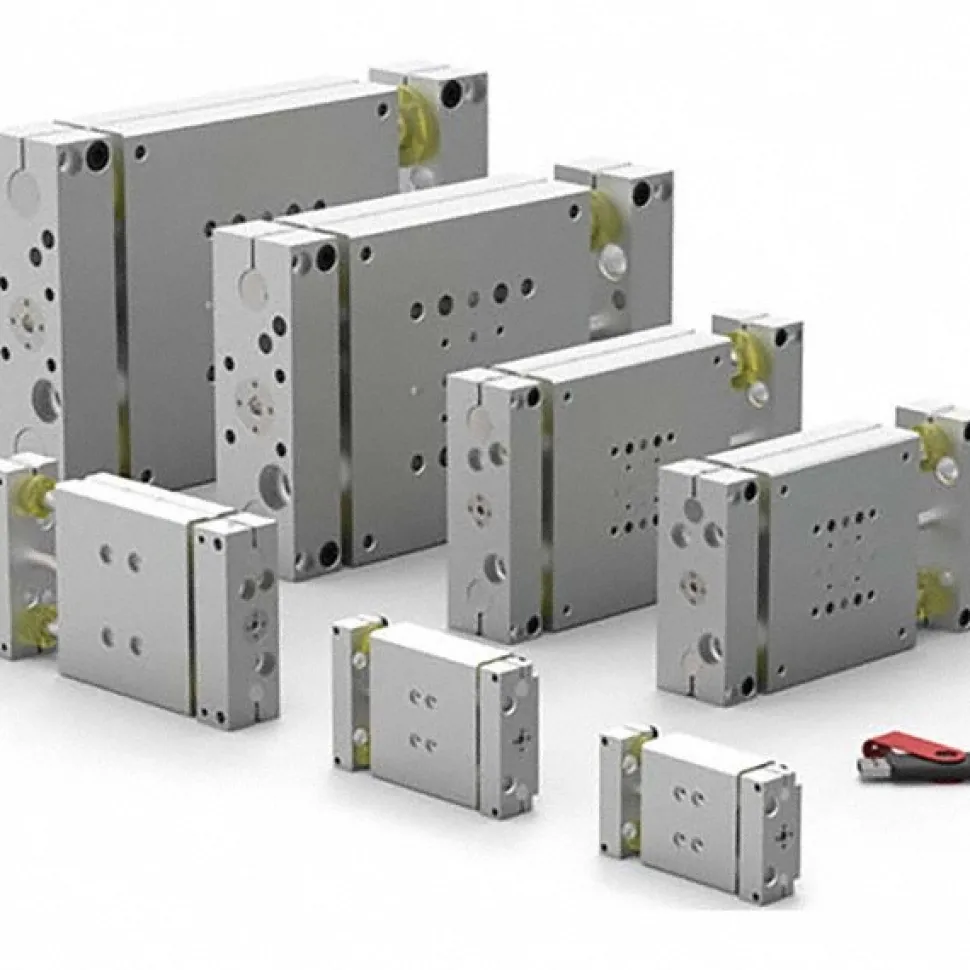

1-3/4″ Stroke, 0.315″ Shaft Dia, Double-Acting Cylinder, Pneumatic Slide
Original price was: 1 396,00 $.126,99 $Current price is: 126,99 $.
Specifications
| Product Type: Slide | Overall Length (mm): 138.18 |
| Overall Length (Decimal Inch): 5.4400 | Slide Type: Base Slide |
| Series: DLB | Bearing Type: Composite Bushing |
| Cylinder Type: Double-Acting | Overall Width (mm): 62.74 |
| Overall Width (Decimal Inch): 2.4700 | Mounting Orientation: Vertical; Horizontal |
| Number of Valve Positions: 2 | Seal Material: Buna-N |
| Minimum Operating Temperature (F): -30 | Minimum Operating Temperature (C): -35 |
| Maximum Operating Temperature (C): 80 | Maximum Operating Temperature (F): 180 |
| Minimum Operating Pressure (bar): 3 | Minimum Operating Pressure (psi): 40 |
| Maximum Operating Pressure (psi): 100 | Stroke (Inch): 1-3/4 |
| Horizontal Load Capacity (kg): 2.30 | Horizontal Load Capacity (Lb.): 5 |
| Bore Diameter (Inch): 0.5630 | Bore Diameter (mm): 14.30 |
| Special Features: Repairable Cylinder; Compact for Extremely Small Spaces | Shaft Diameter (mm): 8 |
| Shaft Diameter (Decimal Inch): 0.3150 | UNSPSC Code: 40141633 |
| Product Type: Slide | |
| Overall Length (mm): 138.18 | |
| Overall Length (Decimal Inch): 5.4400 | |
| Slide Type: Base Slide | |
| Series: DLB | |
| Bearing Type: Composite Bushing | |
| Cylinder Type: Double-Acting | |
| Overall Width (mm): 62.74 | |
| Overall Width (Decimal Inch): 2.4700 | |
| Mounting Orientation: Vertical; Horizontal | |
| Number of Valve Positions: 2 | |
| Seal Material: Buna-N | |
| Minimum Operating Temperature (F): -30 | |
| Minimum Operating Temperature (C): -35 | |
| Maximum Operating Temperature (C): 80 | |
| Maximum Operating Temperature (F): 180 | |
| Minimum Operating Pressure (bar): 3 | |
| Minimum Operating Pressure (psi): 40 | |
| Maximum Operating Pressure (psi): 100 | |
| Stroke (Inch): 1-3/4 | |
| Horizontal Load Capacity (kg): 2.30 | |
| Horizontal Load Capacity (Lb.): 5 | |
| Bore Diameter (Inch): 0.5630 | |
| Bore Diameter (mm): 14.30 | |
| Special Features: Repairable Cylinder; Compact for Extremely Small Spaces | |
| Shaft Diameter (mm): 8 | |
| Shaft Diameter (Decimal Inch): 0.3150 | |
| UNSPSC Code: 40141633 |
| MSC# | 68421262 |
| Mfr# | DLB-08-B-C-1.75 |
