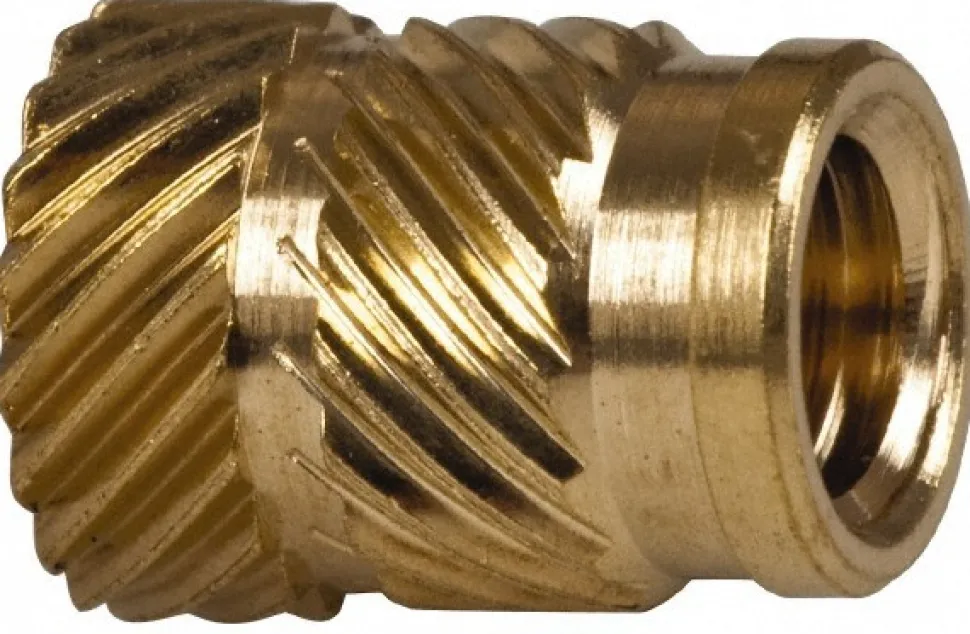

1/4″ Drill, 10 32 UNF, 0.278″ Dia, Brass Unheaded Heat Installed Threaded Insert

Original price was: 24,00 $.Current price is: 18,89 $.

SKU: SKUwLcmdVM9uD Categories: Fasteners, Shop All Products, Threaded Inserts, Rivet Nuts & Weld Nuts Tag: E-Z LOK Brand: E-Z LOK

Description
Reviews (0)

Specifications

Product Type: Unheaded	Material: Brass
Thread Size: #10-32	Minimum Grip: 0.102 in
Hole Diameter (Decimal Inch): 0.2520 in	Pilot Diameter: 0.277 in
Overall Length: 0.375 in	Insert Diameter: 0.278 in
Thread Size (Inch): #10-32	Overall Length (Decimal Inch): 0.3750
Minimum Wall Thickness: 0.102	Pilot Diameter (Decimal Inch): 0.2770
Minimum Grip (Decimal Inch): 0.1020	Minimum Wall Thickness (Decimal Inch): 0.1020
Insert Diameter (Decimal Inch): 0.2780	Drill Size (Inch): 1/4
Thread Standard: UNF	UNSPSC Code: 31162802
Country of Origin: Taiwan
Product Type: Unheaded
Material: Brass
Thread Size: #10-32
Minimum Grip: 0.102 in
Hole Diameter (Decimal Inch): 0.2520 in
Pilot Diameter: 0.277 in
Overall Length: 0.375 in
Insert Diameter: 0.278 in
Thread Size (Inch): #10-32
Overall Length (Decimal Inch): 0.3750
Minimum Wall Thickness: 0.102
Pilot Diameter (Decimal Inch): 0.2770
Minimum Grip (Decimal Inch): 0.1020
Minimum Wall Thickness (Decimal Inch): 0.1020
Insert Diameter (Decimal Inch): 0.2780
Drill Size (Inch): 1/4
Thread Standard: UNF
UNSPSC Code: 31162802
Country of Origin: Taiwan
