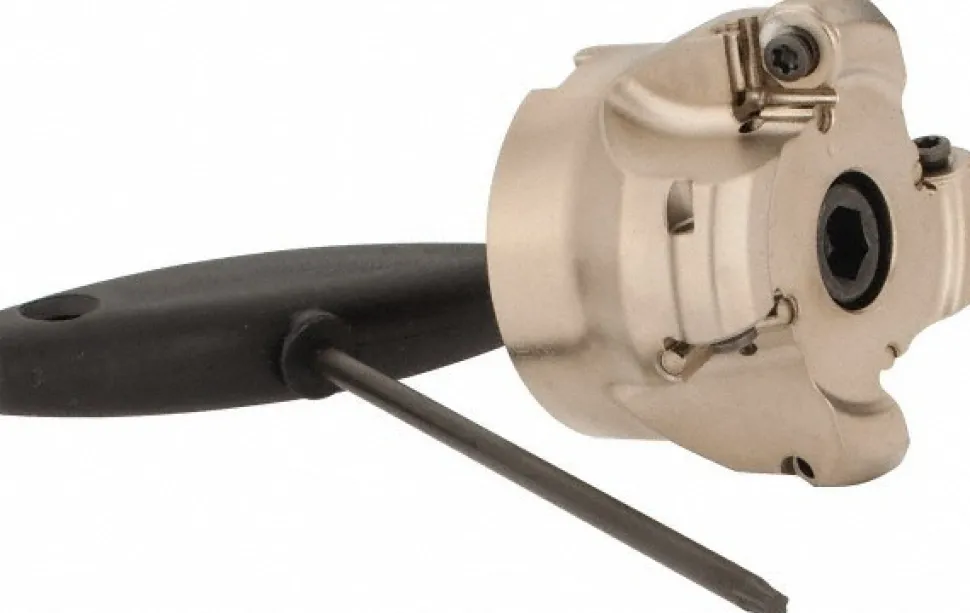

1.97″ Cut Dia, 3/4″ Arbor Hole, 0.118″ Max Depth of Cut, 40° Indexable Chamfer & Angle Face Mill
138,99 $

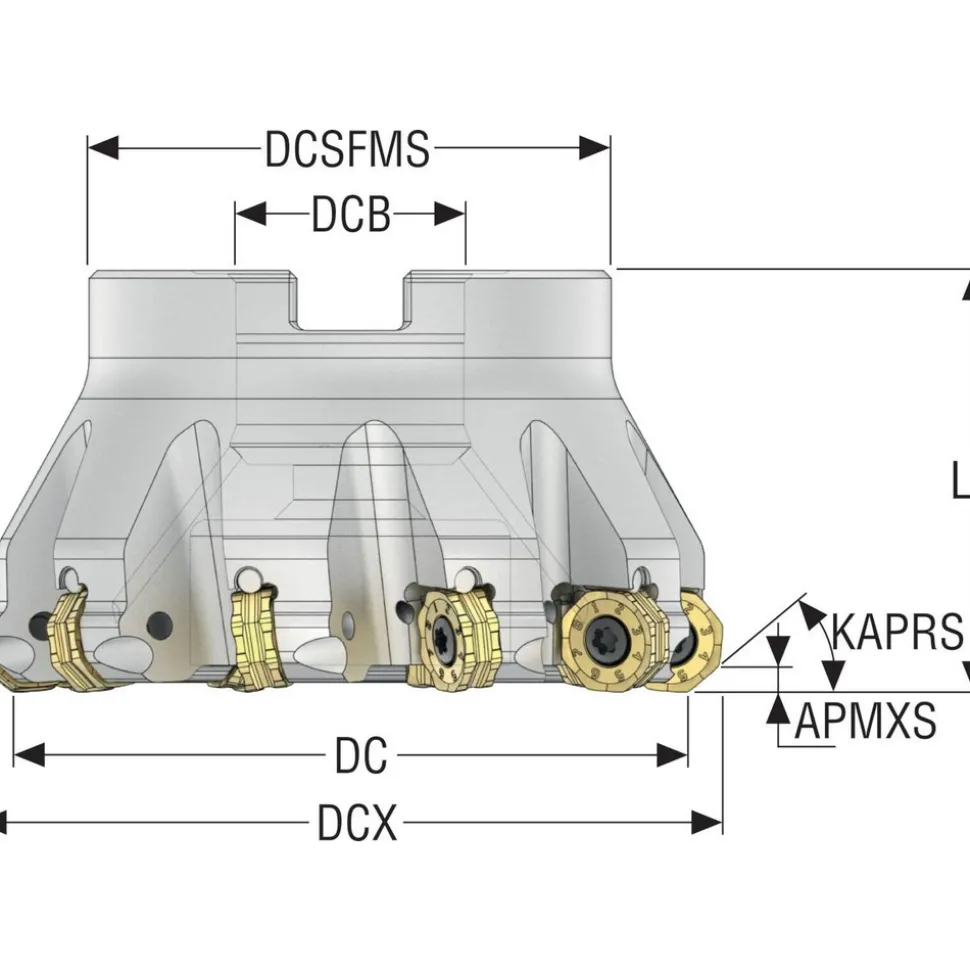

Specifications
| Minimum Cutting Diameter (Decimal Inch): 1.9700 | Maximum Cutting Diameter (Decimal Inch): 2.3000 |
| Maximum Depth of Cut (Decimal Inch): 0.1180 | Arbor Hole Diameter (Decimal Inch): 0.7500 |
| Arbor Hole Diameter (Inch): 3/4 | Compatible Insert Size Code: ON.U05 |
| Cutter Style: R220.48 | Cutting Direction: Right Hand |
| Insert Holding Method: Screw | Rake: Negative |
| Rake Angle: -8 | Series: Double Octo 05 |
| Hub Diameter (Decimal Inch): 1.8500 | Keyway Width (mm): 8.20 |
| Keyway Width (Decimal Inch): 0.3200 | Overall Height (Decimal Inch): 1.5750 |
| Maximum Body Diameter (Decimal Inch): 2.3000 | Pitch Type: Normal |
| Maximum RPM: 14400 | Tool Application: Facing |
| Counterbore Diameter (Decimal Inch): 0.3200 | Complete Insert Compatibility: ONMU 05; ONEU 05 |
| Toolholder Material: Steel | Manufacturers Catalog Number: R220.48-02.00-05-05SA |
| Number Of Cutter Inserts: 5 | Coolant Through: Yes |
| Number Of Flutes: 5 | UNSPSC Code: 23291600 |
| Country of Origin: India | |
| Minimum Cutting Diameter (Decimal Inch): 1.9700 | |
| Maximum Cutting Diameter (Decimal Inch): 2.3000 | |
| Maximum Depth of Cut (Decimal Inch): 0.1180 | |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | |
| Arbor Hole Diameter (Inch): 3/4 | |
| Compatible Insert Size Code: ON.U05 | |
| Cutter Style: R220.48 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw | |
| Rake: Negative | |
| Rake Angle: -8 | |
| Series: Double Octo 05 | |
| Hub Diameter (Decimal Inch): 1.8500 | |
| Keyway Width (mm): 8.20 | |
| Keyway Width (Decimal Inch): 0.3200 | |
| Overall Height (Decimal Inch): 1.5750 | |
| Maximum Body Diameter (Decimal Inch): 2.3000 | |
| Pitch Type: Normal | |
| Maximum RPM: 14400 | |
| Tool Application: Facing | |
| Counterbore Diameter (Decimal Inch): 0.3200 | |
| Complete Insert Compatibility: ONMU 05; ONEU 05 | |
| Toolholder Material: Steel | |
| Manufacturers Catalog Number: R220.48-02.00-05-05SA | |
| Number Of Cutter Inserts: 5 | |
| Coolant Through: Yes | |
| Number Of Flutes: 5 | |
| UNSPSC Code: 23291600 | |
| Country of Origin: India |
| MSC# | 65934218 |
| Mfr# | 02810096 |
| Big Book# | 673 |
