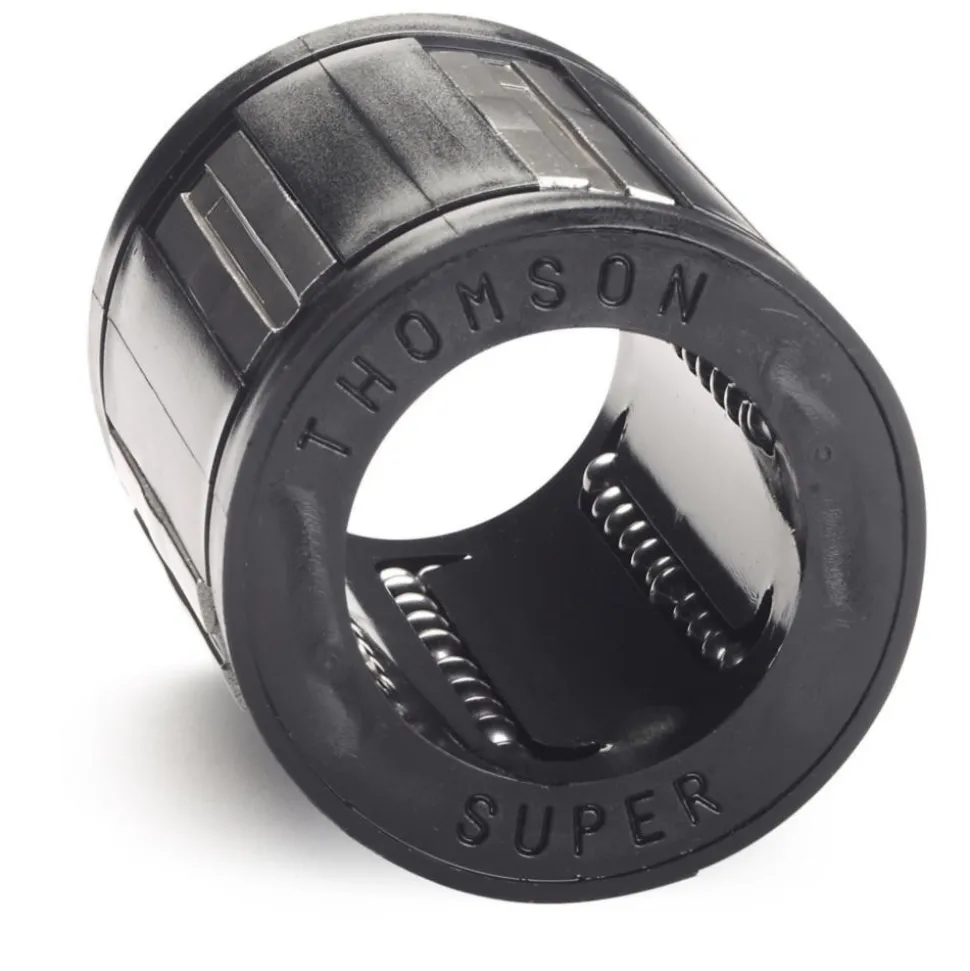

1″ ID, 1,050 Lb Dynamic Load Capacity, Closed Linear Bearing
Original price was: 134,00 $.88,99 $Current price is: 88,99 $.
Specifications
| Bearing Type: Super Ball Bushing | Bearing Style: Closed |
| Inside Diameter (Decimal Inch): 1.0000 | Outside Diameter (Decimal Inch): 1.5625 |
| Outside Diameter (Inch): 1-9/16 | Bore Diameter (mm): 25.40 |
| Bore Diameter (Decimal Inch): 1.0000 | Dynamic Load Capacity (Lb.): 1050 |
| Material: Engineered Polymer (Retainer) | Bore Type: Round |
| Alignment Style: Self | Open Number of Ball Circuits.: 5 |
| Closed Dynamic Load Capacity: 1050.000 | Overall Length (Decimal Inch): 2.2300 |
| Open Dynamic Load Capacity (Lb.): 780 | Minimum Slot Width: 0.560 |
| Closed Number of Ball Circuits: 6 | Distance Between Retain Ring Grooves: 1.884;1.864 |
| Retain Ring Groove Minimum: 0.070 | Nominal Size (Decimal Inch): 2.2500 |
| UNSPSC Code: 31171506 | Country of Origin: Mexico |
| Bearing Type: Super Ball Bushing | |
| Bearing Style: Closed | |
| Inside Diameter (Decimal Inch): 1.0000 | |
| Outside Diameter (Decimal Inch): 1.5625 | |
| Outside Diameter (Inch): 1-9/16 | |
| Bore Diameter (mm): 25.40 | |
| Bore Diameter (Decimal Inch): 1.0000 | |
| Dynamic Load Capacity (Lb.): 1050 | |
| Material: Engineered Polymer (Retainer) | |
| Bore Type: Round | |
| Alignment Style: Self | |
| Open Number of Ball Circuits.: 5 | |
| Closed Dynamic Load Capacity: 1050.000 | |
| Overall Length (Decimal Inch): 2.2300 | |
| Open Dynamic Load Capacity (Lb.): 780 | |
| Minimum Slot Width: 0.560 | |
| Closed Number of Ball Circuits: 6 | |
| Distance Between Retain Ring Grooves: 1.884;1.864 | |
| Retain Ring Groove Minimum: 0.070 | |
| Nominal Size (Decimal Inch): 2.2500 | |
| UNSPSC Code: 31171506 | |
| Country of Origin: Mexico |
| MSC# | 35528066 |
| Mfr# | SUPER16 |
