Sale!

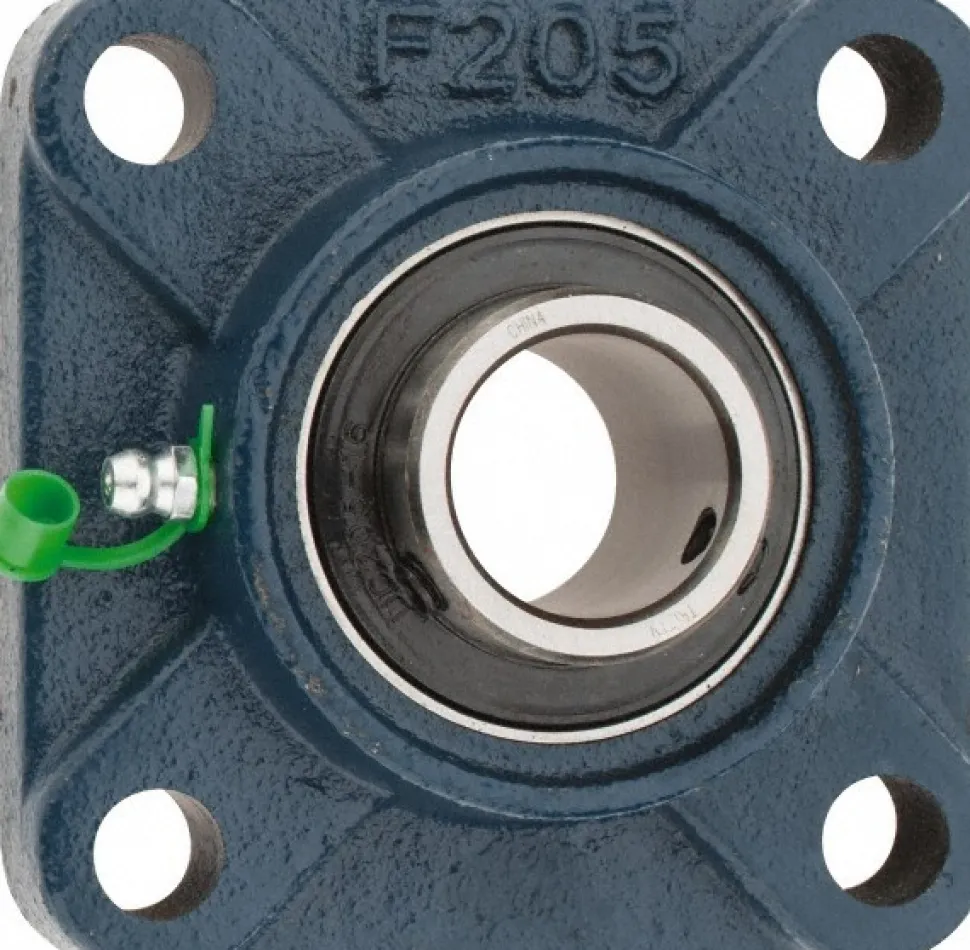

1″ ID, 3.74″ OAL x 1.41″ OAH 4-Bolt Flange

Original price was: 24,00 $.Current price is: 16,99 $.

Specifications

Bearing Insert Type: Wide Inner Ring	Type: 4-Bolt Flange
Flange Mount Type: 4-Bolt Flange	Inside Diameter (Inch): 1
Inside Diameter (Decimal Inch): 1.0000	Bolt Hole (Center-to-center): 2.75 in
Bolt Size (Inch): 3/8	Lubrication: Required
Housing Material: Iron	Overall Length (Decimal Inch): 3.7400
Overall Height (Decimal Inch): 1.4100	Lock Type: Set Screw Lock
Static Load Capacity: 1765.00	Dynamic Load Capacity (Lb.): 3147.000
Base-to-center Distance: 16 mm	Series: UCF
Distance Between Base And Center (Decimal Inch): 0.6300	Insert Material: 52100 Steel
Metric Bolt Size: 10.0000	UNSPSC Code: 31171500
Width (Decimal Inch – 4 Decimals): 3.7400
Bearing Insert Type: Wide Inner Ring
Type: 4-Bolt Flange
Flange Mount Type: 4-Bolt Flange
Inside Diameter (Inch): 1
Inside Diameter (Decimal Inch): 1.0000
Bolt Hole (Center-to-center): 2.75 in
Bolt Size (Inch): 3/8
Lubrication: Required
Housing Material: Iron
Overall Length (Decimal Inch): 3.7400
Overall Height (Decimal Inch): 1.4100
Lock Type: Set Screw Lock
Static Load Capacity: 1765.00
Dynamic Load Capacity (Lb.): 3147.000
Base-to-center Distance: 16 mm
Series: UCF
Distance Between Base And Center (Decimal Inch): 0.6300
Insert Material: 52100 Steel
Metric Bolt Size: 10.0000
UNSPSC Code: 31171500
Width (Decimal Inch – 4 Decimals): 3.7400
