Sale!

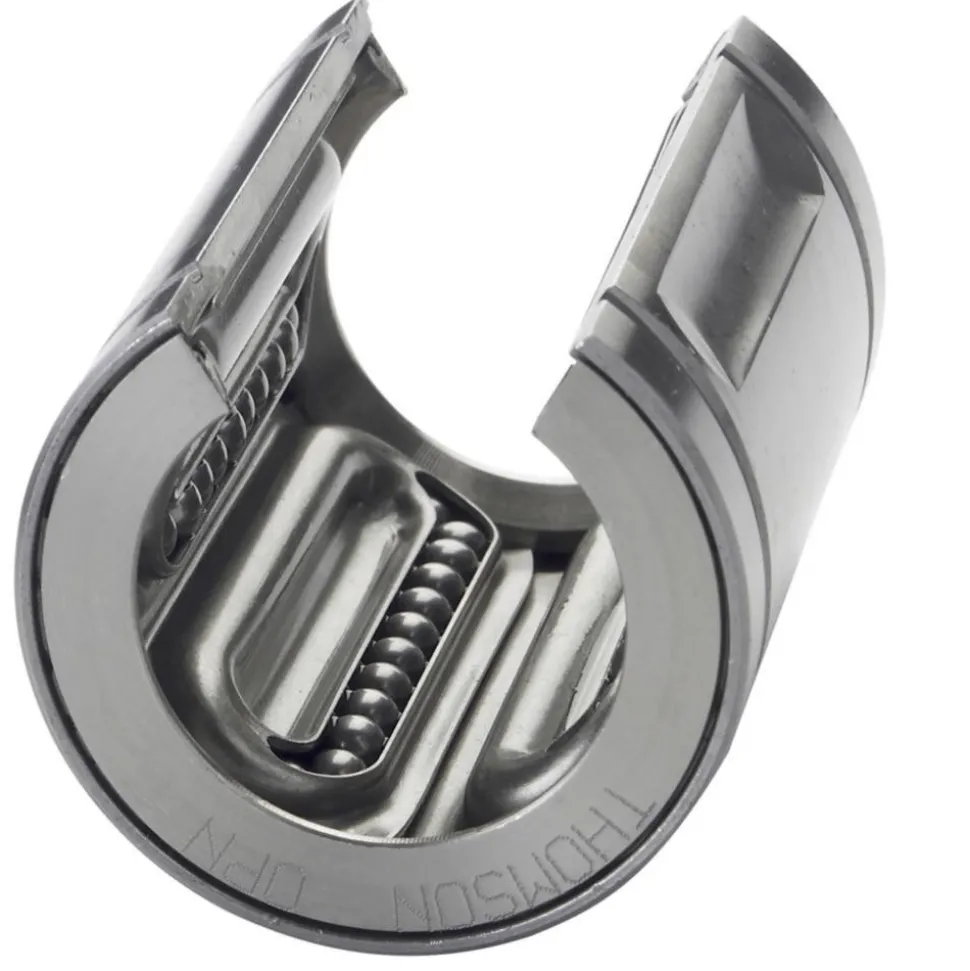

1″ Inside Dia, 350 Lbs. Dynamic Capacity, Open Linear Bearing
Original price was: 190,00 $.121,99 $Current price is: 121,99 $.
Specifications
| Bearing Type: Ball Bushing | Bearing Style: Open |
| Inside Diameter (Decimal Inch): 1.0000 | Outside Diameter (Decimal Inch): 1.5625 |
| Outside Diameter (Inch): 1-9/16 | Outside Diameter (mm): 39.68 |
| Bore Diameter (mm): 25.40 | Bore Diameter (Decimal Inch): 1.0000 |
| Dynamic Load Capacity (Lb.): 350 | Material: Steel |
| Bore Type: Round | Alignment Style: Fixed |
| Open Number of Ball Circuits.: 4 | Closed Dynamic Load Capacity: 350.000 |
| Overall Length (Decimal Inch): 2.2350 | Open Dynamic Load Capacity (Lb.): 240 |
| Minimum Slot Width: 0.560 | Closed Number of Ball Circuits: 5 |
| Distance Between Retain Ring Grooves: 1.759;1.741 | Retain Ring Groove Minimum: 0.068 |
| Nominal Size (Decimal Inch): 2.2500 | UNSPSC Code: 31171506 |
| Country of Origin: UNITED STATES | |
| Bearing Type: Ball Bushing | |
| Bearing Style: Open | |
| Inside Diameter (Decimal Inch): 1.0000 | |
| Outside Diameter (Decimal Inch): 1.5625 | |
| Outside Diameter (Inch): 1-9/16 | |
| Outside Diameter (mm): 39.68 | |
| Bore Diameter (mm): 25.40 | |
| Bore Diameter (Decimal Inch): 1.0000 | |
| Dynamic Load Capacity (Lb.): 350 | |
| Material: Steel | |
| Bore Type: Round | |
| Alignment Style: Fixed | |
| Open Number of Ball Circuits.: 4 | |
| Closed Dynamic Load Capacity: 350.000 | |
| Overall Length (Decimal Inch): 2.2350 | |
| Open Dynamic Load Capacity (Lb.): 240 | |
| Minimum Slot Width: 0.560 | |
| Closed Number of Ball Circuits: 5 | |
| Distance Between Retain Ring Grooves: 1.759;1.741 | |
| Retain Ring Groove Minimum: 0.068 | |
| Nominal Size (Decimal Inch): 2.2500 | |
| UNSPSC Code: 31171506 | |
| Country of Origin: UNITED STATES |
| MSC# | 35528421 |
| Mfr# | OPN162536 |
| Big Book# | 3822 |
