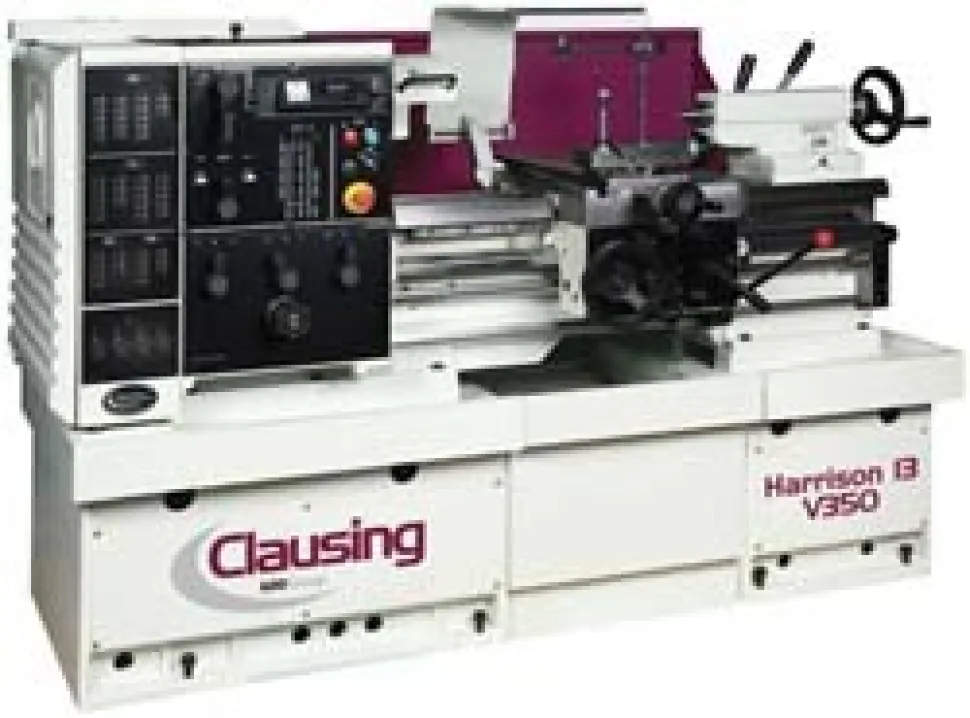

13-3/4″ x 25-1/4″ Engine Lathe: Frequency, 10 hp, 230 V
136,99 $
Specifications
| Lathe Type: Toolroom | Phase: Three |
| Voltage: 230V | Swing (Inch): 13-3/4 |
| Bed Width (Inch): 12.5197 | Distance Between Centers (Inch): 25-1/4 |
| Spindle Speed Control: Frequency | Spindle Bore Diameter (Inch): 1-5/8 |
| Cross Slide Travel (Inch): 9-7/8 | Cross Slide Travel (mm): 250.83 |
| Gap Length (Decimal Inch): 6.5000 | Gap Length (mm): 165.10 |
| Maximum Metric Pitch (Decimal Inch): 0.5512 | Minimum Spindle Speed: 17 |
| Spindle Nose Designation: D1-4 | Maximum Spindle Speed (RPM): 3250 |
| Overall Depth (Inch): 53 | Overall Depth (Decimal Inch): 53.0000 |
| Overall Height (Inch): 65 | Overall Length (Inch): 80 |
| Overall Length (Decimal Inch): 80.0000 | Max. Longitudinal Feed Rate Per Revolution (mm): 30.00 |
| Minimum Metric Pitch (Decimal Inch): 0.0079 | Cross Slide Travel (Decimal Inch): 9.8750 |
| Number of Inch Threads: 56 | Number of Metric Threads: 51 |
| Tailstock Travel (mm): 144.46 | Spindle Taper Size: 4MT |
| Tailstock Taper Size: 4MT | Tailstock Travel (Decimal Inch): 5.6875 |
| Overall Height (Decimal Inch): 65.0000 | Top Slide Travel (Decimal Inch): 4.0000 |
| Top Slide Travel (mm): 101.60 | Maximum Cross Feed Rate Per Revolution (mm): 1.22 |
| UNSPSC Code: 23242300 | Maximum Threads Per Inch: 56 |
| Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0181 | Minimum Threads Per Inch: 2 |
| Swing Over Cross Slide (mm): 196.85 | Max. Longitudinal Feed Per Rev. (Decimal Inch): 1.1811 |
| Min. Cross Feed Rate Per Revolution (Decimal Inch): 0.000700 | Max. Cross Feed Rate Per Revolution (Decimal Inch): 0.0480 |
| Swing Over Cross Slide (Decimal Inch): 7.7500 | Swing Over Cross Slide (Inch): 7-3/4 |
| Series: Harrison | Swing Over Gap (Inch): 21 |
| Swing Over Gap (Decimal Inch): 21.0000 | Swing Over Gap: 21 in; 533.4 mm; 21.0 in |
| Country of Origin: Taiwan | |
| Lathe Type: Toolroom | |
| Phase: Three | |
| Voltage: 230V | |
| Swing (Inch): 13-3/4 | |
| Bed Width (Inch): 12.5197 | |
| Distance Between Centers (Inch): 25-1/4 | |
| Spindle Speed Control: Frequency | |
| Spindle Bore Diameter (Inch): 1-5/8 | |
| Cross Slide Travel (Inch): 9-7/8 | |
| Cross Slide Travel (mm): 250.83 | |
| Gap Length (Decimal Inch): 6.5000 | |
| Gap Length (mm): 165.10 | |
| Maximum Metric Pitch (Decimal Inch): 0.5512 | |
| Minimum Spindle Speed: 17 | |
| Spindle Nose Designation: D1-4 | |
| Maximum Spindle Speed (RPM): 3250 | |
| Overall Depth (Inch): 53 | |
| Overall Depth (Decimal Inch): 53.0000 | |
| Overall Height (Inch): 65 | |
| Overall Length (Inch): 80 | |
| Overall Length (Decimal Inch): 80.0000 | |
| Max. Longitudinal Feed Rate Per Revolution (mm): 30.00 | |
| Minimum Metric Pitch (Decimal Inch): 0.0079 | |
| Cross Slide Travel (Decimal Inch): 9.8750 | |
| Number of Inch Threads: 56 | |
| Number of Metric Threads: 51 | |
| Tailstock Travel (mm): 144.46 | |
| Spindle Taper Size: 4MT | |
| Tailstock Taper Size: 4MT | |
| Tailstock Travel (Decimal Inch): 5.6875 | |
| Overall Height (Decimal Inch): 65.0000 | |
| Top Slide Travel (Decimal Inch): 4.0000 | |
| Top Slide Travel (mm): 101.60 | |
| Maximum Cross Feed Rate Per Revolution (mm): 1.22 | |
| UNSPSC Code: 23242300 | |
| Maximum Threads Per Inch: 56 | |
| Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0181 | |
| Minimum Threads Per Inch: 2 | |
| Swing Over Cross Slide (mm): 196.85 | |
| Max. Longitudinal Feed Per Rev. (Decimal Inch): 1.1811 | |
| Min. Cross Feed Rate Per Revolution (Decimal Inch): 0.000700 | |
| Max. Cross Feed Rate Per Revolution (Decimal Inch): 0.0480 | |
| Swing Over Cross Slide (Decimal Inch): 7.7500 | |
| Swing Over Cross Slide (Inch): 7-3/4 | |
| Series: Harrison | |
| Swing Over Gap (Inch): 21 | |
| Swing Over Gap (Decimal Inch): 21.0000 | |
| Swing Over Gap: 21 in; 533.4 mm; 21.0 in | |
| Country of Origin: Taiwan |
| MSC# | 53435772 |
| Mfr# | V350-EW |
| Big Book# | 1539 |
