Sale!

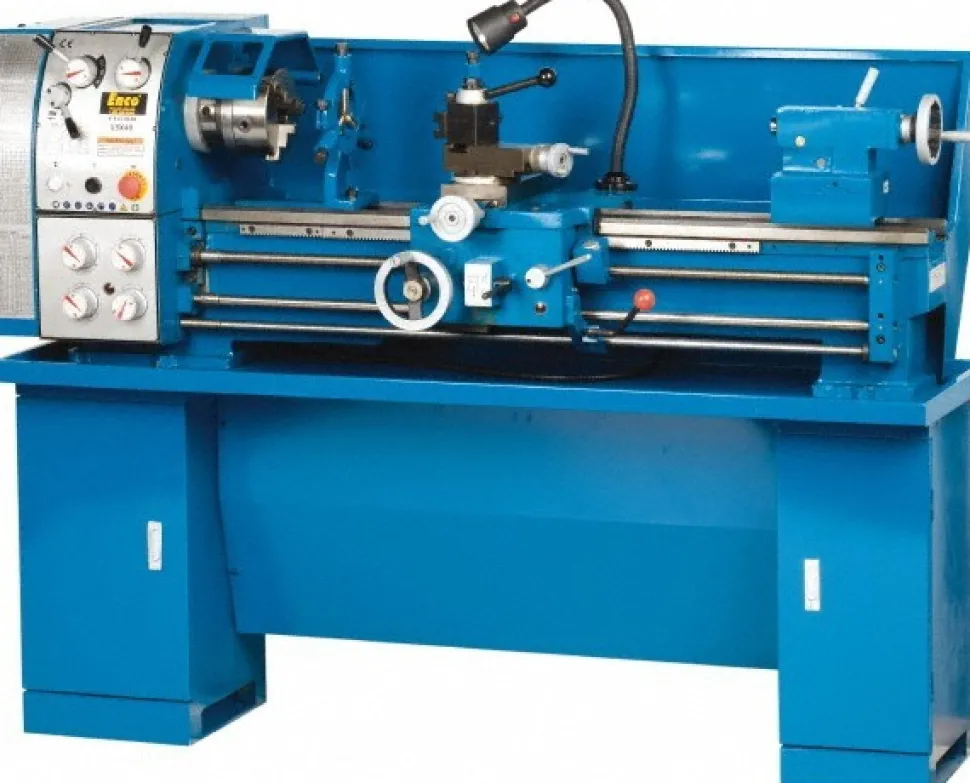

13″ x 40″ Bench Lathe: Geared Head, 110/220 V
Original price was: 9 516,00 $.132,89 $Current price is: 132,89 $.
Specifications
| Lathe Type: Toolroom | Phase: Single |
| Voltage: 110/220V | Swing (Inch): 13 |
| Distance Between Centers (Inch): 40 | Spindle Speed Control: Geared Head |
| Spindle Bore Diameter (Inch): 1-1/2 | Spindle Bore Diameter (mm): 38.00 |
| Cross Slide Travel (Inch): 5-1/8 | Cross Slide Travel (mm): 130.00 |
| Gap Length (Decimal Inch): 9.0000 | Bed Width (Inch): 7-1/8 |
| Gap Length (mm): 229.00 | Maximum Metric Pitch (Decimal Inch): 7.0000 |
| Overall Length (mm): 1676.00 | Minimum Spindle Speed: 65 |
| Spindle Nose Designation: D1-4 | Maximum Spindle Speed (RPM): 1810 |
| Overall Depth (Inch): 29-1/2 | Overall Depth (Decimal Inch): 29.5000 |
| Overall Depth (Mm): 750.00 | Overall Height (mm): 580.00 |
| Overall Length (Inch): 66 | Overall Length (Decimal Inch): 66.0000 |
| Max. Longitudinal Feed Rate Per Revolution (mm): 1.29 | Minimum Metric Pitch (Decimal Inch): 0.4000 |
| Cross Slide Travel (Decimal Inch): 6.2000 | Number of Inch Threads: 40 |
| Number of Metric Threads: 29 | Tailstock Travel (mm): 101.50 |
| Spindle Taper Size (Sleeve): 3MT | Spindle Taper Size: 5MT |
| Tailstock Taper Size: 3MT | Tailstock Travel (Decimal Inch): 4.0000 |
| Number Of Spindle Speeds: 18 | Overall Height (Decimal Inch): 23.0000 |
| Top Slide Travel (Decimal Inch): 3.0000 | Top Slide Travel (mm): 76.00 |
| Maximum Cross Feed Rate Per Revolution (mm): 0.28 | Maximum Threads Per Inch: 60 |
| Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0021 | Minimum Threads Per Inch: 4 |
| Swing Over Cross Slide (mm): 180.00 | Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.0508 |
| Min. Cross Feed Rate Per Revolution (Decimal Inch): 0.000400 | Max. Cross Feed Rate Per Revolution (Decimal Inch): 0.0108 |
| Swing Over Cross Slide (Decimal Inch): 7.0000 | Swing Over Cross Slide (Inch): 7 |
| Swing Over Gap (Inch): 18 | Swing Over Gap (Decimal Inch): 18.0000 |
| Swing Over Gap: 18 in; 457 mm | Country of Origin: VARIOUS |
| Lathe Type: Toolroom | |
| Phase: Single | |
| Voltage: 110/220V | |
| Swing (Inch): 13 | |
| Distance Between Centers (Inch): 40 | |
| Spindle Speed Control: Geared Head | |
| Spindle Bore Diameter (Inch): 1-1/2 | |
| Spindle Bore Diameter (mm): 38.00 | |
| Cross Slide Travel (Inch): 5-1/8 | |
| Cross Slide Travel (mm): 130.00 | |
| Gap Length (Decimal Inch): 9.0000 | |
| Bed Width (Inch): 7-1/8 | |
| Gap Length (mm): 229.00 | |
| Maximum Metric Pitch (Decimal Inch): 7.0000 | |
| Overall Length (mm): 1676.00 | |
| Minimum Spindle Speed: 65 | |
| Spindle Nose Designation: D1-4 | |
| Maximum Spindle Speed (RPM): 1810 | |
| Overall Depth (Inch): 29-1/2 | |
| Overall Depth (Decimal Inch): 29.5000 | |
| Overall Depth (Mm): 750.00 | |
| Overall Height (mm): 580.00 | |
| Overall Length (Inch): 66 | |
| Overall Length (Decimal Inch): 66.0000 | |
| Max. Longitudinal Feed Rate Per Revolution (mm): 1.29 | |
| Minimum Metric Pitch (Decimal Inch): 0.4000 | |
| Cross Slide Travel (Decimal Inch): 6.2000 | |
| Number of Inch Threads: 40 | |
| Number of Metric Threads: 29 | |
| Tailstock Travel (mm): 101.50 | |
| Spindle Taper Size (Sleeve): 3MT | |
| Spindle Taper Size: 5MT | |
| Tailstock Taper Size: 3MT | |
| Tailstock Travel (Decimal Inch): 4.0000 | |
| Number Of Spindle Speeds: 18 | |
| Overall Height (Decimal Inch): 23.0000 | |
| Top Slide Travel (Decimal Inch): 3.0000 | |
| Top Slide Travel (mm): 76.00 | |
| Maximum Cross Feed Rate Per Revolution (mm): 0.28 | |
| Maximum Threads Per Inch: 60 | |
| Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0021 | |
| Minimum Threads Per Inch: 4 | |
| Swing Over Cross Slide (mm): 180.00 | |
| Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.0508 | |
| Min. Cross Feed Rate Per Revolution (Decimal Inch): 0.000400 | |
| Max. Cross Feed Rate Per Revolution (Decimal Inch): 0.0108 | |
| Swing Over Cross Slide (Decimal Inch): 7.0000 | |
| Swing Over Cross Slide (Inch): 7 | |
| Swing Over Gap (Inch): 18 | |
| Swing Over Gap (Decimal Inch): 18.0000 | |
| Swing Over Gap: 18 in; 457 mm | |
| Country of Origin: VARIOUS |
| MSC# | 76316397 |
| Mfr# | 1340STAND |
| Big Book# | 1532 |
