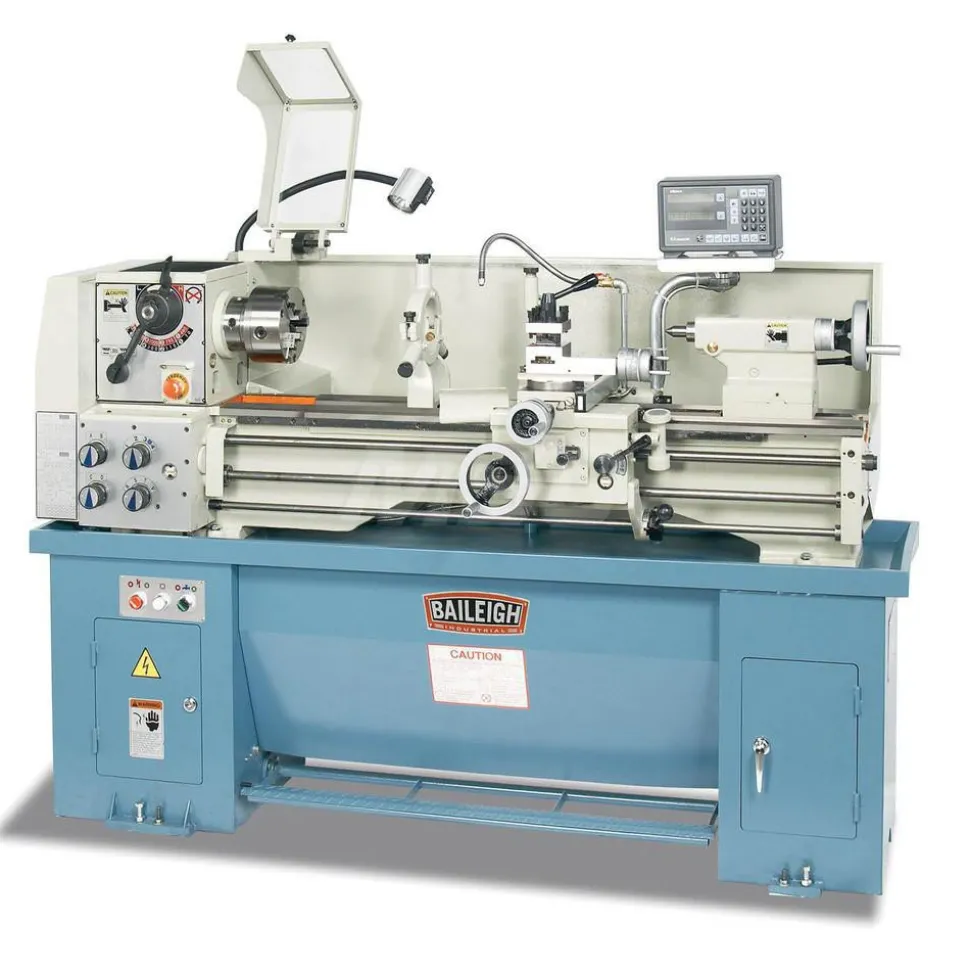

13″ x 40″ Precision Lathe: Variable, 2 hp, 220 V
128,89 $
Specifications
| Lathe Type: Toolroom | Phase: Single |
| Voltage: 220V | Swing (Inch): 13 |
| Distance Between Centers (Inch): 40 | Spindle Speed Control: Variable |
| Spindle Bore Diameter (Inch): 1-1/2 | Gap Length (Decimal Inch): 4.5000 |
| Bed Width (Inch): 7-3/8 | Minimum Spindle Speed: 70 |
| Spindle Nose Designation: 5MT | Maximum Spindle Speed (RPM): 2000 |
| Cross Slide Travel (Decimal Inch): 6.2900 | Number of Inch Threads: 31 |
| Number of Metric Threads: 26 | Maximum Threads Per Inch: 56 |
| Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0020 | Minimum Threads Per Inch: 4 |
| Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.5480 | Swing Over Cross Slide (Inch): 7-3/4 |
| Swing Over Gap (Inch): 18-3/4 | Country of Origin: Taiwan |
| Lathe Type: Toolroom | |
| Phase: Single | |
| Voltage: 220V | |
| Swing (Inch): 13 | |
| Distance Between Centers (Inch): 40 | |
| Spindle Speed Control: Variable | |
| Spindle Bore Diameter (Inch): 1-1/2 | |
| Gap Length (Decimal Inch): 4.5000 | |
| Bed Width (Inch): 7-3/8 | |
| Minimum Spindle Speed: 70 | |
| Spindle Nose Designation: 5MT | |
| Maximum Spindle Speed (RPM): 2000 | |
| Cross Slide Travel (Decimal Inch): 6.2900 | |
| Number of Inch Threads: 31 | |
| Number of Metric Threads: 26 | |
| Maximum Threads Per Inch: 56 | |
| Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0020 | |
| Minimum Threads Per Inch: 4 | |
| Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.5480 | |
| Swing Over Cross Slide (Inch): 7-3/4 | |
| Swing Over Gap (Inch): 18-3/4 | |
| Country of Origin: Taiwan |
| MSC# | 10753812 |
| Mfr# | 1006057 |
