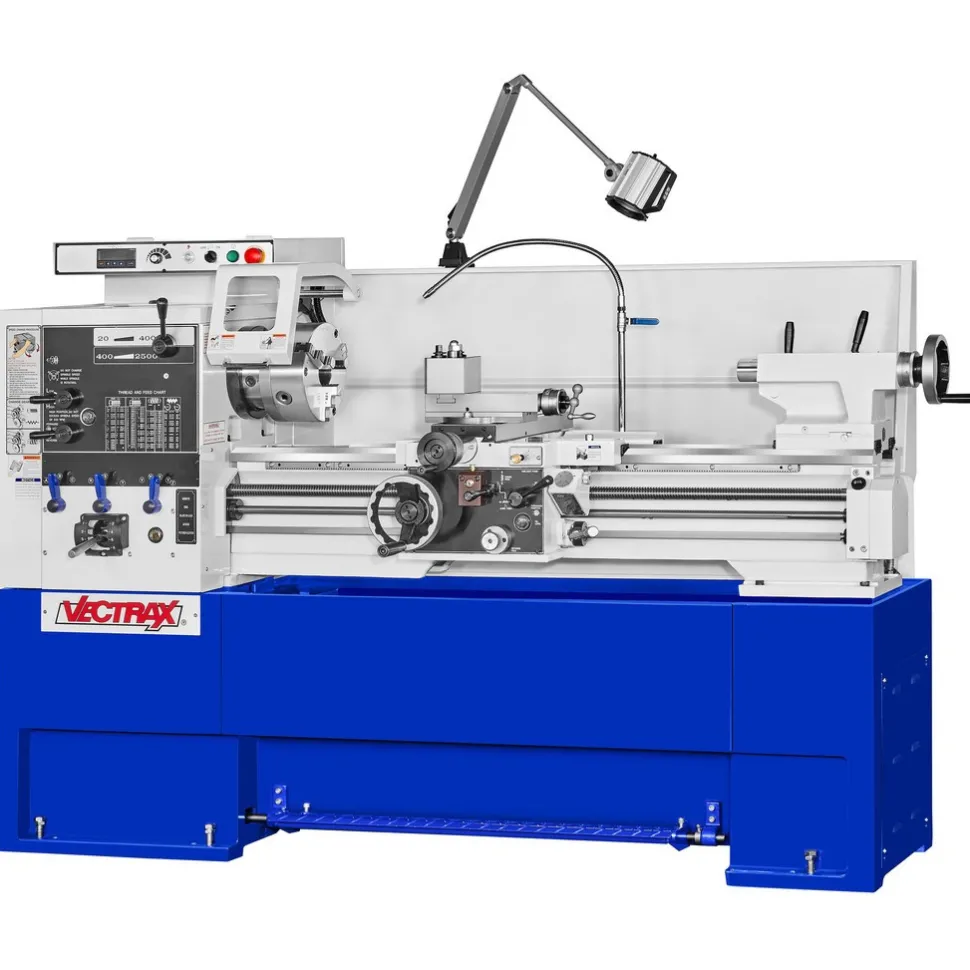

14″ x 39-5/16″ Engine Lathe: Frequency, 5 hp, 220 V
Original price was: 26 329,00 $.136,99 $Current price is: 136,99 $.
Specifications
| Lathe Type: Toolroom | Phase: Three |
| Voltage: 220V | Work Light Included: Yes |
| Swing (Inch): 14 | Bed Width (Inch): 10.2362 |
| Distance Between Centers (Inch): 39-5/16 | Spindle Speed Control: Frequency |
| Spindle Bore Diameter (Inch): 2 | Cross Slide Travel (mm): 218.44 |
| Maximum Metric Pitch (Decimal Inch): 0.5512 | Minimum Spindle Speed: 20 |
| Spindle Nose Designation: D1-6 | Maximum Spindle Speed (RPM): 2500 |
| Overall Depth (Inch): 45 | Overall Depth (Decimal Inch): 45.0000 |
| Overall Length (Inch): 90 | Overall Length (Decimal Inch): 90.0000 |
| Minimum Metric Pitch (Decimal Inch): 0.0079 | Cross Slide Travel (Decimal Inch): 8.6000 |
| Number of Inch Threads: 45 | Number of Metric Threads: 39 |
| Tailstock Travel (mm): 152.40 | Spindle Taper Size: 6MT |
| Tailstock Taper Size: 4MT | Tailstock Travel (Decimal Inch): 6.0000 |
| Overall Height (Decimal Inch): 68.0000 | Top Slide Travel (Decimal Inch): 5.5000 |
| Top Slide Travel (mm): 139.70 | Maximum Threads Per Inch: 72 |
| Minimum Threads Per Inch: 2 | Swing Over Cross Slide (mm): 220.00 |
| Swing Over Cross Slide (Decimal Inch): 8.6614 | Swing Over Gap (Decimal Inch): 21.0000 |
| Lathe Type: Toolroom | |
| Phase: Three | |
| Voltage: 220V | |
| Work Light Included: Yes | |
| Swing (Inch): 14 | |
| Bed Width (Inch): 10.2362 | |
| Distance Between Centers (Inch): 39-5/16 | |
| Spindle Speed Control: Frequency | |
| Spindle Bore Diameter (Inch): 2 | |
| Cross Slide Travel (mm): 218.44 | |
| Maximum Metric Pitch (Decimal Inch): 0.5512 | |
| Minimum Spindle Speed: 20 | |
| Spindle Nose Designation: D1-6 | |
| Maximum Spindle Speed (RPM): 2500 | |
| Overall Depth (Inch): 45 | |
| Overall Depth (Decimal Inch): 45.0000 | |
| Overall Length (Inch): 90 | |
| Overall Length (Decimal Inch): 90.0000 | |
| Minimum Metric Pitch (Decimal Inch): 0.0079 | |
| Cross Slide Travel (Decimal Inch): 8.6000 | |
| Number of Inch Threads: 45 | |
| Number of Metric Threads: 39 | |
| Tailstock Travel (mm): 152.40 | |
| Spindle Taper Size: 6MT | |
| Tailstock Taper Size: 4MT | |
| Tailstock Travel (Decimal Inch): 6.0000 | |
| Overall Height (Decimal Inch): 68.0000 | |
| Top Slide Travel (Decimal Inch): 5.5000 | |
| Top Slide Travel (mm): 139.70 | |
| Maximum Threads Per Inch: 72 | |
| Minimum Threads Per Inch: 2 | |
| Swing Over Cross Slide (mm): 220.00 | |
| Swing Over Cross Slide (Decimal Inch): 8.6614 | |
| Swing Over Gap (Decimal Inch): 21.0000 |
| MSC# | 06917868 |
| Mfr# | RML-1440V |
| Big Book# | 1538 |
