Sale!

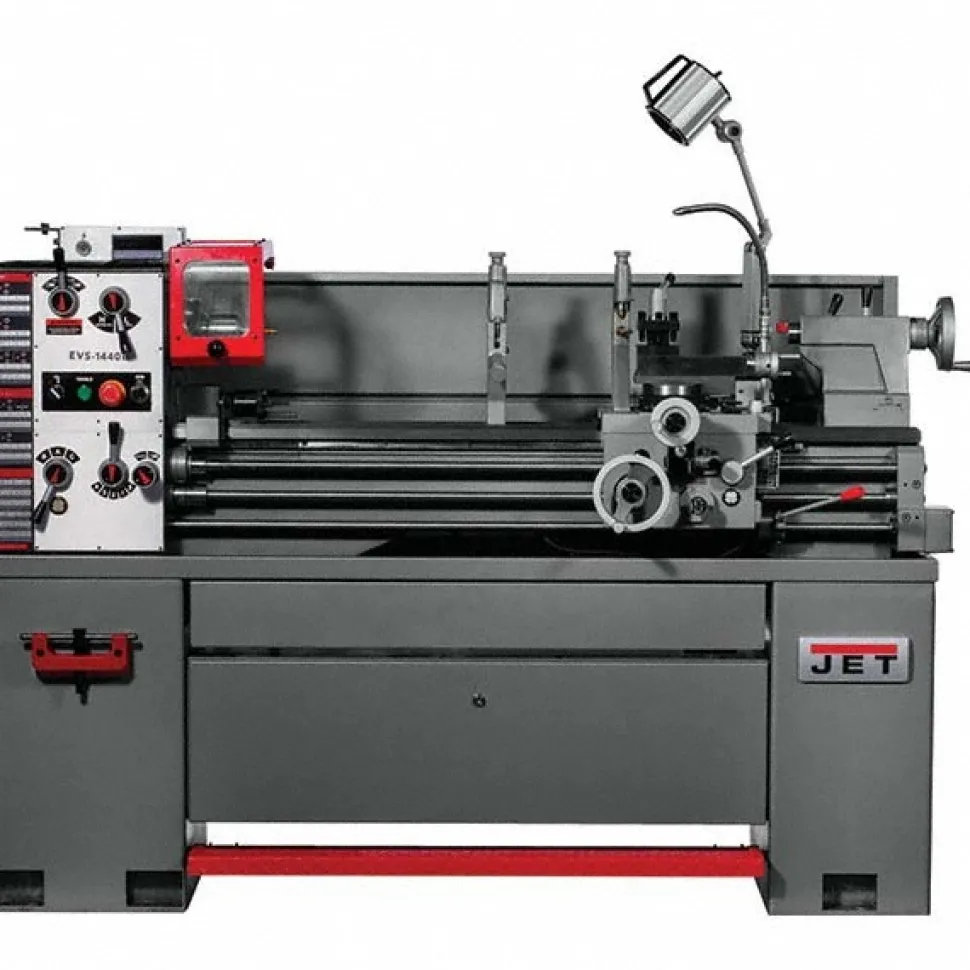

14″ x 40″ Bench Lathe: Electronic Variable Speed, 3 hp, 230/460 V
Original price was: 21 818,00 $.122,89 $Current price is: 122,89 $.
Specifications
| Lathe Type: Toolroom | Phase: Three |
| Voltage: 230/460V | DRO Included: Yes |
| Swing (Inch): 14 | Bed Width (Inch): 7.4800 |
| Distance Between Centers (Inch): 40 | Spindle Speed Control: Electronic Variable Speed |
| Spindle Bore Diameter (Inch): 1-1/2 | Gap Length (Decimal Inch): 9.5000 |
| Maximum Metric Pitch (Decimal Inch): 12.0000 | Certification: UL Listed; CSA Certified |
| Minimum Spindle Speed: 40 | Spindle Nose Designation: D1-4 |
| Maximum Spindle Speed (RPM): 2000 | Overall Depth (Decimal Inch): 28.3000 |
| Overall Length (Inch): 68-1/2 | Overall Length (Decimal Inch): 68.5000 |
| Minimum Metric Pitch (Decimal Inch): 0.5000 | Number of Inch Threads: 34 |
| Number of Metric Threads: 34 | Spindle Taper Size (Sleeve): 5MT |
| Spindle Taper Size: 3MT | Tailstock Taper Size: 3MT |
| Tailstock Travel (Decimal Inch): 6.1250 | Overall Height (Decimal Inch): 50.0000 |
| Warranty: 2 Year | Top Slide Travel (Decimal Inch): 3.5000 |
| Maximum Threads Per Inch: 56 | Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0016 |
| Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.0460 | Max. Cross Feed Rate Per Revolution (Decimal Inch): 25.0000 |
| Swing Over Cross Slide (Decimal Inch): 7.0000 | Swing Over Cross Slide (Inch): 7 |
| Swing Over Gap (Inch): 19-1/2 | Country of Origin: Taiwan |
| Lathe Type: Toolroom | |
| Phase: Three | |
| Voltage: 230/460V | |
| DRO Included: Yes | |
| Swing (Inch): 14 | |
| Bed Width (Inch): 7.4800 | |
| Distance Between Centers (Inch): 40 | |
| Spindle Speed Control: Electronic Variable Speed | |
| Spindle Bore Diameter (Inch): 1-1/2 | |
| Gap Length (Decimal Inch): 9.5000 | |
| Maximum Metric Pitch (Decimal Inch): 12.0000 | |
| Certification: UL Listed; CSA Certified | |
| Minimum Spindle Speed: 40 | |
| Spindle Nose Designation: D1-4 | |
| Maximum Spindle Speed (RPM): 2000 | |
| Overall Depth (Decimal Inch): 28.3000 | |
| Overall Length (Inch): 68-1/2 | |
| Overall Length (Decimal Inch): 68.5000 | |
| Minimum Metric Pitch (Decimal Inch): 0.5000 | |
| Number of Inch Threads: 34 | |
| Number of Metric Threads: 34 | |
| Spindle Taper Size (Sleeve): 5MT | |
| Spindle Taper Size: 3MT | |
| Tailstock Taper Size: 3MT | |
| Tailstock Travel (Decimal Inch): 6.1250 | |
| Overall Height (Decimal Inch): 50.0000 | |
| Warranty: 2 Year | |
| Top Slide Travel (Decimal Inch): 3.5000 | |
| Maximum Threads Per Inch: 56 | |
| Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0016 | |
| Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.0460 | |
| Max. Cross Feed Rate Per Revolution (Decimal Inch): 25.0000 | |
| Swing Over Cross Slide (Decimal Inch): 7.0000 | |
| Swing Over Cross Slide (Inch): 7 | |
| Swing Over Gap (Inch): 19-1/2 | |
| Country of Origin: Taiwan |
| MSC# | 17987686 |
| Mfr# | 311448 |
