Sale!

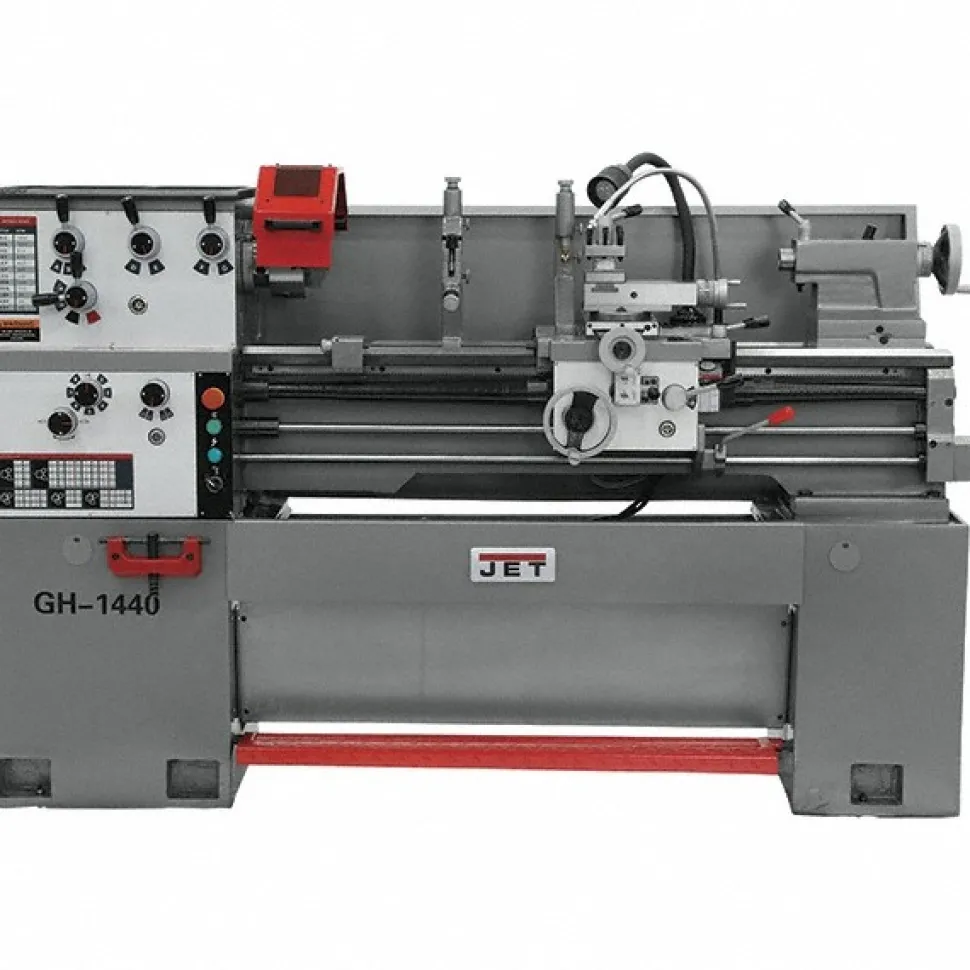

14″ x 40″ Bench Lathe: Geared Head, 3 hp, 230 V
Original price was: 32 845,00 $.126,89 $Current price is: 126,89 $.
Specifications
| Lathe Type: Toolroom | Phase: Single |
| Voltage: 230V | DRO Included: Yes |
| Collet Closer Included: Yes | Swing (Inch): 14 |
| Distance Between Centers (Inch): 40 | Spindle Speed Control: Geared Head |
| Spindle Bore Diameter (Inch): 1-1/2 | Gap Length (Decimal Inch): 9.3750 |
| Minimum Spindle Speed: 40 | Maximum Spindle Speed (RPM): 1800 |
| Overall Depth (Inch): 46 | Overall Depth (Decimal Inch): 46.0000 |
| Overall Height (Inch): 28 | Overall Length (Inch): 74-5/8 |
| Number of Inch Threads: 40 | Spindle Taper Size (Sleeve): 5MT |
| Spindle Taper Size: 5MT | Number Of Spindle Speeds: 12 |
| Overall Height (Decimal Inch): 28.0000 | Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0012 |
| Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.0294 | Swing Over Cross Slide (Decimal Inch): 8.2000 |
| Swing Over Gap (Inch): 14 | Swing Over Gap (Decimal Inch): 14.0000 |
| Swing Over Gap: 14.0 in | Country of Origin: China |
| Lathe Type: Toolroom | |
| Phase: Single | |
| Voltage: 230V | |
| DRO Included: Yes | |
| Collet Closer Included: Yes | |
| Swing (Inch): 14 | |
| Distance Between Centers (Inch): 40 | |
| Spindle Speed Control: Geared Head | |
| Spindle Bore Diameter (Inch): 1-1/2 | |
| Gap Length (Decimal Inch): 9.3750 | |
| Minimum Spindle Speed: 40 | |
| Maximum Spindle Speed (RPM): 1800 | |
| Overall Depth (Inch): 46 | |
| Overall Depth (Decimal Inch): 46.0000 | |
| Overall Height (Inch): 28 | |
| Overall Length (Inch): 74-5/8 | |
| Number of Inch Threads: 40 | |
| Spindle Taper Size (Sleeve): 5MT | |
| Spindle Taper Size: 5MT | |
| Number Of Spindle Speeds: 12 | |
| Overall Height (Decimal Inch): 28.0000 | |
| Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0012 | |
| Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.0294 | |
| Swing Over Cross Slide (Decimal Inch): 8.2000 | |
| Swing Over Gap (Inch): 14 | |
| Swing Over Gap (Decimal Inch): 14.0000 | |
| Swing Over Gap: 14.0 in | |
| Country of Origin: China |
| MSC# | 46043121 |
| Mfr# | 323383 |
