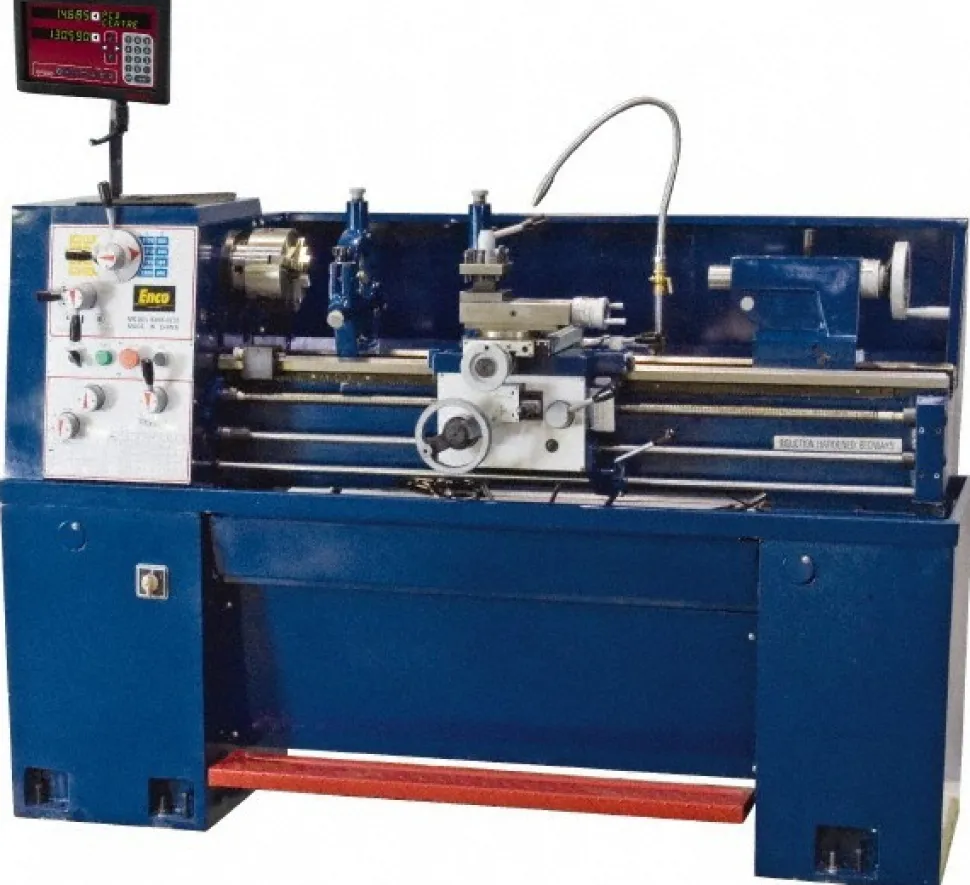

14″ x 40″ Engine Lathe: Geared Head, 3 hp, 220 V
124,99 $
Specifications
| Lathe Type: Toolroom | Phase: Three |
| Voltage: 220V | DRO Included: Yes |
| Work Light Included: Yes | Swing (Inch): 14 |
| Bed Width (Inch): 8.1250 | Distance Between Centers (Inch): 40 |
| Spindle Speed Control: Geared Head | Spindle Bore Diameter (Inch): 1-1/2 |
| Spindle Bore Diameter (mm): 38.00 | Cross Slide Travel (Inch): 6 |
| Gap Length (Decimal Inch): 9.3750 | Bed Width (Inch): 8-1/8 |
| Maximum Metric Pitch (Decimal Inch): 0.2953 | Overall Length (mm): 1920.00 |
| Minimum Spindle Speed: 45 | Spindle Nose Designation: D1-4 |
| Maximum Spindle Speed (RPM): 1800 | Overall Depth (Inch): 29 |
| Overall Depth (Decimal Inch): 29.0000 | Overall Depth (Mm): 740.00 |
| Overall Height (mm): 1180.00 | Overall Length (Decimal Inch): 75.5906 |
| Max. Longitudinal Feed Rate Per Revolution (mm): 0.75 | Minimum Metric Pitch (Decimal Inch): 0.4500 |
| Cross Slide Travel (Decimal Inch): 6.0000 | Number of Inch Threads: 44 |
| Number of Metric Threads: 22 | Tailstock Travel (mm): 120.00 |
| Spindle Taper Size: 5MT | Tailstock Taper Size: 3MT |
| Tailstock Travel (Decimal Inch): 4.7244 | Number Of Spindle Speeds: 16 |
| Overall Height (Decimal Inch): 46.4567 | Top Slide Travel (Decimal Inch): 3.5000 |
| Maximum Cross Feed Rate Per Revolution (mm): 0.25 | Maximum Threads Per Inch: 112 |
| Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0012 | Minimum Threads Per Inch: 4 |
| Swing Over Cross Slide (mm): 219.08 | Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.0294 |
| Min. Cross Feed Rate Per Revolution (Decimal Inch): 0.000300 | Max. Cross Feed Rate Per Revolution (Decimal Inch): 0.0100 |
| Swing Over Cross Slide (Decimal Inch): 8.6250 | Swing Over Cross Slide (Inch): 8-5/8 |
| Swing Over Gap (Inch): 20 | Swing Over Gap (Decimal Inch): 20.0000 |
| Swing Over Gap: 20 in; 508 mm | |
| Lathe Type: Toolroom | |
| Phase: Three | |
| Voltage: 220V | |
| DRO Included: Yes | |
| Work Light Included: Yes | |
| Swing (Inch): 14 | |
| Bed Width (Inch): 8.1250 | |
| Distance Between Centers (Inch): 40 | |
| Spindle Speed Control: Geared Head | |
| Spindle Bore Diameter (Inch): 1-1/2 | |
| Spindle Bore Diameter (mm): 38.00 | |
| Cross Slide Travel (Inch): 6 | |
| Gap Length (Decimal Inch): 9.3750 | |
| Bed Width (Inch): 8-1/8 | |
| Maximum Metric Pitch (Decimal Inch): 0.2953 | |
| Overall Length (mm): 1920.00 | |
| Minimum Spindle Speed: 45 | |
| Spindle Nose Designation: D1-4 | |
| Maximum Spindle Speed (RPM): 1800 | |
| Overall Depth (Inch): 29 | |
| Overall Depth (Decimal Inch): 29.0000 | |
| Overall Depth (Mm): 740.00 | |
| Overall Height (mm): 1180.00 | |
| Overall Length (Decimal Inch): 75.5906 | |
| Max. Longitudinal Feed Rate Per Revolution (mm): 0.75 | |
| Minimum Metric Pitch (Decimal Inch): 0.4500 | |
| Cross Slide Travel (Decimal Inch): 6.0000 | |
| Number of Inch Threads: 44 | |
| Number of Metric Threads: 22 | |
| Tailstock Travel (mm): 120.00 | |
| Spindle Taper Size: 5MT | |
| Tailstock Taper Size: 3MT | |
| Tailstock Travel (Decimal Inch): 4.7244 | |
| Number Of Spindle Speeds: 16 | |
| Overall Height (Decimal Inch): 46.4567 | |
| Top Slide Travel (Decimal Inch): 3.5000 | |
| Maximum Cross Feed Rate Per Revolution (mm): 0.25 | |
| Maximum Threads Per Inch: 112 | |
| Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0012 | |
| Minimum Threads Per Inch: 4 | |
| Swing Over Cross Slide (mm): 219.08 | |
| Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.0294 | |
| Min. Cross Feed Rate Per Revolution (Decimal Inch): 0.000300 | |
| Max. Cross Feed Rate Per Revolution (Decimal Inch): 0.0100 | |
| Swing Over Cross Slide (Decimal Inch): 8.6250 | |
| Swing Over Cross Slide (Inch): 8-5/8 | |
| Swing Over Gap (Inch): 20 | |
| Swing Over Gap (Decimal Inch): 20.0000 | |
| Swing Over Gap: 20 in; 508 mm |
| MSC# | 30592984 |
| Mfr# | 4670426/1307152 |
| Big Book# | 1534 |
