Sale!

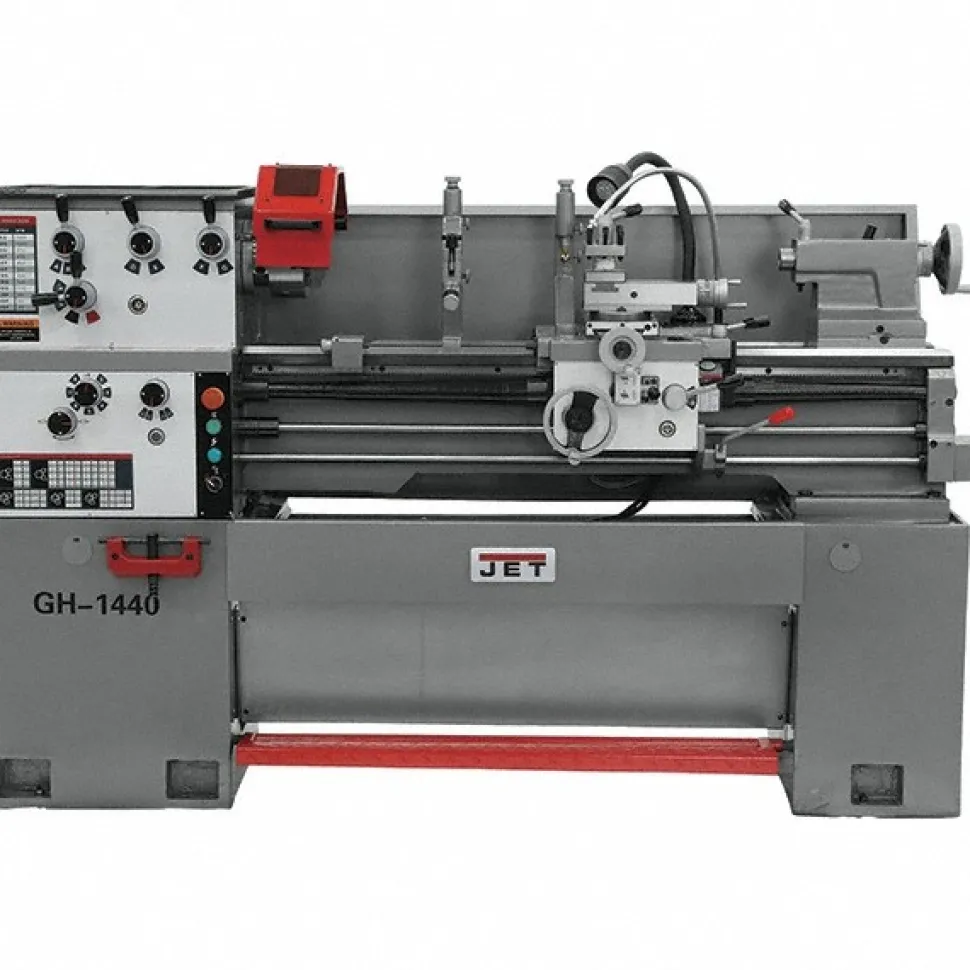

14″ x 40″ Engine Lathe: Geared Head, 3 hp, 230/460 V
Original price was: 22 053,00 $.124,89 $Current price is: 124,89 $.
Specifications
| Lathe Type: Engine | Phase: Three |
| Voltage: 230/460V | Swing (Inch): 14 |
| Bed Width (Inch): 10.2000 | Distance Between Centers (Inch): 40 |
| Spindle Speed Control: Geared Head | Spindle Bore Diameter (Inch): 1-1/2 |
| Cross Slide Travel (Inch): 6-3/8 | Gap Length (Decimal Inch): 9.3750 |
| Maximum Metric Pitch (Decimal Inch): 7.5000 | Compound Travel: 3-1/2 |
| Minimum Spindle Speed: 40 | Spindle Nose Designation: D1-4 |
| Maximum Spindle Speed (RPM): 1800 | Overall Depth (Inch): 30 |
| Overall Depth (Decimal Inch): 30.0000 | Overall Length (Decimal Inch): 74.8000 |
| Minimum Metric Pitch (Decimal Inch): 0.4500 | Number of Inch Threads: 40 |
| Spindle Taper Size: 5MT | Tailstock Taper Size: 3MT |
| Tailstock Travel (Decimal Inch): 4.7500 | Number Of Spindle Speeds: 12 |
| Overall Height (Decimal Inch): 56.5000 | Warranty: 2 Year |
| Maximum Threads Per Inch: 112 | Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0012 |
| Minimum Threads Per Inch: 4 | Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.0294 |
| Min. Cross Feed Rate Per Revolution (Decimal Inch): 0.000400 | Max. Cross Feed Rate Per Revolution (Decimal Inch): 0.0103 |
| Swing Over Cross Slide (Decimal Inch): 8.2000 | Swing Over Gap (Inch): 20 |
| Swing Over Gap (Decimal Inch): 20.0000 | Swing Over Gap: 20 in |
| Country of Origin: China | |
| Lathe Type: Engine | |
| Phase: Three | |
| Voltage: 230/460V | |
| Swing (Inch): 14 | |
| Bed Width (Inch): 10.2000 | |
| Distance Between Centers (Inch): 40 | |
| Spindle Speed Control: Geared Head | |
| Spindle Bore Diameter (Inch): 1-1/2 | |
| Cross Slide Travel (Inch): 6-3/8 | |
| Gap Length (Decimal Inch): 9.3750 | |
| Maximum Metric Pitch (Decimal Inch): 7.5000 | |
| Compound Travel: 3-1/2 | |
| Minimum Spindle Speed: 40 | |
| Spindle Nose Designation: D1-4 | |
| Maximum Spindle Speed (RPM): 1800 | |
| Overall Depth (Inch): 30 | |
| Overall Depth (Decimal Inch): 30.0000 | |
| Overall Length (Decimal Inch): 74.8000 | |
| Minimum Metric Pitch (Decimal Inch): 0.4500 | |
| Number of Inch Threads: 40 | |
| Spindle Taper Size: 5MT | |
| Tailstock Taper Size: 3MT | |
| Tailstock Travel (Decimal Inch): 4.7500 | |
| Number Of Spindle Speeds: 12 | |
| Overall Height (Decimal Inch): 56.5000 | |
| Warranty: 2 Year | |
| Maximum Threads Per Inch: 112 | |
| Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0012 | |
| Minimum Threads Per Inch: 4 | |
| Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.0294 | |
| Min. Cross Feed Rate Per Revolution (Decimal Inch): 0.000400 | |
| Max. Cross Feed Rate Per Revolution (Decimal Inch): 0.0103 | |
| Swing Over Cross Slide (Decimal Inch): 8.2000 | |
| Swing Over Gap (Inch): 20 | |
| Swing Over Gap (Decimal Inch): 20.0000 | |
| Swing Over Gap: 20 in | |
| Country of Origin: China |
| MSC# | 38677647 |
| Mfr# | 322840 |
