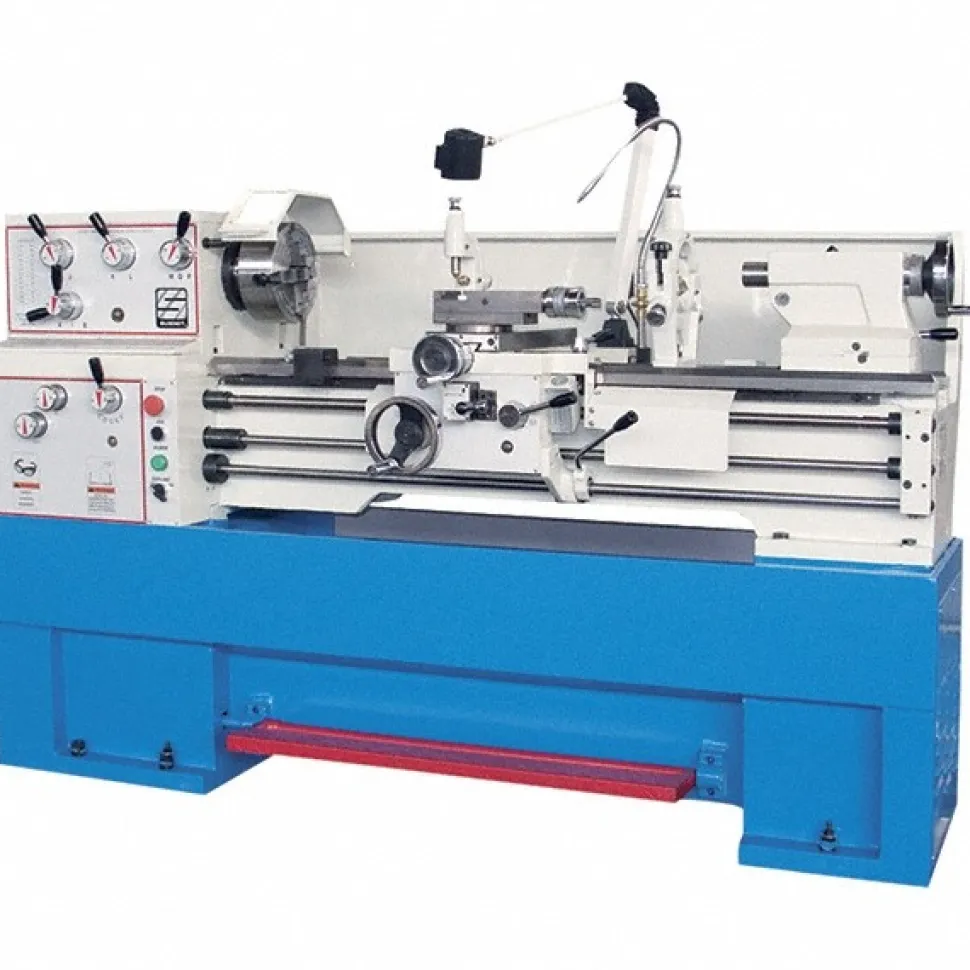

14″ x 40″ Toolroom Lathe: Geared Head, 4 hp, 220/440 V
124,99 $
Specifications
| Lathe Type: Toolroom | Phase: Three |
| Voltage: 220/440V | Swing (Inch): 14 |
| Bed Width (Inch): 10.2500 | Distance Between Centers (Inch): 40 |
| Spindle Speed Control: Geared Head | Spindle Bore Diameter (Inch): 1-1/2 |
| Cross Slide Travel (Inch): 6-1/2 | Gap Length (Decimal Inch): 9.2500 |
| Bed Width (Inch): 10-1/4 | Maximum Metric Pitch (Decimal Inch): 7.5000 |
| Compound Travel: 3-1/4 | Minimum Spindle Speed: 40 |
| Spindle Nose Designation: D1-4 | Maximum Spindle Speed (RPM): 1800 |
| Overall Depth (Inch): 36 | Overall Depth (Decimal Inch): 36.0000 |
| Overall Height (Inch): 54 | Overall Length (Inch): 78 |
| Overall Length (Decimal Inch): 78.0000 | Minimum Metric Pitch (Decimal Inch): 0.4500 |
| Cross Slide Travel (Decimal Inch): 6.5000 | Number of Inch Threads: 40 |
| Number of Metric Threads: 24 | Spindle Taper Size: 5MT |
| Tailstock Taper Size: 3MT | Tailstock Travel (Decimal Inch): 5.0000 |
| Number Of Spindle Speeds: 12 | Overall Height (Decimal Inch): 54.0000 |
| Warranty: 1 Year | Maximum Threads Per Inch: 112 |
| Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0011 | Minimum Threads Per Inch: 40 |
| Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.0271 | Min. Cross Feed Rate Per Revolution (Decimal Inch): 0.000300 |
| Max. Cross Feed Rate Per Revolution (Decimal Inch): 0.0090 | Swing Over Cross Slide (Decimal Inch): 8.2500 |
| Swing Over Cross Slide (Inch): 8-1/4 | Swing Over Gap (Inch): 20 |
| Swing Over Gap (Decimal Inch): 20.0000 | Swing Over Gap: 20 in |
| Lathe Type: Toolroom | |
| Phase: Three | |
| Voltage: 220/440V | |
| Swing (Inch): 14 | |
| Bed Width (Inch): 10.2500 | |
| Distance Between Centers (Inch): 40 | |
| Spindle Speed Control: Geared Head | |
| Spindle Bore Diameter (Inch): 1-1/2 | |
| Cross Slide Travel (Inch): 6-1/2 | |
| Gap Length (Decimal Inch): 9.2500 | |
| Bed Width (Inch): 10-1/4 | |
| Maximum Metric Pitch (Decimal Inch): 7.5000 | |
| Compound Travel: 3-1/4 | |
| Minimum Spindle Speed: 40 | |
| Spindle Nose Designation: D1-4 | |
| Maximum Spindle Speed (RPM): 1800 | |
| Overall Depth (Inch): 36 | |
| Overall Depth (Decimal Inch): 36.0000 | |
| Overall Height (Inch): 54 | |
| Overall Length (Inch): 78 | |
| Overall Length (Decimal Inch): 78.0000 | |
| Minimum Metric Pitch (Decimal Inch): 0.4500 | |
| Cross Slide Travel (Decimal Inch): 6.5000 | |
| Number of Inch Threads: 40 | |
| Number of Metric Threads: 24 | |
| Spindle Taper Size: 5MT | |
| Tailstock Taper Size: 3MT | |
| Tailstock Travel (Decimal Inch): 5.0000 | |
| Number Of Spindle Speeds: 12 | |
| Overall Height (Decimal Inch): 54.0000 | |
| Warranty: 1 Year | |
| Maximum Threads Per Inch: 112 | |
| Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0011 | |
| Minimum Threads Per Inch: 40 | |
| Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.0271 | |
| Min. Cross Feed Rate Per Revolution (Decimal Inch): 0.000300 | |
| Max. Cross Feed Rate Per Revolution (Decimal Inch): 0.0090 | |
| Swing Over Cross Slide (Decimal Inch): 8.2500 | |
| Swing Over Cross Slide (Inch): 8-1/4 | |
| Swing Over Gap (Inch): 20 | |
| Swing Over Gap (Decimal Inch): 20.0000 | |
| Swing Over Gap: 20 in |
| MSC# | 86739455 |
| Mfr# | 14X40 |
