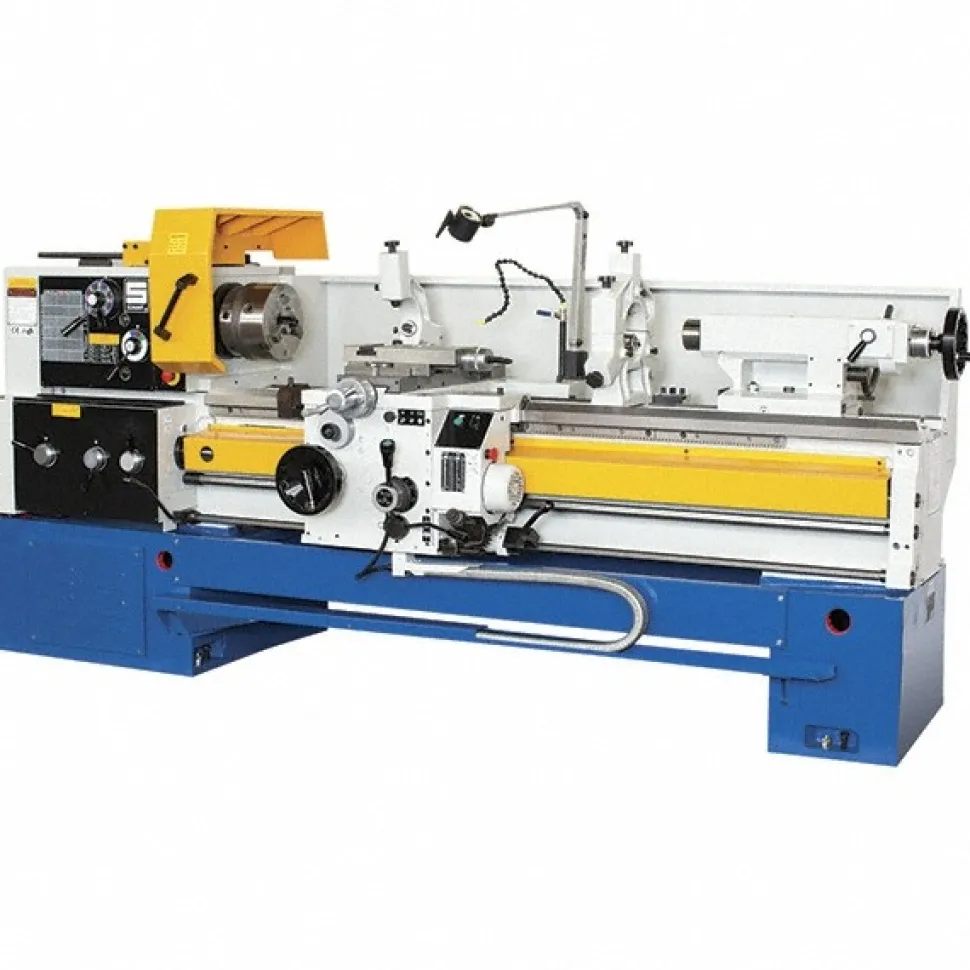

16″ x 60″ Toolroom Lathe: Geared Head, 10 hp, 120 V
140,89 $
Specifications
| Lathe Type: Toolroom | Phase: Three |
| Voltage: 120V | Swing (Inch): 16 |
| Bed Width (Inch): 15.7500 | Distance Between Centers (Inch): 60 |
| Spindle Speed Control: Geared Head | Spindle Bore Diameter (Inch): 3 |
| Cross Slide Travel (Inch): 12-1/4 | Gap Length (Decimal Inch): 15.0000 |
| Bed Width (Inch): 15-3/4 | Maximum Metric Pitch (Decimal Inch): 120.0000 |
| Minimum Spindle Speed: 20 | Spindle Nose Designation: D1-8 |
| Maximum Spindle Speed (RPM): 2000 | Overall Depth (Inch): 48 |
| Overall Depth (Decimal Inch): 48.0000 | Overall Height (Inch): 60 |
| Overall Length (Inch): 134 | Overall Length (Decimal Inch): 134.0000 |
| Minimum Metric Pitch (Decimal Inch): 0.2500 | Number of Inch Threads: 64 |
| Number of Metric Threads: 64 | Spindle Taper Size: 6MT |
| Tailstock Taper Size: 5MT | Tailstock Travel (Decimal Inch): 9.5000 |
| Number Of Spindle Speeds: 24 | Overall Height (Decimal Inch): 60.0000 |
| Warranty: 1 Year | Maximum Threads Per Inch: 60 |
| Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0015 | Minimum Threads Per Inch: 64 |
| Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.4447 | Min. Cross Feed Rate Per Revolution (Decimal Inch): 0.000700 |
| Max. Cross Feed Rate Per Revolution (Decimal Inch): 0.2224 | Swing Over Cross Slide (Inch): 9-1/2 |
| Swing Over Gap (Inch): 26 | Swing Over Gap (Decimal Inch): 26.0000 |
| Swing Over Gap: 26 in | Country of Origin: Bulgaria |
| Lathe Type: Toolroom | |
| Phase: Three | |
| Voltage: 120V | |
| Swing (Inch): 16 | |
| Bed Width (Inch): 15.7500 | |
| Distance Between Centers (Inch): 60 | |
| Spindle Speed Control: Geared Head | |
| Spindle Bore Diameter (Inch): 3 | |
| Cross Slide Travel (Inch): 12-1/4 | |
| Gap Length (Decimal Inch): 15.0000 | |
| Bed Width (Inch): 15-3/4 | |
| Maximum Metric Pitch (Decimal Inch): 120.0000 | |
| Minimum Spindle Speed: 20 | |
| Spindle Nose Designation: D1-8 | |
| Maximum Spindle Speed (RPM): 2000 | |
| Overall Depth (Inch): 48 | |
| Overall Depth (Decimal Inch): 48.0000 | |
| Overall Height (Inch): 60 | |
| Overall Length (Inch): 134 | |
| Overall Length (Decimal Inch): 134.0000 | |
| Minimum Metric Pitch (Decimal Inch): 0.2500 | |
| Number of Inch Threads: 64 | |
| Number of Metric Threads: 64 | |
| Spindle Taper Size: 6MT | |
| Tailstock Taper Size: 5MT | |
| Tailstock Travel (Decimal Inch): 9.5000 | |
| Number Of Spindle Speeds: 24 | |
| Overall Height (Decimal Inch): 60.0000 | |
| Warranty: 1 Year | |
| Maximum Threads Per Inch: 60 | |
| Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0015 | |
| Minimum Threads Per Inch: 64 | |
| Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.4447 | |
| Min. Cross Feed Rate Per Revolution (Decimal Inch): 0.000700 | |
| Max. Cross Feed Rate Per Revolution (Decimal Inch): 0.2224 | |
| Swing Over Cross Slide (Inch): 9-1/2 | |
| Swing Over Gap (Inch): 26 | |
| Swing Over Gap (Decimal Inch): 26.0000 | |
| Swing Over Gap: 26 in | |
| Country of Origin: Bulgaria |
| MSC# | 73637373 |
| Mfr# | 16-3X60B |
