Sale!

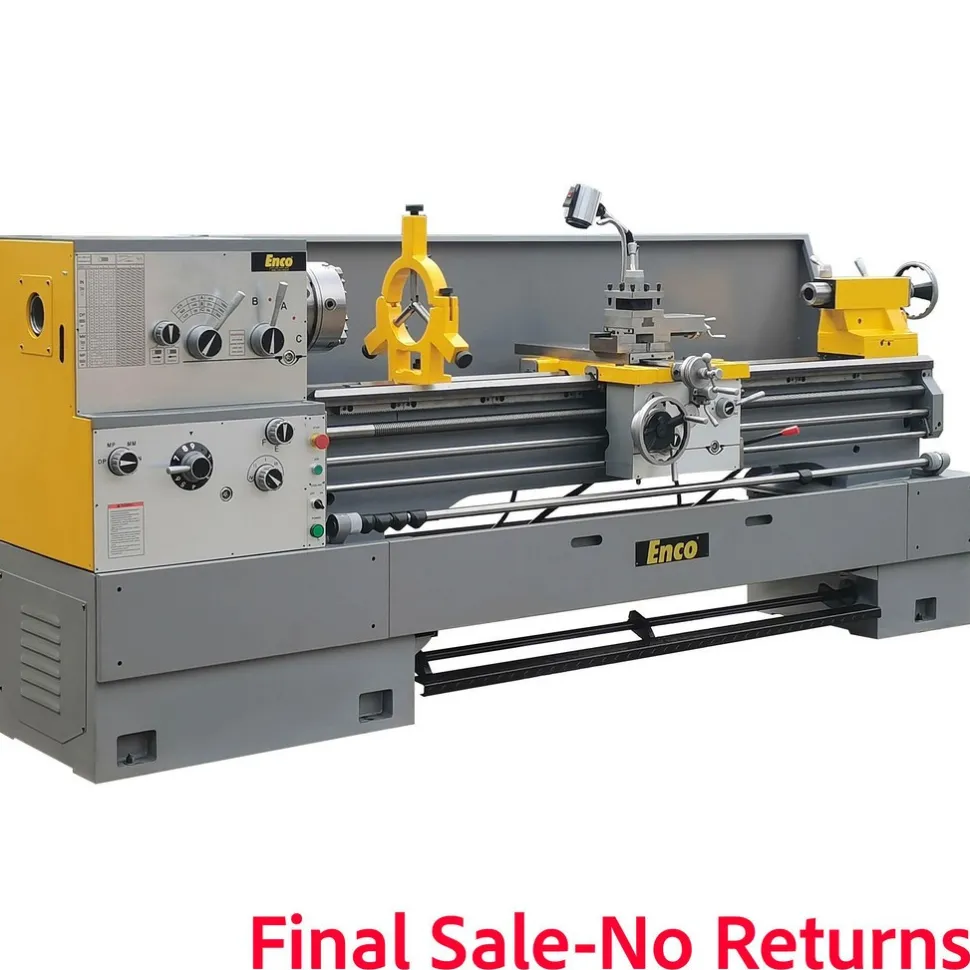

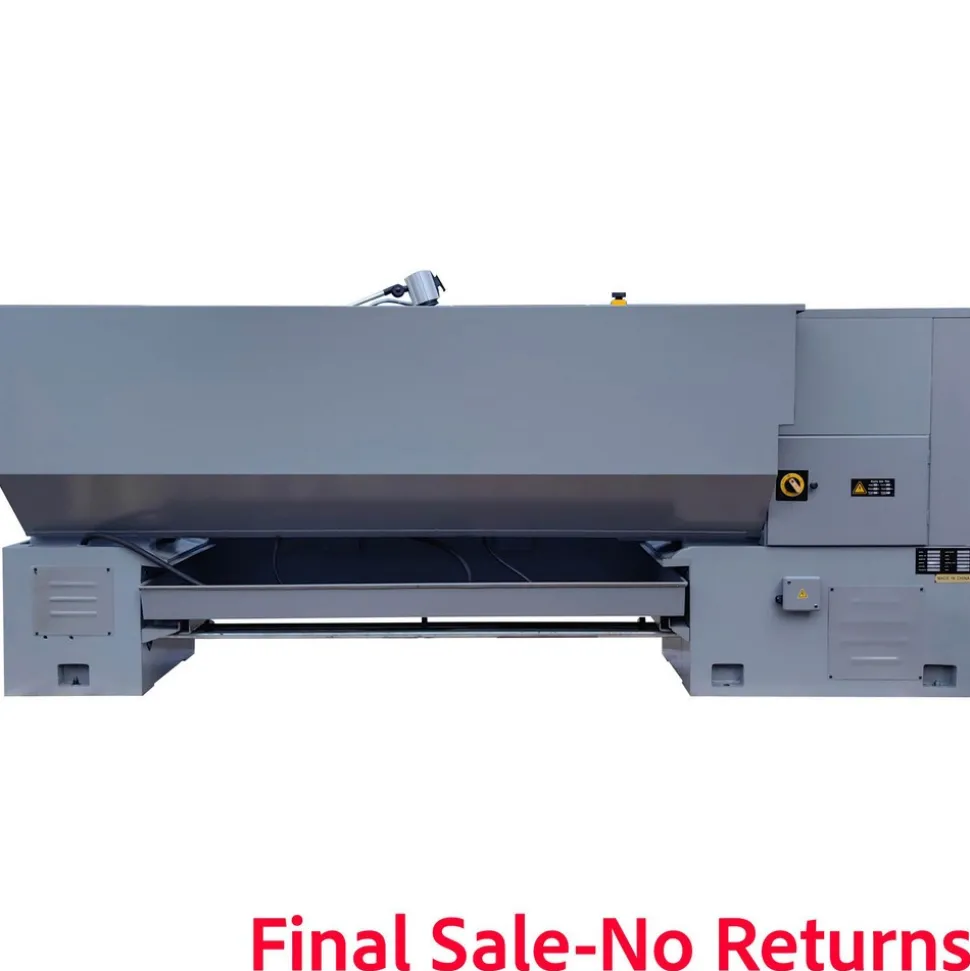

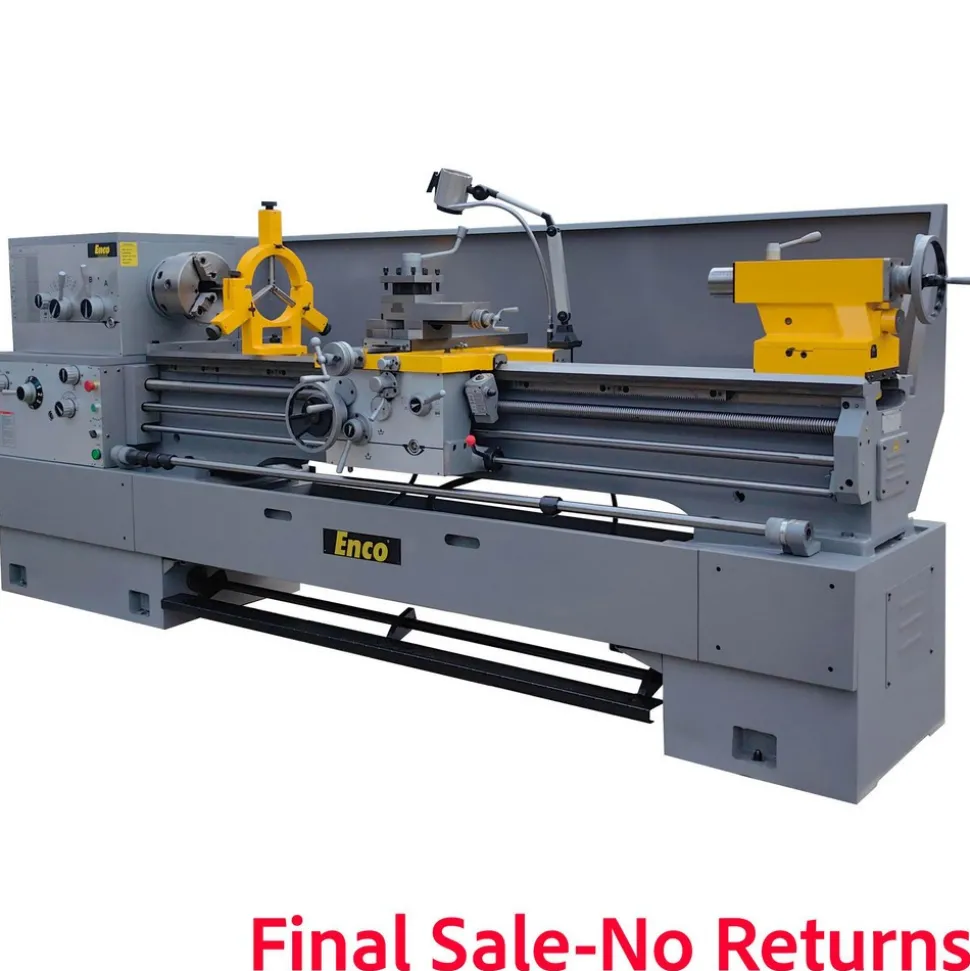

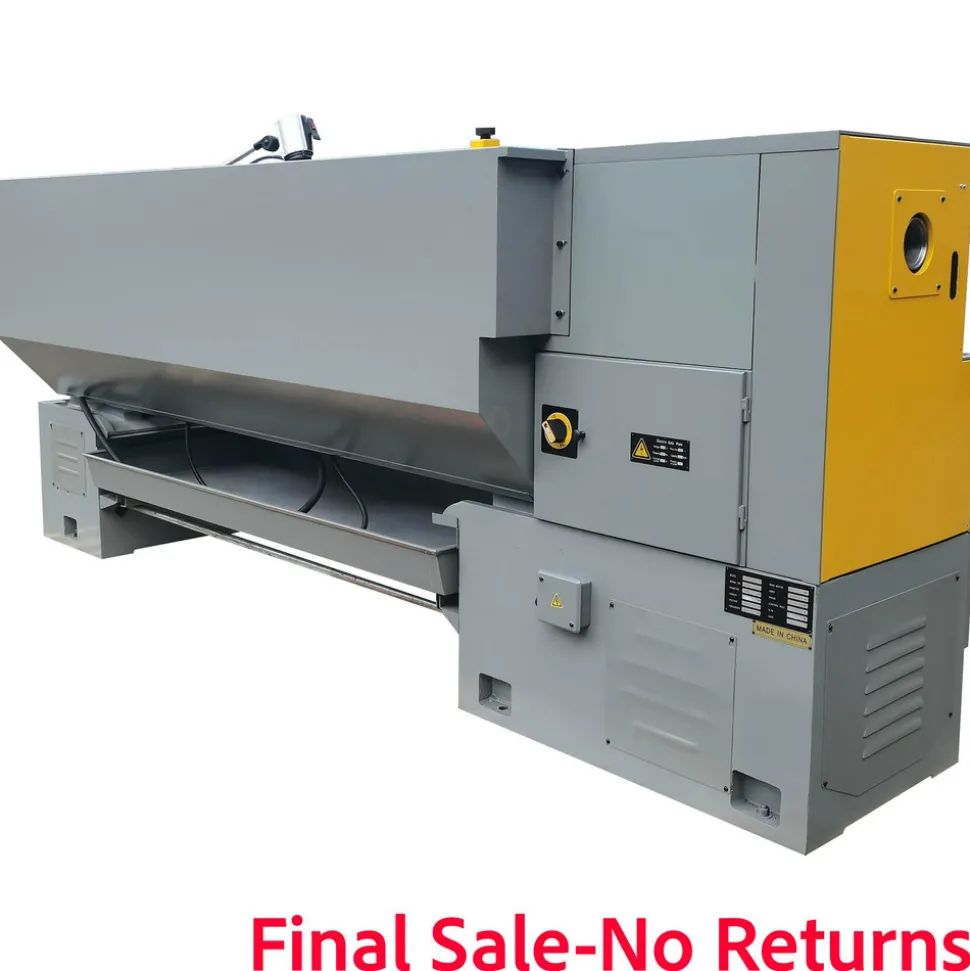

18″ x 80″ Engine Lathe: Geared Head, 230/460 V
Original price was: 32 099,00 $.138,99 $Current price is: 138,99 $.
Specifications
| Lathe Type: Toolroom | Phase: Three |
| Voltage: 230/460V | Swing (Inch): 18 |
| Bed Width (Inch): 13.3750 | Distance Between Centers (Inch): 80 |
| Spindle Speed Control: Geared Head | Spindle Bore Diameter (Inch): 3-1/8 |
| Cross Slide Travel (Inch): 9 | Gap Length (Decimal Inch): 12.2500 |
| Bed Width (Inch): 13-3/8 | Maximum Metric Pitch (Decimal Inch): 0.7874 |
| Minimum Spindle Speed: 25 | Spindle Nose Designation: D1-8 |
| Maximum Spindle Speed (RPM): 1800 | Overall Depth (Inch): 40 |
| Overall Depth (Decimal Inch): 40.0000 | Overall Height (Inch): 48-7/8 |
| Overall Length (Inch): 136-1/8 | Overall Length (Decimal Inch): 136.1250 |
| Minimum Metric Pitch (Decimal Inch): 0.0197 | Cross Slide Travel (Decimal Inch): 9.0000 |
| Number of Inch Threads: 61 | Number of Metric Threads: 24 |
| Spindle Taper Size (Sleeve): 5MT | Spindle Taper Size: 7MT |
| Tailstock Taper Size: 5MT | Number Of Spindle Speeds: 12 |
| Top Slide Travel (Decimal Inch): 4.0000 | Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0015 |
| Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.0913 | Min. Cross Feed Rate Per Revolution (Decimal Inch): 0.000600 |
| Max. Cross Feed Rate Per Revolution (Decimal Inch): 0.0365 | Swing Over Cross Slide (Decimal Inch): 11.0000 |
| Swing Over Cross Slide (Inch): 11 | Swing Over Gap (Inch): 27-1/2 |
| Swing Over Gap (Decimal Inch): 27.5000 | Swing Over Gap: 27.5 in |
| Country of Origin: China | |
| Lathe Type: Toolroom | |
| Phase: Three | |
| Voltage: 230/460V | |
| Swing (Inch): 18 | |
| Bed Width (Inch): 13.3750 | |
| Distance Between Centers (Inch): 80 | |
| Spindle Speed Control: Geared Head | |
| Spindle Bore Diameter (Inch): 3-1/8 | |
| Cross Slide Travel (Inch): 9 | |
| Gap Length (Decimal Inch): 12.2500 | |
| Bed Width (Inch): 13-3/8 | |
| Maximum Metric Pitch (Decimal Inch): 0.7874 | |
| Minimum Spindle Speed: 25 | |
| Spindle Nose Designation: D1-8 | |
| Maximum Spindle Speed (RPM): 1800 | |
| Overall Depth (Inch): 40 | |
| Overall Depth (Decimal Inch): 40.0000 | |
| Overall Height (Inch): 48-7/8 | |
| Overall Length (Inch): 136-1/8 | |
| Overall Length (Decimal Inch): 136.1250 | |
| Minimum Metric Pitch (Decimal Inch): 0.0197 | |
| Cross Slide Travel (Decimal Inch): 9.0000 | |
| Number of Inch Threads: 61 | |
| Number of Metric Threads: 24 | |
| Spindle Taper Size (Sleeve): 5MT | |
| Spindle Taper Size: 7MT | |
| Tailstock Taper Size: 5MT | |
| Number Of Spindle Speeds: 12 | |
| Top Slide Travel (Decimal Inch): 4.0000 | |
| Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0015 | |
| Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.0913 | |
| Min. Cross Feed Rate Per Revolution (Decimal Inch): 0.000600 | |
| Max. Cross Feed Rate Per Revolution (Decimal Inch): 0.0365 | |
| Swing Over Cross Slide (Decimal Inch): 11.0000 | |
| Swing Over Cross Slide (Inch): 11 | |
| Swing Over Gap (Inch): 27-1/2 | |
| Swing Over Gap (Decimal Inch): 27.5000 | |
| Swing Over Gap: 27.5 in | |
| Country of Origin: China |
| MSC# | 64280274 |
| Mfr# | 1880ZX |
| Big Book# | 1535 |
