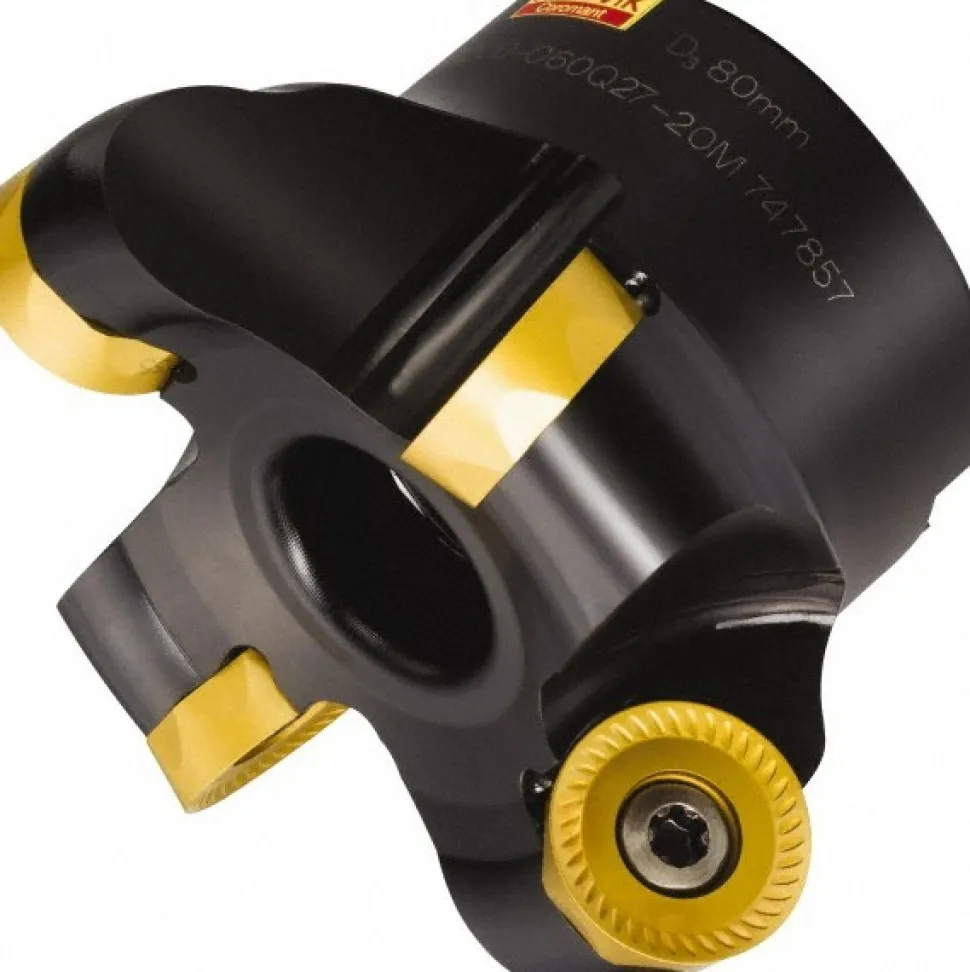

2-1/2″ Cut Dia, 1″ Arbor Hole Dia, 1/4″ Max Depth, Indexable Square-Shoulder Face Mill
134,89 $

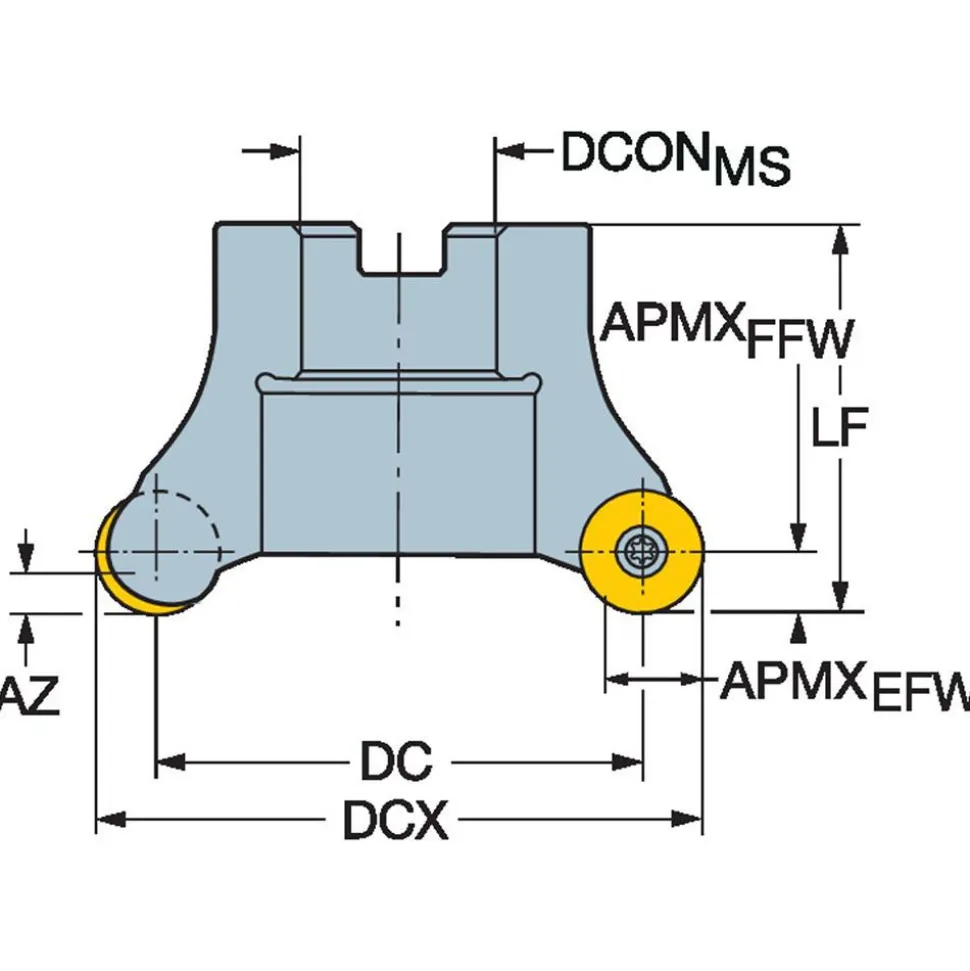

Specifications
| Maximum Cutting Diameter (Inch): 2-1/2 | Maximum Cutting Diameter (mm): 63.50 |
| Maximum Depth of Cut (mm): 6.35 | Maximum Depth of Cut (Decimal Inch): 0.2500 |
| Arbor Hole Diameter (Inch): 1 | Arbor Hole Diameter (Decimal Inch): 1.0000 |
| Compatible Insert Size Code: RCKT 13 04 00 | Cutter Style: RA200 |
| Cutting Direction: Right Hand | Insert Holding Method: Screw; Clamp |
| Lead Angle: 0 | Rake: Negative |
| Series: CoroMill 200 | Maximum Body Diameter (Decimal Inch): 2.5000 |
| Overall Height (mm): 50.00 | Overall Height (Decimal Inch): 1.9685 |
| Keyway Width (mm): 9.75 | Keyway Width (Decimal Inch): 0.3839 |
| Hub Diameter (mm): 25.40 | Hub Diameter (Decimal Inch): 1.0000 |
| Hub Diameter (Inch): 1 | Pitch Type: Close |
| Cutting Edge Length (Inch): 1/4 | Cutting Edge Length (Decimal Inch): 0.2500 |
| Complete Insert Compatibility: RCKT 13 04 00 | UNSPSC Code: 27112803 |
| Toolholder Material: Steel | Coolant Through: No |
| Number Of Cutter Inserts: 5 | Number Of Flutes: 5 |
| Country of Origin: UNITED STATES | |
| Maximum Cutting Diameter (Inch): 2-1/2 | |
| Maximum Cutting Diameter (mm): 63.50 | |
| Maximum Depth of Cut (mm): 6.35 | |
| Maximum Depth of Cut (Decimal Inch): 0.2500 | |
| Arbor Hole Diameter (Inch): 1 | |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | |
| Compatible Insert Size Code: RCKT 13 04 00 | |
| Cutter Style: RA200 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw; Clamp | |
| Lead Angle: 0 | |
| Rake: Negative | |
| Series: CoroMill 200 | |
| Maximum Body Diameter (Decimal Inch): 2.5000 | |
| Overall Height (mm): 50.00 | |
| Overall Height (Decimal Inch): 1.9685 | |
| Keyway Width (mm): 9.75 | |
| Keyway Width (Decimal Inch): 0.3839 | |
| Hub Diameter (mm): 25.40 | |
| Hub Diameter (Decimal Inch): 1.0000 | |
| Hub Diameter (Inch): 1 | |
| Pitch Type: Close | |
| Cutting Edge Length (Inch): 1/4 | |
| Cutting Edge Length (Decimal Inch): 0.2500 | |
| Complete Insert Compatibility: RCKT 13 04 00 | |
| UNSPSC Code: 27112803 | |
| Toolholder Material: Steel | |
| Coolant Through: No | |
| Number Of Cutter Inserts: 5 | |
| Number Of Flutes: 5 | |
| Country of Origin: UNITED STATES |
| MSC# | 52071107 |
| Mfr# | 5739043 |
