Sale!

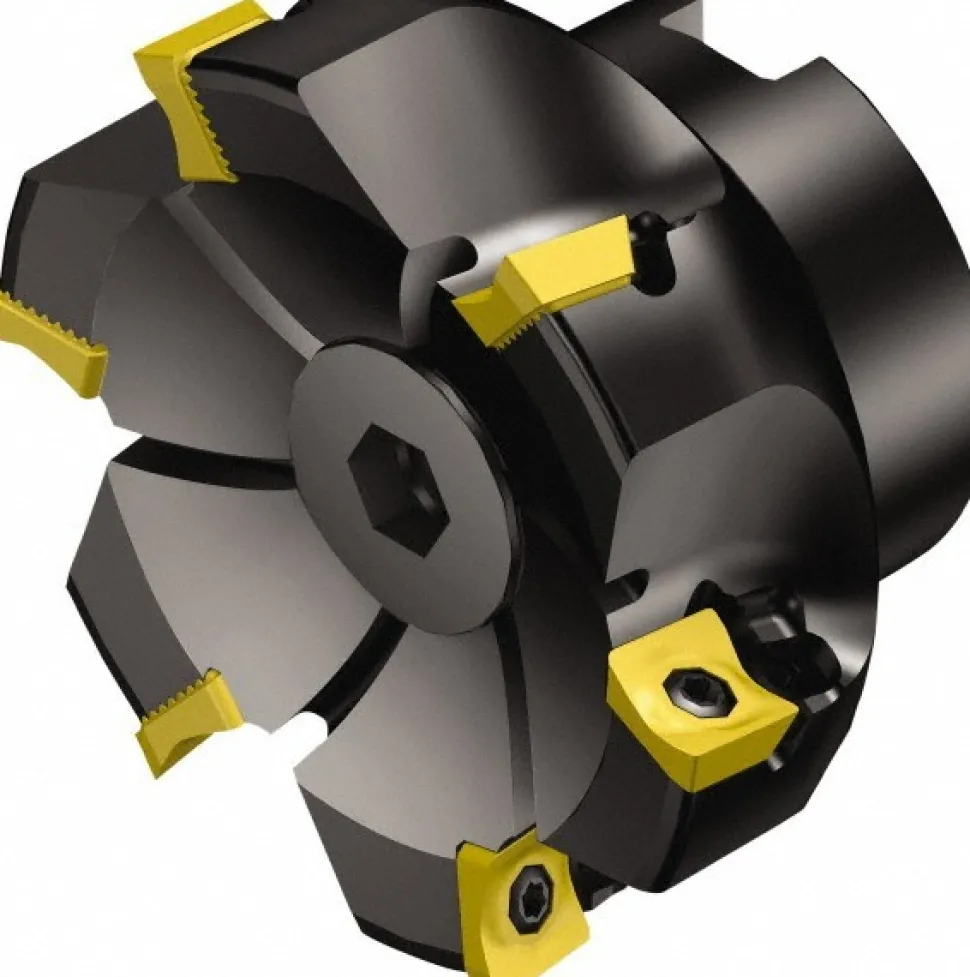

2-1/2″ Cut Dia, 3/4″ Arbor Hole Dia, 11mm Max Depth, Indexable Square-Shoulder Face Mill
Original price was: 1 433,00 $.134,89 $Current price is: 134,89 $.
Specifications
| Maximum Cutting Diameter (Inch): 2-1/2 | Maximum Cutting Diameter (mm): 63.50 |
| Maximum Depth of Cut (mm): 11.00 | Maximum Depth of Cut (Decimal Inch): 0.4331 |
| Arbor Hole Diameter (Inch): 3/4 | Arbor Hole Diameter (Decimal Inch): 0.7500 |
| Compatible Insert Size Code: R590-1105.. | Cutter Style: RA590 |
| Cutting Direction: Right Hand | Insert Holding Method: Screw; Clamp |
| Lead Angle: 90 | Rake: Positive |
| Series: CoroMill Century | Maximum Body Diameter (Decimal Inch): 2.4685 |
| Overall Height (mm): 40.00 | Overall Height (Decimal Inch): 1.5748 |
| Keyway Width (mm): 9.75 | Keyway Width (Decimal Inch): 0.3839 |
| Hub Diameter (mm): 19.05 | Hub Diameter (Inch): 3/4 |
| Pitch Type: Close | Cutting Edge Length (Decimal Inch): 0.4331 |
| Complete Insert Compatibility: R590-1105.. | UNSPSC Code: 27112803 |
| Toolholder Material: Steel | Coolant Through: Yes |
| Number Of Cutter Inserts: 5 | Number Of Flutes: 5 |
| Country of Origin: Sweden | |
| Maximum Cutting Diameter (Inch): 2-1/2 | |
| Maximum Cutting Diameter (mm): 63.50 | |
| Maximum Depth of Cut (mm): 11.00 | |
| Maximum Depth of Cut (Decimal Inch): 0.4331 | |
| Arbor Hole Diameter (Inch): 3/4 | |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | |
| Compatible Insert Size Code: R590-1105.. | |
| Cutter Style: RA590 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw; Clamp | |
| Lead Angle: 90 | |
| Rake: Positive | |
| Series: CoroMill Century | |
| Maximum Body Diameter (Decimal Inch): 2.4685 | |
| Overall Height (mm): 40.00 | |
| Overall Height (Decimal Inch): 1.5748 | |
| Keyway Width (mm): 9.75 | |
| Keyway Width (Decimal Inch): 0.3839 | |
| Hub Diameter (mm): 19.05 | |
| Hub Diameter (Inch): 3/4 | |
| Pitch Type: Close | |
| Cutting Edge Length (Decimal Inch): 0.4331 | |
| Complete Insert Compatibility: R590-1105.. | |
| UNSPSC Code: 27112803 | |
| Toolholder Material: Steel | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 5 | |
| Number Of Flutes: 5 | |
| Country of Origin: Sweden |
| MSC# | 52084175 |
| Mfr# | 5740378 |
