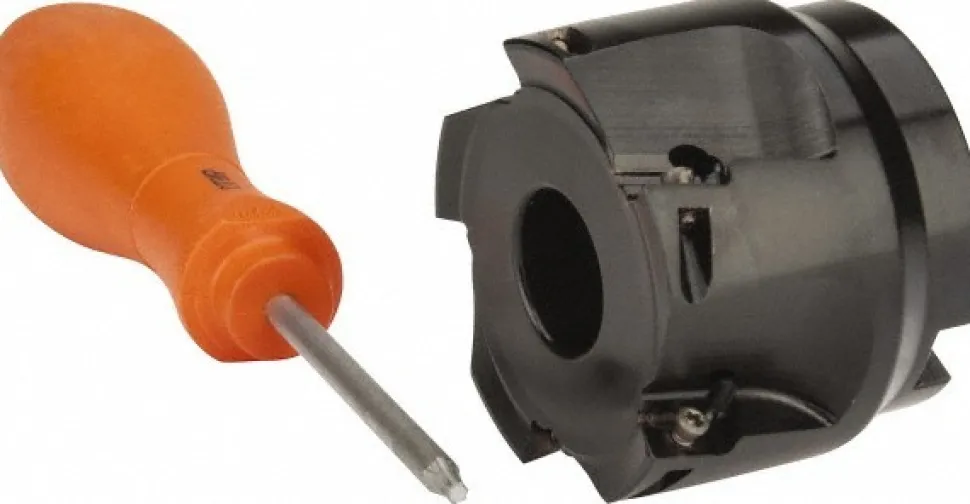

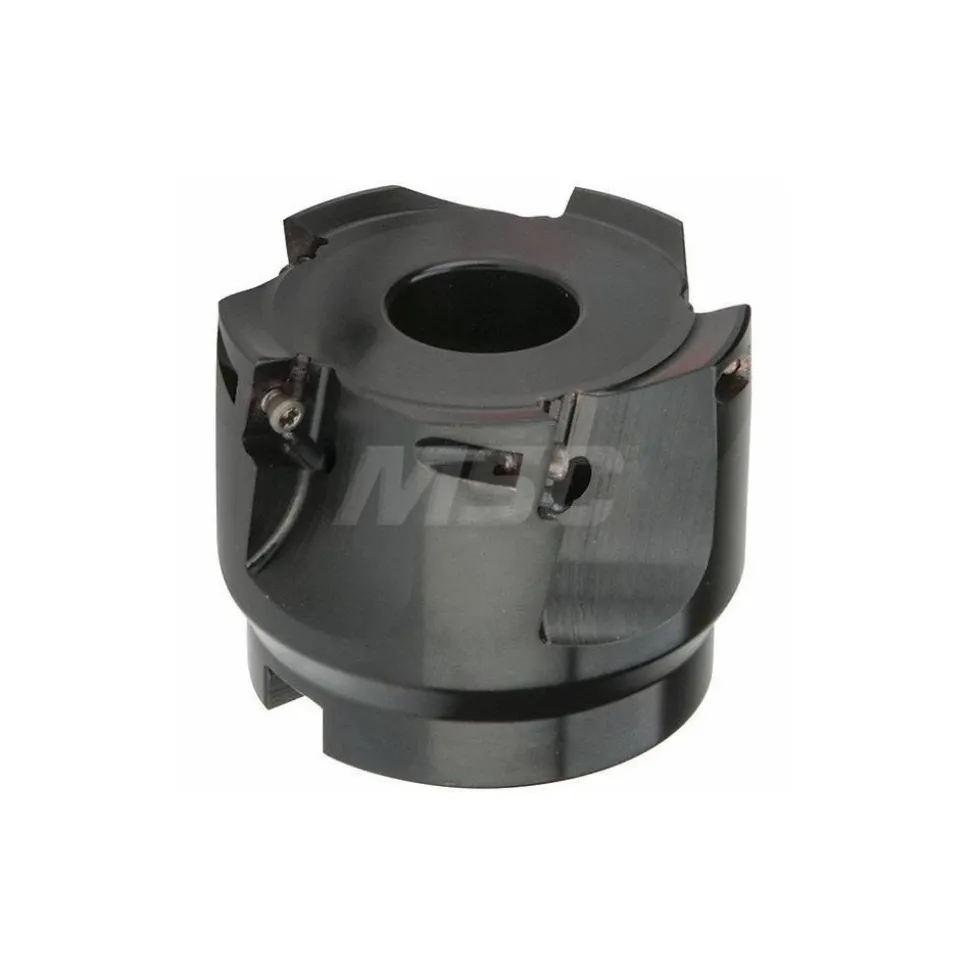

2″ Cut Dia, 3/4″ Arbor Hole Dia, 0.389″ Max Depth, Indexable Square-Shoulder Face Mill
126,99 $
Specifications

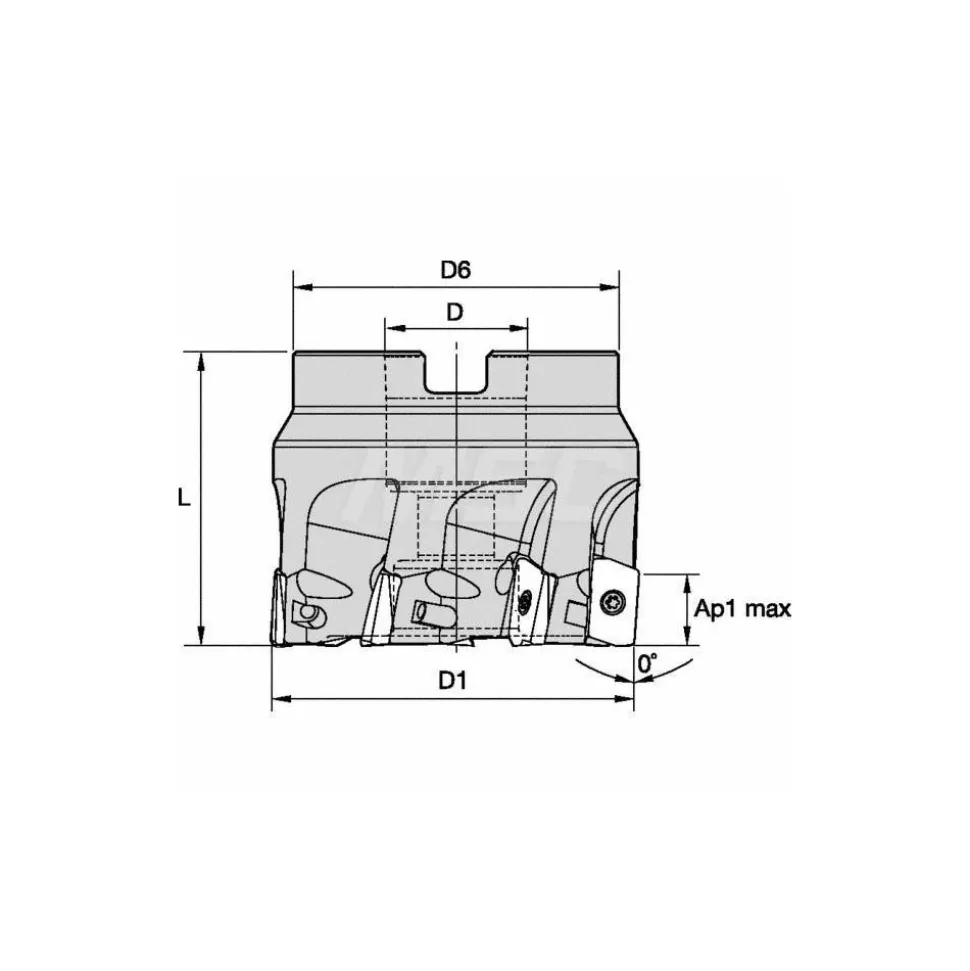

| Maximum Cutting Diameter (Inch): 2 | Maximum Cutting Diameter (Decimal Inch): 2.0000 |
| Maximum Depth of Cut (Decimal Inch): 0.3890 | Arbor Hole Diameter (Inch): 3/4 |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | Compatible Insert Size Code: EP10..; EC10.. |
| Cutting Direction: Right Hand | Insert Holding Method: Screw; Clamp |
| Lead Angle: 0/90 | Series: Mill 1-10 |
| Overall Height (Decimal Inch): 1.5750 | Hub Diameter (Decimal Inch): 1.7500 |
| Hub Diameter (Inch): 1-3/4 | Pitch Type: Coarse |
| UNSPSC Code: 27112803 | Coolant Through: No |
| Number Of Cutter Inserts: 5 | Number Of Flutes: 5 |
| Country of Origin: Bulgaria | |
| Maximum Cutting Diameter (Inch): 2 | |
| Maximum Cutting Diameter (Decimal Inch): 2.0000 | |
| Maximum Depth of Cut (Decimal Inch): 0.3890 | |
| Arbor Hole Diameter (Inch): 3/4 | |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | |
| Compatible Insert Size Code: EP10..; EC10.. | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw; Clamp | |
| Lead Angle: 0/90 | |
| Series: Mill 1-10 | |
| Overall Height (Decimal Inch): 1.5750 | |
| Hub Diameter (Decimal Inch): 1.7500 | |
| Hub Diameter (Inch): 1-3/4 | |
| Pitch Type: Coarse | |
| UNSPSC Code: 27112803 | |
| Coolant Through: No | |
| Number Of Cutter Inserts: 5 | |
| Number Of Flutes: 5 | |
| Country of Origin: Bulgaria |
| MSC# | 71015150 |
| Mfr# | 3745041 |
| Big Book# | 710 |
