Sale!

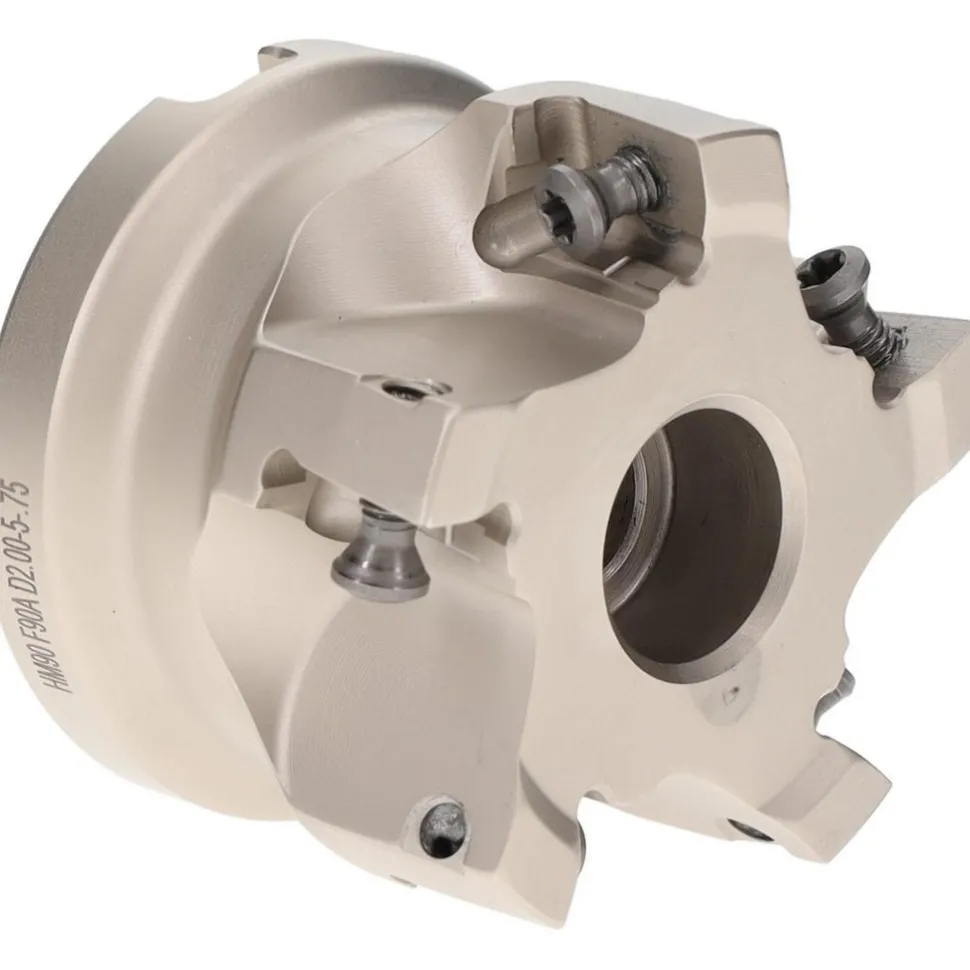

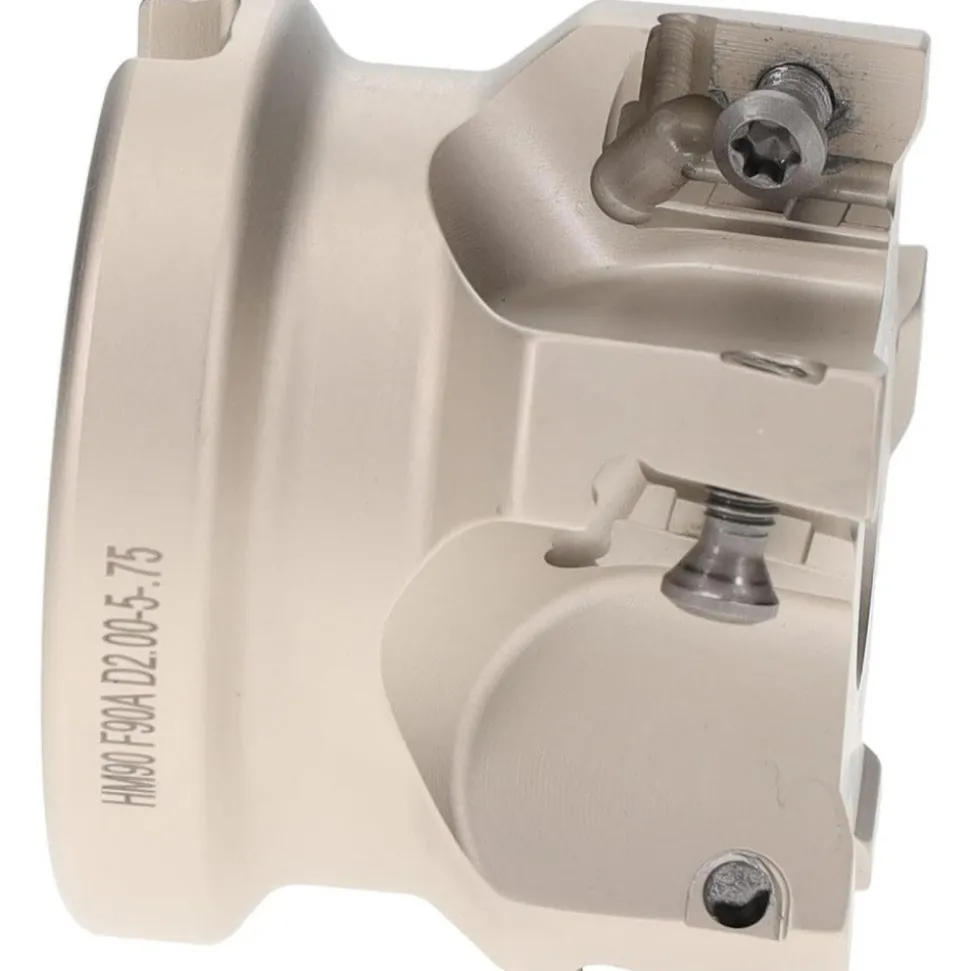

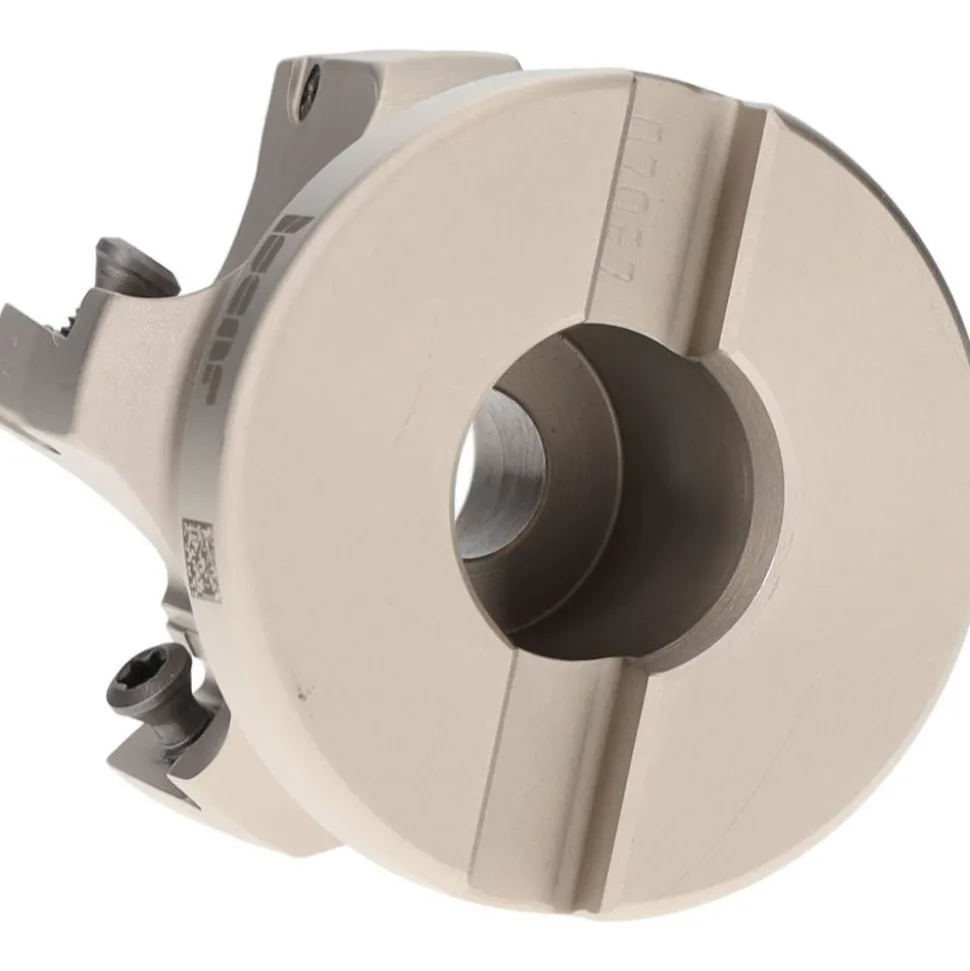

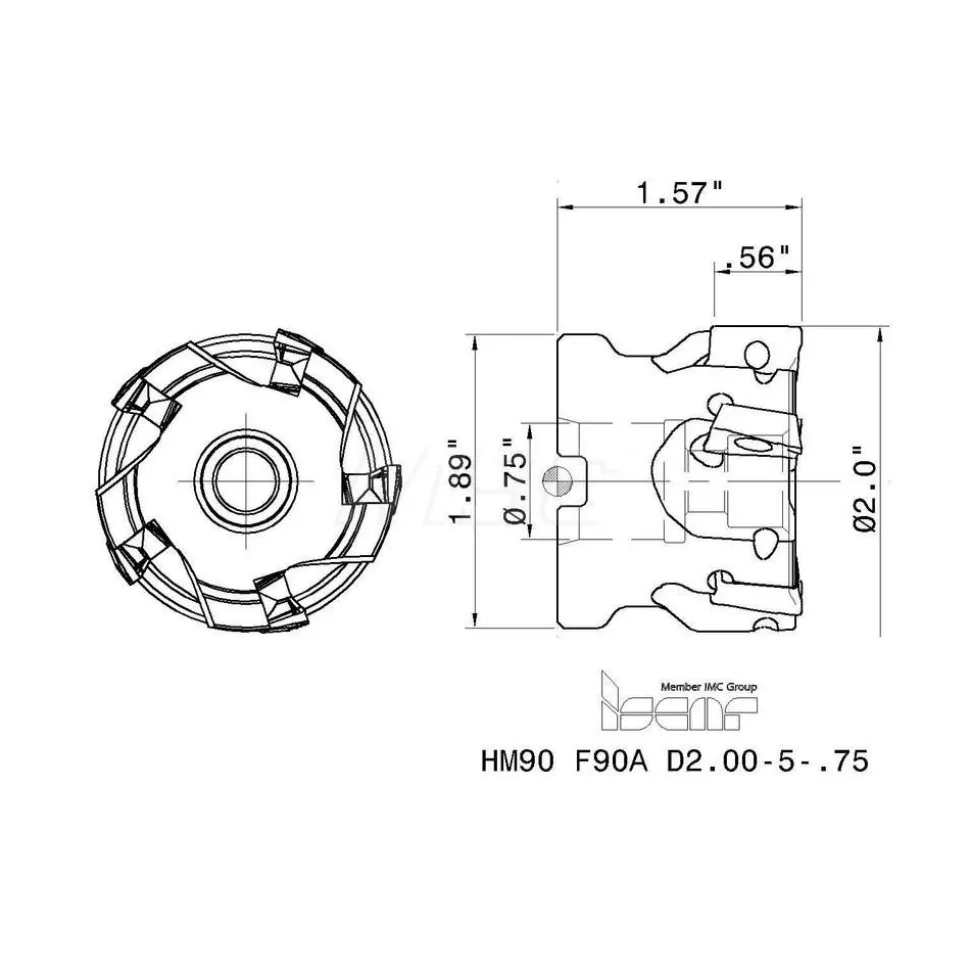

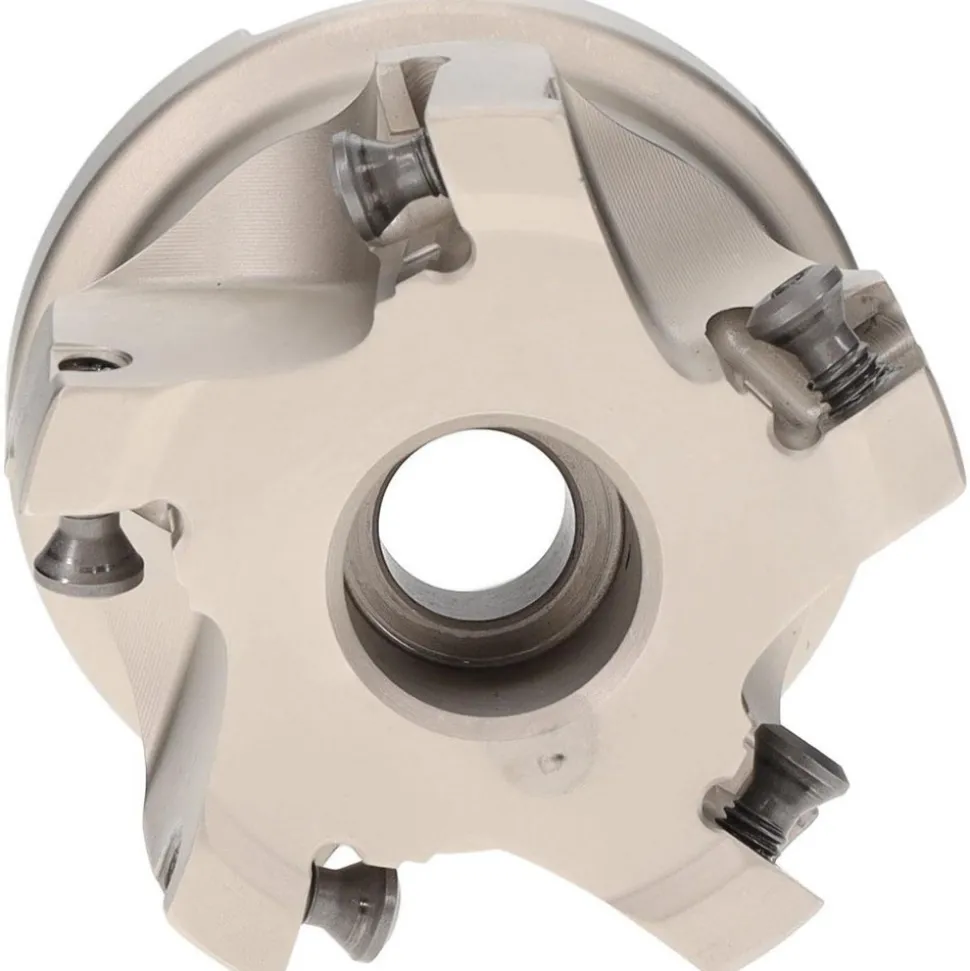

2″ Cut Dia, 3/4″ Arbor Hole Dia, 0.56″ Max Depth, Indexable Square-Shoulder Face Mill
Original price was: 607,00 $.120,89 $Current price is: 120,89 $.
Specifications
| Maximum Cutting Diameter (Inch): 2 | Maximum Cutting Diameter (Decimal Inch): 2.0000 |
| Maximum Depth of Cut (Decimal Inch): 0.5600 | Arbor Hole Diameter (Inch): 3/4 |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | Compatible Insert Size Code: AD 1505; HM90 AD 1505 |
| Cutter Style: HM90 F90A-15 | Cutting Direction: Right Hand |
| Insert Holding Method: Screw; Clamp | Lead Angle: 0/90 |
| Series: HM90 | Maximum Ramping Angle: 2.60 |
| Overall Height (Decimal Inch): 1.5700 | Keyway Width (Decimal Inch): 0.3125 |
| Hub Diameter (Decimal Inch): 1.8900 | Standards: ISO |
| UNSPSC Code: 27112803 | Manufacturers Catalog Number: HM90 F90A D2.00-5-.75 |
| Keyway Depth (Decimal Inch): 0.1875 | Coolant Through: No |
| Number Of Cutter Inserts: 5 | Number Of Flutes: 5 |
| Country of Origin: Israel | |
| Maximum Cutting Diameter (Inch): 2 | |
| Maximum Cutting Diameter (Decimal Inch): 2.0000 | |
| Maximum Depth of Cut (Decimal Inch): 0.5600 | |
| Arbor Hole Diameter (Inch): 3/4 | |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | |
| Compatible Insert Size Code: AD 1505; HM90 AD 1505 | |
| Cutter Style: HM90 F90A-15 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw; Clamp | |
| Lead Angle: 0/90 | |
| Series: HM90 | |
| Maximum Ramping Angle: 2.60 | |
| Overall Height (Decimal Inch): 1.5700 | |
| Keyway Width (Decimal Inch): 0.3125 | |
| Hub Diameter (Decimal Inch): 1.8900 | |
| Standards: ISO | |
| UNSPSC Code: 27112803 | |
| Manufacturers Catalog Number: HM90 F90A D2.00-5-.75 | |
| Keyway Depth (Decimal Inch): 0.1875 | |
| Coolant Through: No | |
| Number Of Cutter Inserts: 5 | |
| Number Of Flutes: 5 | |
| Country of Origin: Israel |
| MSC# | 60843489 |
| Mfr# | 3102118 |
| Big Book# | 691 |
