Sale!

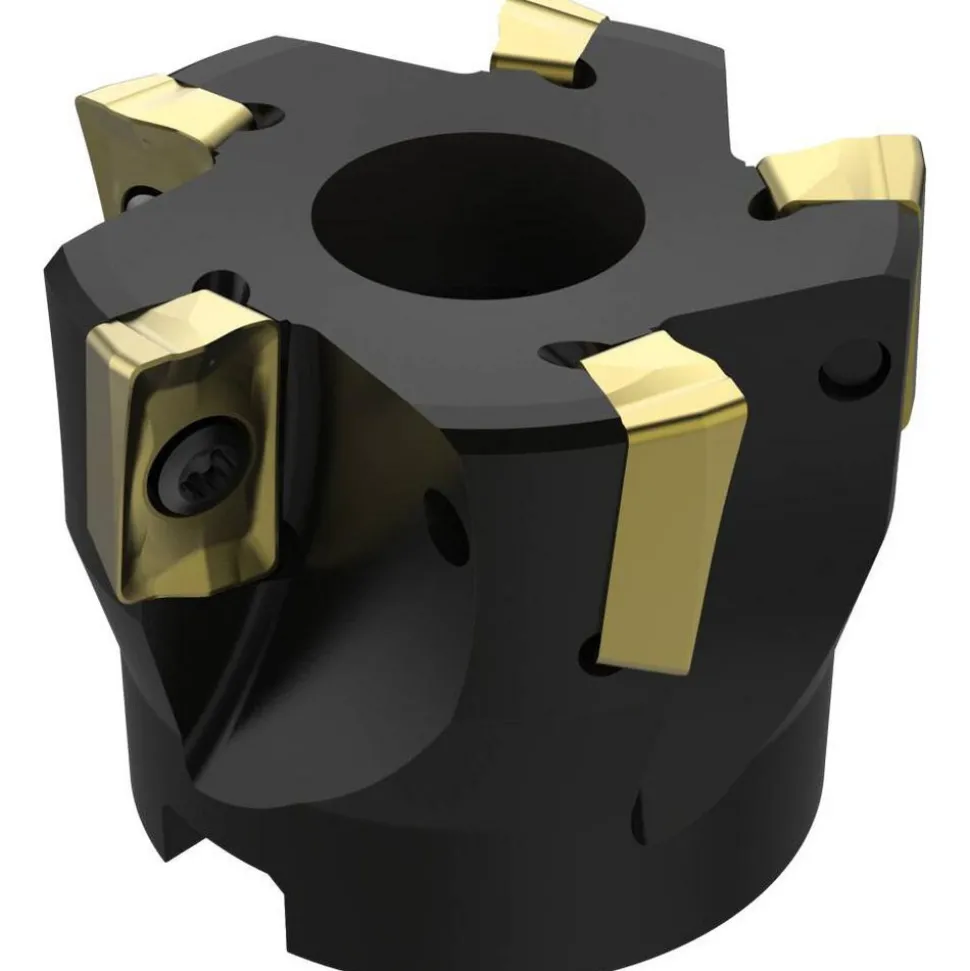

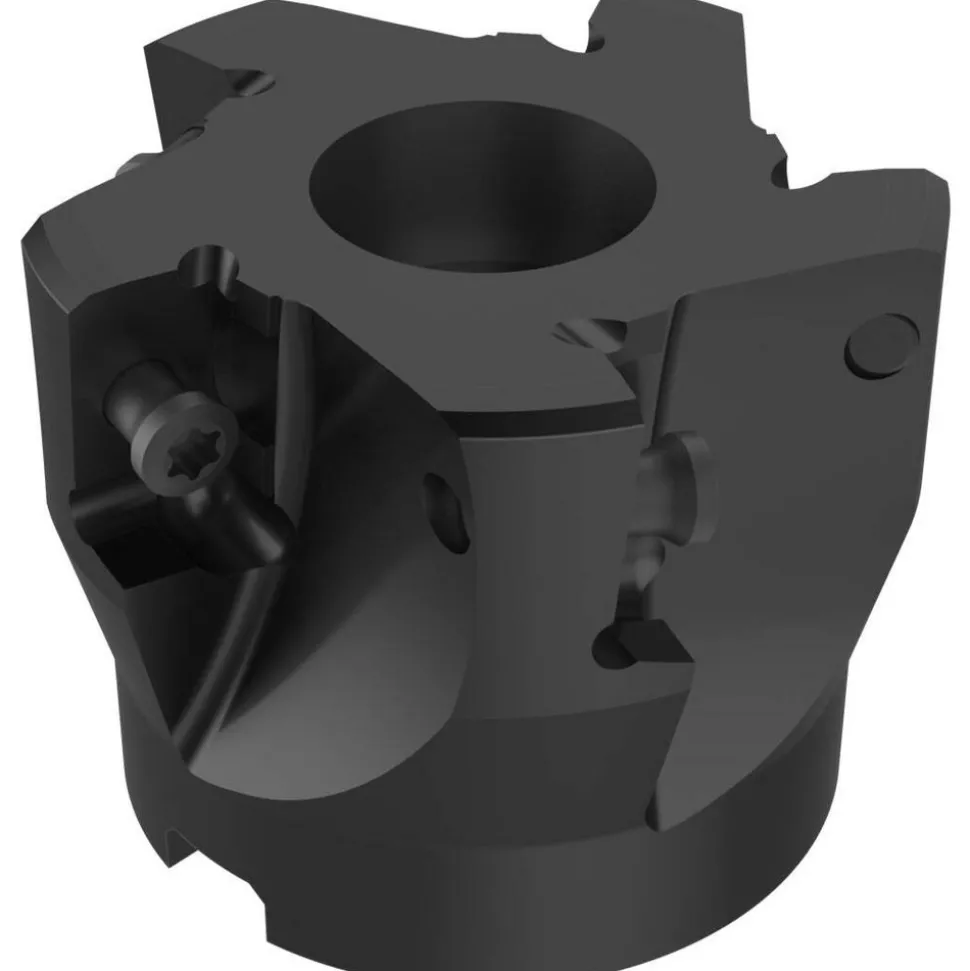

2″ Cut Dia, 3/4″ Arbor Hole Dia, 0.59″ Max Depth, Indexable Square-Shoulder Face Mill
Original price was: 966,00 $.120,99 $Current price is: 120,99 $.
Specifications
| Maximum Cutting Diameter (Inch): 2 | Maximum Cutting Diameter (Decimal Inch): 2.0000 |
| Maximum Cutting Diameter (mm): 50.80 | Maximum Depth of Cut (Decimal Inch): 0.5900 |
| Arbor Hole Diameter (Inch): 3/4 | Arbor Hole Diameter (Decimal Inch): 0.7500 |
| Compatible Insert Size Code: AP 1604 | Cutter Style: R220.69 |
| Cutting Direction: Right Hand | Insert Holding Method: Screw; Clamp |
| Lead Angle: 0/90 | Rake: Positive (Axial); Negative (Radial) |
| Series: R220.69 | Maximum Ramping Angle: 1.00 |
| Overall Height (Decimal Inch): 1.5700 | Keyway Width (Decimal Inch): 0.3200 |
| Hub Diameter (mm): 47.00 | Pitch Type: Medium |
| Tool Application: Helical Interpolation; Ramping; Slotting | Standards: ISO |
| UNSPSC Code: 27112803 | Coolant Through: No |
| Number Of Cutter Inserts: 5 | Number Of Flutes: 5 |
| Country of Origin: India | |
| Maximum Cutting Diameter (Inch): 2 | |
| Maximum Cutting Diameter (Decimal Inch): 2.0000 | |
| Maximum Cutting Diameter (mm): 50.80 | |
| Maximum Depth of Cut (Decimal Inch): 0.5900 | |
| Arbor Hole Diameter (Inch): 3/4 | |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | |
| Compatible Insert Size Code: AP 1604 | |
| Cutter Style: R220.69 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw; Clamp | |
| Lead Angle: 0/90 | |
| Rake: Positive (Axial); Negative (Radial) | |
| Series: R220.69 | |
| Maximum Ramping Angle: 1.00 | |
| Overall Height (Decimal Inch): 1.5700 | |
| Keyway Width (Decimal Inch): 0.3200 | |
| Hub Diameter (mm): 47.00 | |
| Pitch Type: Medium | |
| Tool Application: Helical Interpolation; Ramping; Slotting | |
| Standards: ISO | |
| UNSPSC Code: 27112803 | |
| Coolant Through: No | |
| Number Of Cutter Inserts: 5 | |
| Number Of Flutes: 5 | |
| Country of Origin: India |
| MSC# | 57053589 |
| Mfr# | 75503405 |
| Big Book# | 666 |
