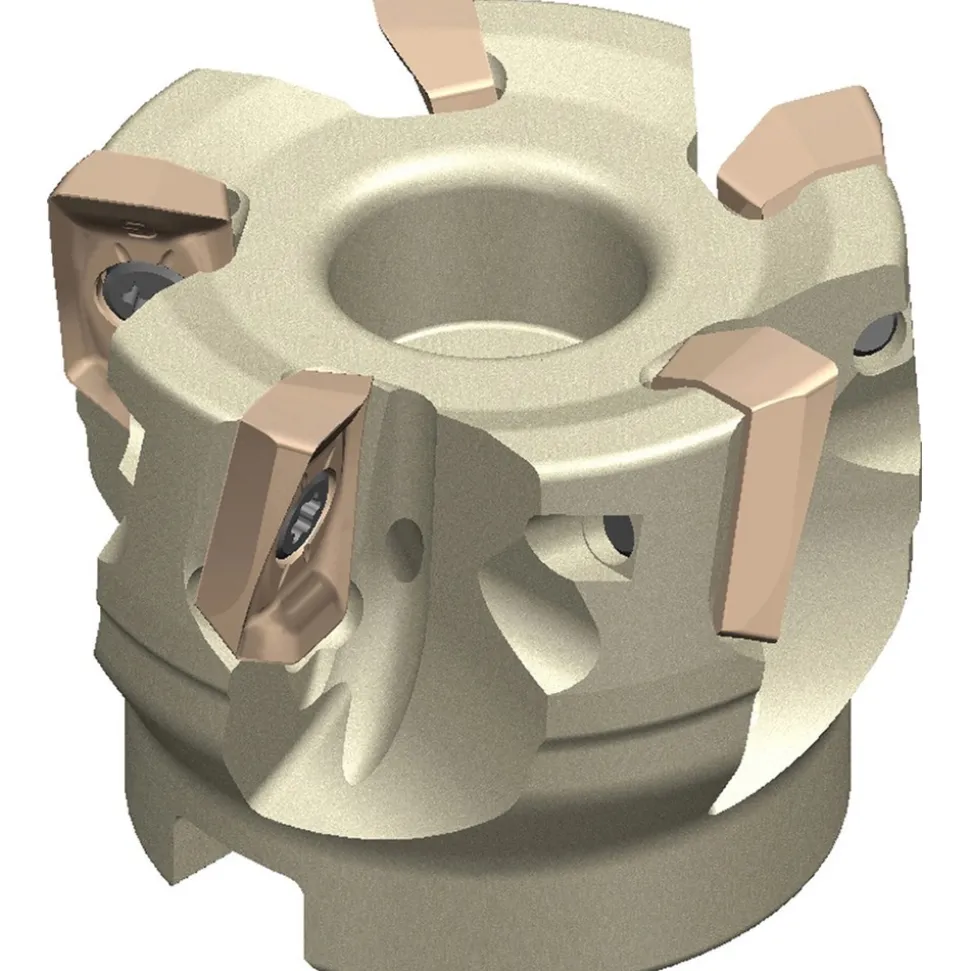

2″ Cut Dia, 3/4″ Arbor Hole Dia, 0.591″ Max Depth, Indexable Square-Shoulder Face Mill
138,99 $
Specifications
| Maximum Cutting Diameter (Inch): 2 | Maximum Cutting Diameter (Decimal Inch): 2.0000 |
| Maximum Depth of Cut (Decimal Inch): 0.5910 | Arbor Hole Diameter (Inch): 3/4 |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | Compatible Insert Size Code: AOMT17; AOET17 |
| Cutter Style: WEZ | Cutting Direction: Right Hand |
| Insert Holding Method: Screw; Clamp | Lead Angle: 90 |
| Series: WEZ | Overall Height (Inch): 1-3/4 |
| Overall Height (Decimal Inch): 1.7500 | UNSPSC Code: 27112803 |
| Toolholder Material: Steel | Manufacturers Catalog Number: WEZ32000R05 |
| Coolant Through: Yes | Number Of Cutter Inserts: 5 |
| Country of Origin: Japan | |
| Maximum Cutting Diameter (Inch): 2 | |
| Maximum Cutting Diameter (Decimal Inch): 2.0000 | |
| Maximum Depth of Cut (Decimal Inch): 0.5910 | |
| Arbor Hole Diameter (Inch): 3/4 | |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | |
| Compatible Insert Size Code: AOMT17; AOET17 | |
| Cutter Style: WEZ | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw; Clamp | |
| Lead Angle: 90 | |
| Series: WEZ | |
| Overall Height (Inch): 1-3/4 | |
| Overall Height (Decimal Inch): 1.7500 | |
| UNSPSC Code: 27112803 | |
| Toolholder Material: Steel | |
| Manufacturers Catalog Number: WEZ32000R05 | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 5 | |
| Country of Origin: Japan |
| MSC# | 11303278 |
| Mfr# | 2200WNB |
