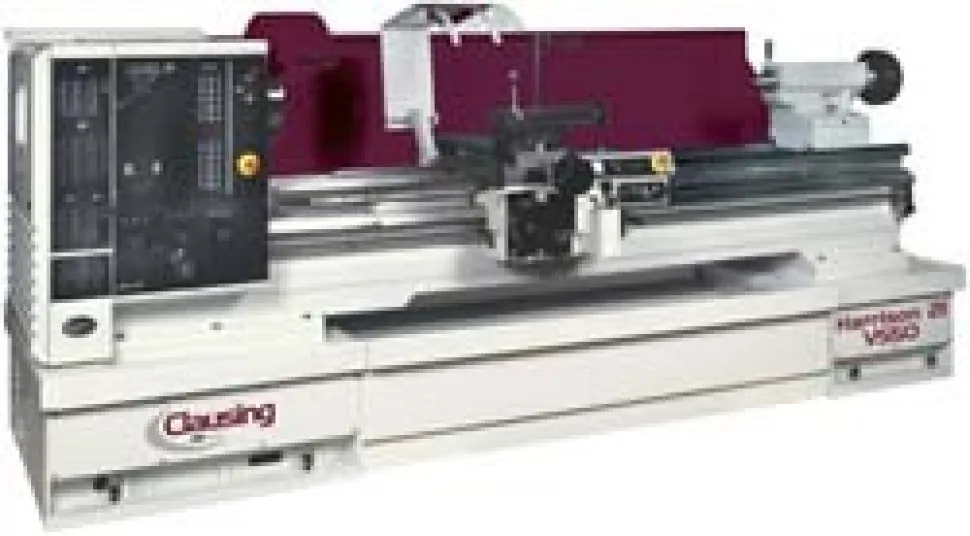

21-7/8″ x 120″ Engine Lathe: Frequency, 15 hp, 230 V
132,89 $
Specifications
| Lathe Type: Toolroom | Phase: Three |
| Voltage: 230V | Swing (Inch): 21-7/8 |
| Bed Width (Inch): 15.7480 | Distance Between Centers (Inch): 120 |
| Spindle Speed Control: Frequency | Spindle Bore Diameter (mm): 90.00 |
| Cross Slide Travel (Inch): 11-7/8 | Cross Slide Travel (mm): 301.63 |
| Gap Length (Decimal Inch): 8.5000 | Gap Length (mm): 215.90 |
| Maximum Metric Pitch (Decimal Inch): 0.5512 | Minimum Spindle Speed: 18 |
| Spindle Nose Designation: D1-11 | Maximum Spindle Speed (RPM): 1800 |
| Overall Depth (Inch): 67 | Overall Depth (Decimal Inch): 67.0000 |
| Overall Height (Inch): 81 | Overall Length (Inch): 187 |
| Overall Length (Decimal Inch): 187.0000 | Max. Longitudinal Feed Rate Per Revolution (mm): 2.79 |
| Minimum Metric Pitch (Decimal Inch): 0.0079 | Cross Slide Travel (Decimal Inch): 11.8750 |
| Number of Inch Threads: 79 | Number of Metric Threads: 78 |
| Tailstock Travel (mm): 177.80 | Spindle Taper Size: 5MT |
| Tailstock Taper Size: 6MT | Tailstock Travel (Decimal Inch): 7.0000 |
| Overall Height (Decimal Inch): 81.0000 | Top Slide Travel (Decimal Inch): 6.8750 |
| Top Slide Travel (mm): 174.63 | Maximum Cross Feed Rate Per Revolution (mm): 1.40 |
| UNSPSC Code: 23242300 | Maximum Threads Per Inch: 84 |
| Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0016 | Minimum Threads Per Inch: 2 |
| Swing Over Cross Slide (mm): 368.30 | Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.1100 |
| Min. Cross Feed Rate Per Revolution (Decimal Inch): 0.000800 | Max. Cross Feed Rate Per Revolution (Decimal Inch): 0.0550 |
| Swing Over Cross Slide (Decimal Inch): 14.5000 | Swing Over Cross Slide (Inch): 14-1/2 |
| Series: Harrison | Swing Over Gap (Inch): 32-3/4 |
| Swing Over Gap (Decimal Inch): 32.7500 | Swing Over Gap: 831.85 mm; 32.75 in |
| Country of Origin: Taiwan | |
| Lathe Type: Toolroom | |
| Phase: Three | |
| Voltage: 230V | |
| Swing (Inch): 21-7/8 | |
| Bed Width (Inch): 15.7480 | |
| Distance Between Centers (Inch): 120 | |
| Spindle Speed Control: Frequency | |
| Spindle Bore Diameter (mm): 90.00 | |
| Cross Slide Travel (Inch): 11-7/8 | |
| Cross Slide Travel (mm): 301.63 | |
| Gap Length (Decimal Inch): 8.5000 | |
| Gap Length (mm): 215.90 | |
| Maximum Metric Pitch (Decimal Inch): 0.5512 | |
| Minimum Spindle Speed: 18 | |
| Spindle Nose Designation: D1-11 | |
| Maximum Spindle Speed (RPM): 1800 | |
| Overall Depth (Inch): 67 | |
| Overall Depth (Decimal Inch): 67.0000 | |
| Overall Height (Inch): 81 | |
| Overall Length (Inch): 187 | |
| Overall Length (Decimal Inch): 187.0000 | |
| Max. Longitudinal Feed Rate Per Revolution (mm): 2.79 | |
| Minimum Metric Pitch (Decimal Inch): 0.0079 | |
| Cross Slide Travel (Decimal Inch): 11.8750 | |
| Number of Inch Threads: 79 | |
| Number of Metric Threads: 78 | |
| Tailstock Travel (mm): 177.80 | |
| Spindle Taper Size: 5MT | |
| Tailstock Taper Size: 6MT | |
| Tailstock Travel (Decimal Inch): 7.0000 | |
| Overall Height (Decimal Inch): 81.0000 | |
| Top Slide Travel (Decimal Inch): 6.8750 | |
| Top Slide Travel (mm): 174.63 | |
| Maximum Cross Feed Rate Per Revolution (mm): 1.40 | |
| UNSPSC Code: 23242300 | |
| Maximum Threads Per Inch: 84 | |
| Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0016 | |
| Minimum Threads Per Inch: 2 | |
| Swing Over Cross Slide (mm): 368.30 | |
| Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.1100 | |
| Min. Cross Feed Rate Per Revolution (Decimal Inch): 0.000800 | |
| Max. Cross Feed Rate Per Revolution (Decimal Inch): 0.0550 | |
| Swing Over Cross Slide (Decimal Inch): 14.5000 | |
| Swing Over Cross Slide (Inch): 14-1/2 | |
| Series: Harrison | |
| Swing Over Gap (Inch): 32-3/4 | |
| Swing Over Gap (Decimal Inch): 32.7500 | |
| Swing Over Gap: 831.85 mm; 32.75 in | |
| Country of Origin: Taiwan |
| MSC# | 53435806 |
| Mfr# | V550/120-EW |
| Big Book# | 1539 |
