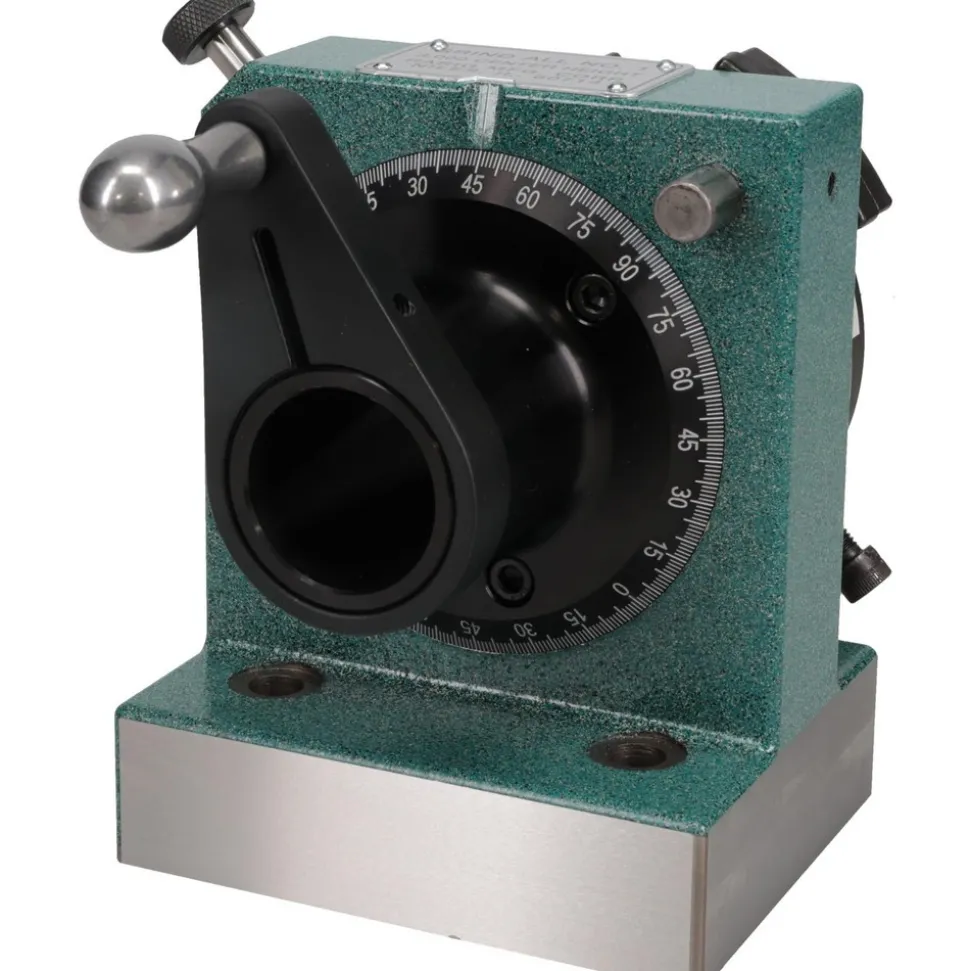

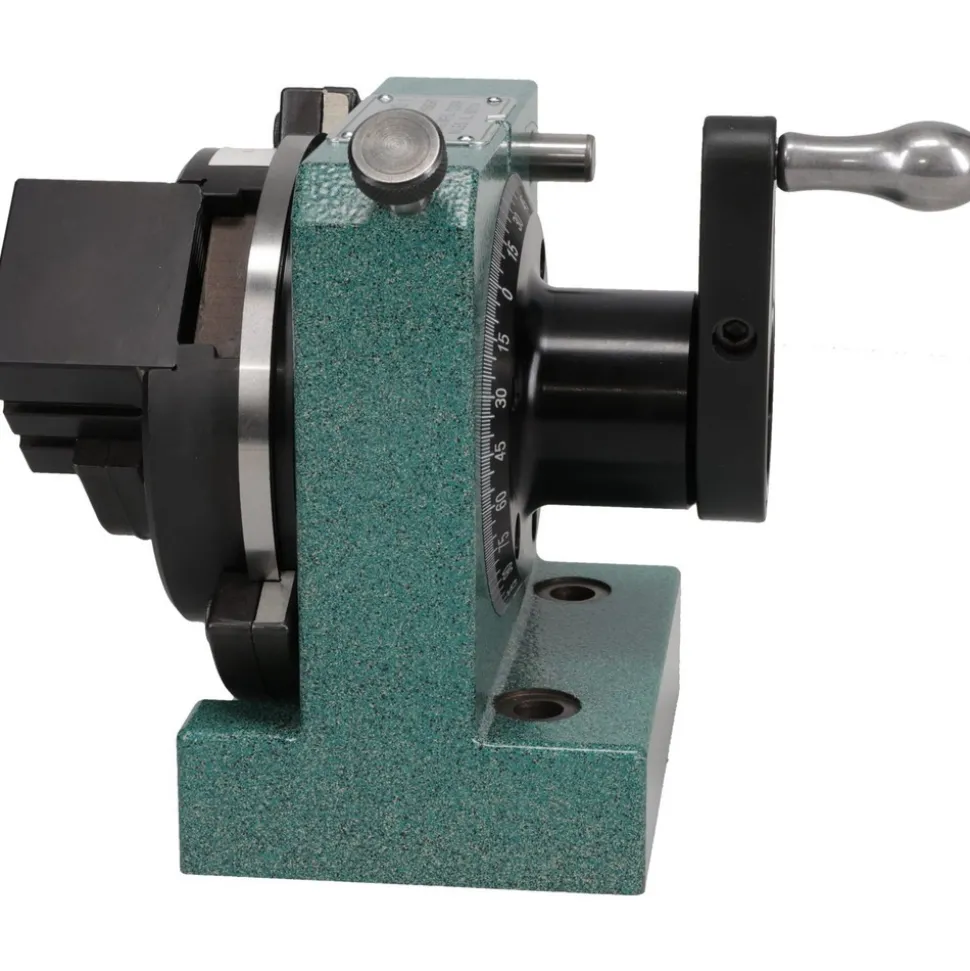

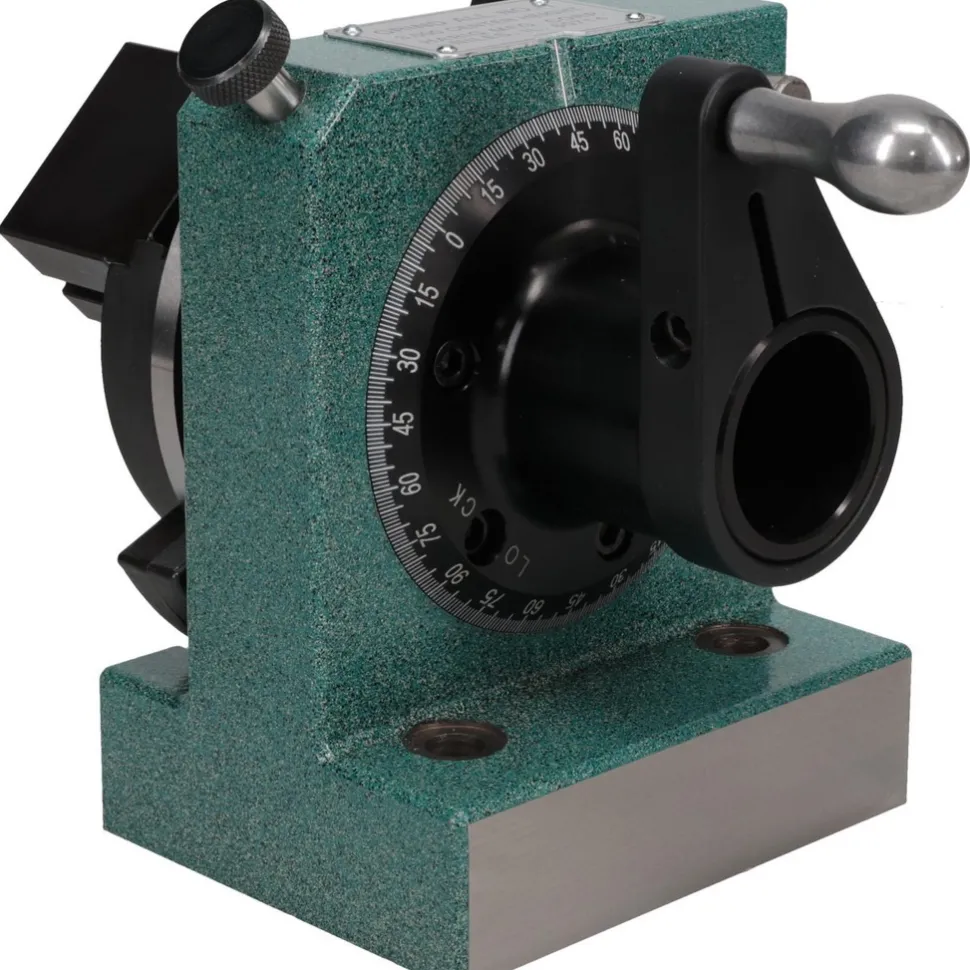

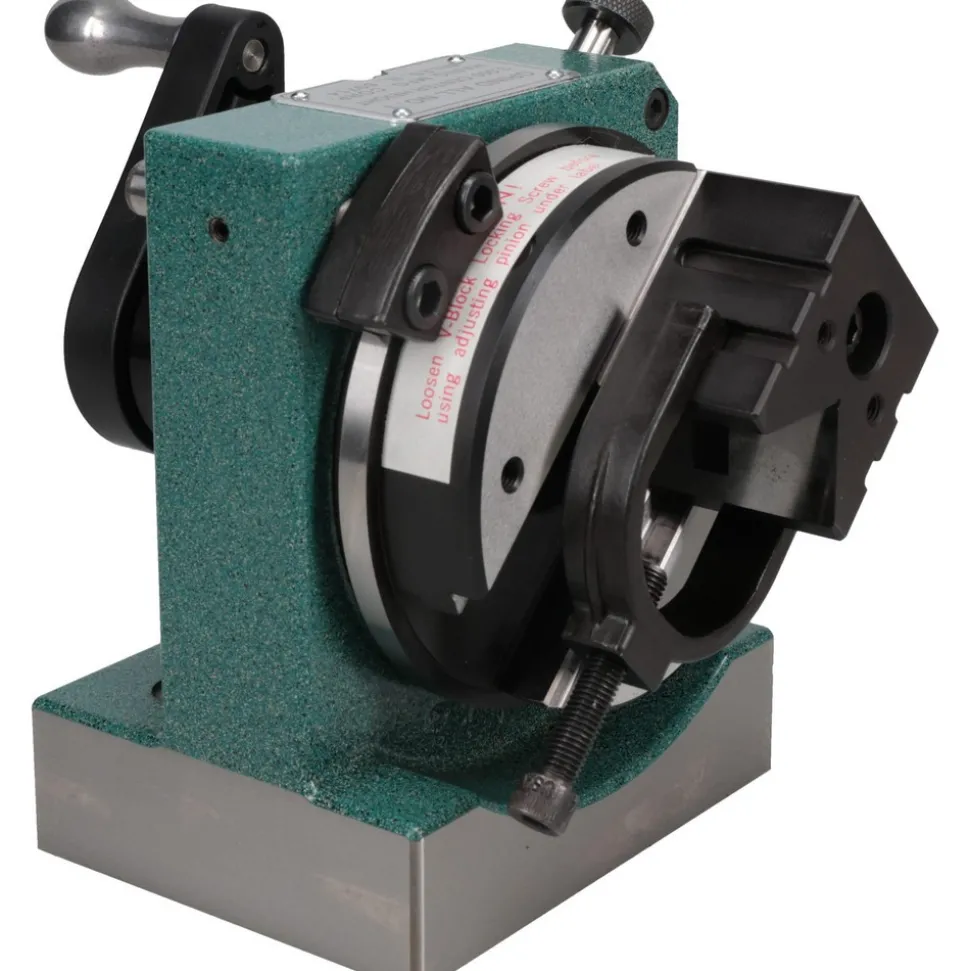

24 Position, V-Block Grinding Fixture & Indexing Spacer

Original price was: 4 638,00 $.Current price is: 132,99 $.

Specifications

Spacer Type: V-Block Fixture	Includes Chuck: No
Number Of Indexing Increments: 24	Centerline Height (Decimal Inch): 3.0000
Chuck Through Hole Size (Decimal Inch): 1.1900	V-Block Capacity (Fractional Inch): 1-1/4
Spacer Through Hole Size (Fractional Inch): 1-3/16	Masking Plate Divisions: 24
Indexing Accuracy: ±10 s	Squareness – Base to Chuck (Decimal Inch): 0.0001
Parallelism Over Face (Decimal Inch): 0.0001	Overall Length (Inch): 7-9/32
Overall Width (Decimal Inch – 4 Decimals): 4.0000	Overall Width (Inch): 4
Overall Height (Inch): 5-7/16	V-angle: 360
UNSPSC Code: 23153000	Country of Origin: UNITED STATES
Spacer Type: V-Block Fixture
Includes Chuck: No
Number Of Indexing Increments: 24
Centerline Height (Decimal Inch): 3.0000
Chuck Through Hole Size (Decimal Inch): 1.1900
V-Block Capacity (Fractional Inch): 1-1/4
Spacer Through Hole Size (Fractional Inch): 1-3/16
Masking Plate Divisions: 24
Indexing Accuracy: ±10 s
Squareness – Base to Chuck (Decimal Inch): 0.0001
Parallelism Over Face (Decimal Inch): 0.0001
Overall Length (Inch): 7-9/32
Overall Width (Decimal Inch – 4 Decimals): 4.0000
Overall Width (Inch): 4
Overall Height (Inch): 5-7/16
V-angle: 360
UNSPSC Code: 23153000
Country of Origin: UNITED STATES
