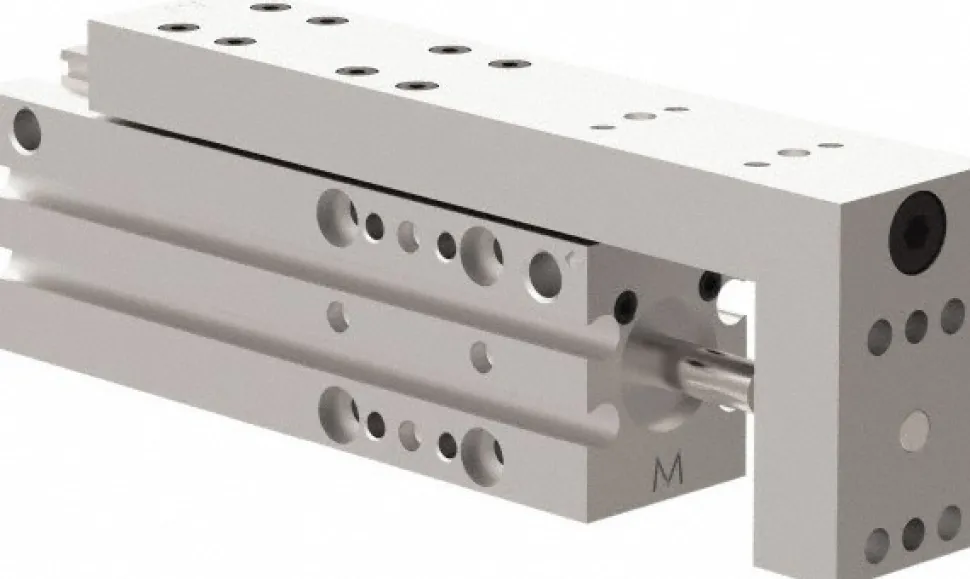

25mm Stroke, 0.4331″ Shaft Dia, Double-Acting Cylinder, Pneumatic Slide
128,89 $
Specifications
| Product Type: Slide | Overall Length (mm): 102 |
| Overall Length (Decimal Inch): 4.0158 | Slide Type: Ball Rail Slide |
| Series: DLM | Bearing Type: Ball Bearing |
| Cylinder Type: Double-Acting | Overall Width (mm): 20 |
| Overall Width (Decimal Inch): 0.7874 | Mounting Orientation: Vertical; Horizontal |
| Number of Valve Positions: 2 | Seal Material: Buna-N |
| Minimum Operating Temperature (F): -30 | Minimum Operating Temperature (C): -35 |
| Maximum Operating Temperature (C): 80 | Maximum Operating Temperature (F): 180 |
| Minimum Operating Pressure (bar): 1.40 | Minimum Operating Pressure (psi): 20 |
| Maximum Operating Pressure (psi): 100 | Stroke (mm): 25 |
| Stroke (Inch): 0.9843 | Horizontal Load Capacity (kg): 0.23 |
| Horizontal Load Capacity (Lb.): 1/2 | Bore Diameter (Inch): 0.4331 |
| Bore Diameter (mm): 11 | Special Features: Multiple Mounting Locations; Multiple Air Port Positions; Precision Hard Stop; Sensing; Stroke Adjustments; Thru Mounting; Manifold Air Porting |
| Shaft Diameter (mm): 11 | Shaft Diameter (Decimal Inch): 0.4331 |
| UNSPSC Code: 40141633 | |
| Product Type: Slide | |
| Overall Length (mm): 102 | |
| Overall Length (Decimal Inch): 4.0158 | |
| Slide Type: Ball Rail Slide | |
| Series: DLM | |
| Bearing Type: Ball Bearing | |
| Cylinder Type: Double-Acting | |
| Overall Width (mm): 20 | |
| Overall Width (Decimal Inch): 0.7874 | |
| Mounting Orientation: Vertical; Horizontal | |
| Number of Valve Positions: 2 | |
| Seal Material: Buna-N | |
| Minimum Operating Temperature (F): -30 | |
| Minimum Operating Temperature (C): -35 | |
| Maximum Operating Temperature (C): 80 | |
| Maximum Operating Temperature (F): 180 | |
| Minimum Operating Pressure (bar): 1.40 | |
| Minimum Operating Pressure (psi): 20 | |
| Maximum Operating Pressure (psi): 100 | |
| Stroke (mm): 25 | |
| Stroke (Inch): 0.9843 | |
| Horizontal Load Capacity (kg): 0.23 | |
| Horizontal Load Capacity (Lb.): 1/2 | |
| Bore Diameter (Inch): 0.4331 | |
| Bore Diameter (mm): 11 | |
| Special Features: Multiple Mounting Locations; Multiple Air Port Positions; Precision Hard Stop; Sensing; Stroke Adjustments; Thru Mounting; Manifold Air Porting | |
| Shaft Diameter (mm): 11 | |
| Shaft Diameter (Decimal Inch): 0.4331 | |
| UNSPSC Code: 40141633 |
| MSC# | 68409424 |
| Mfr# | DLM-07M-25-25-P |
