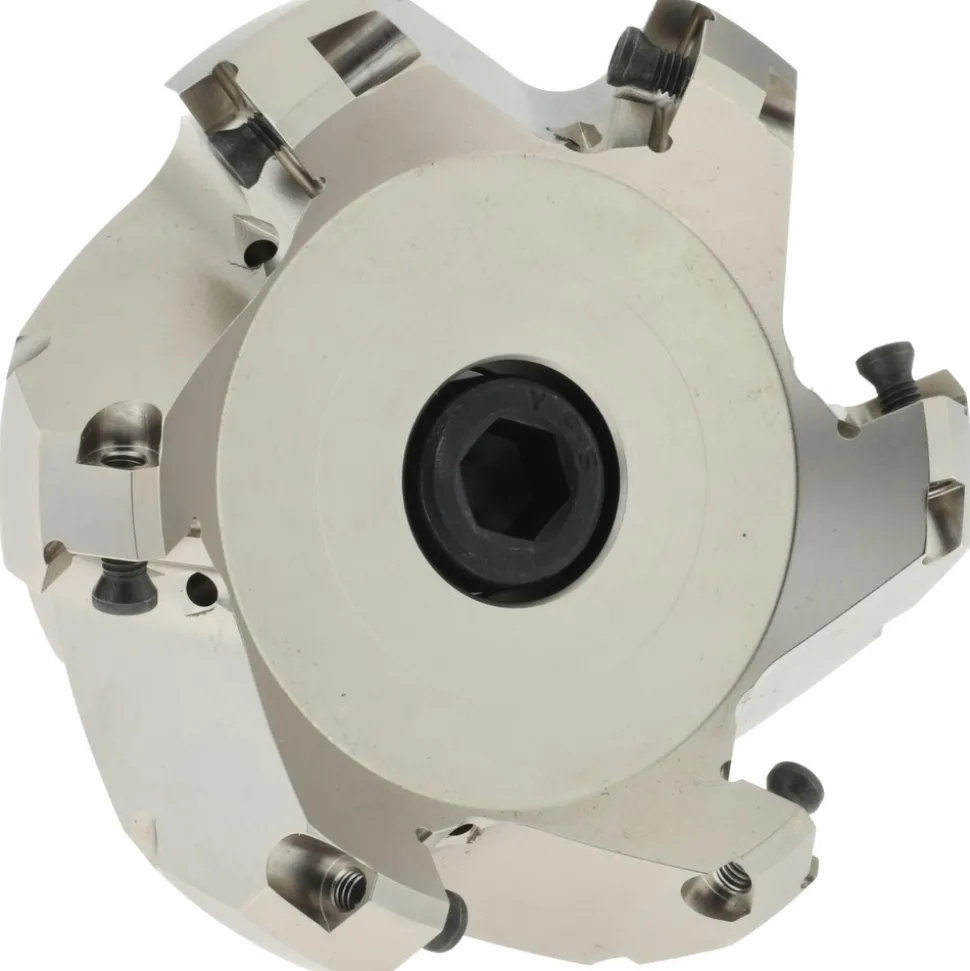

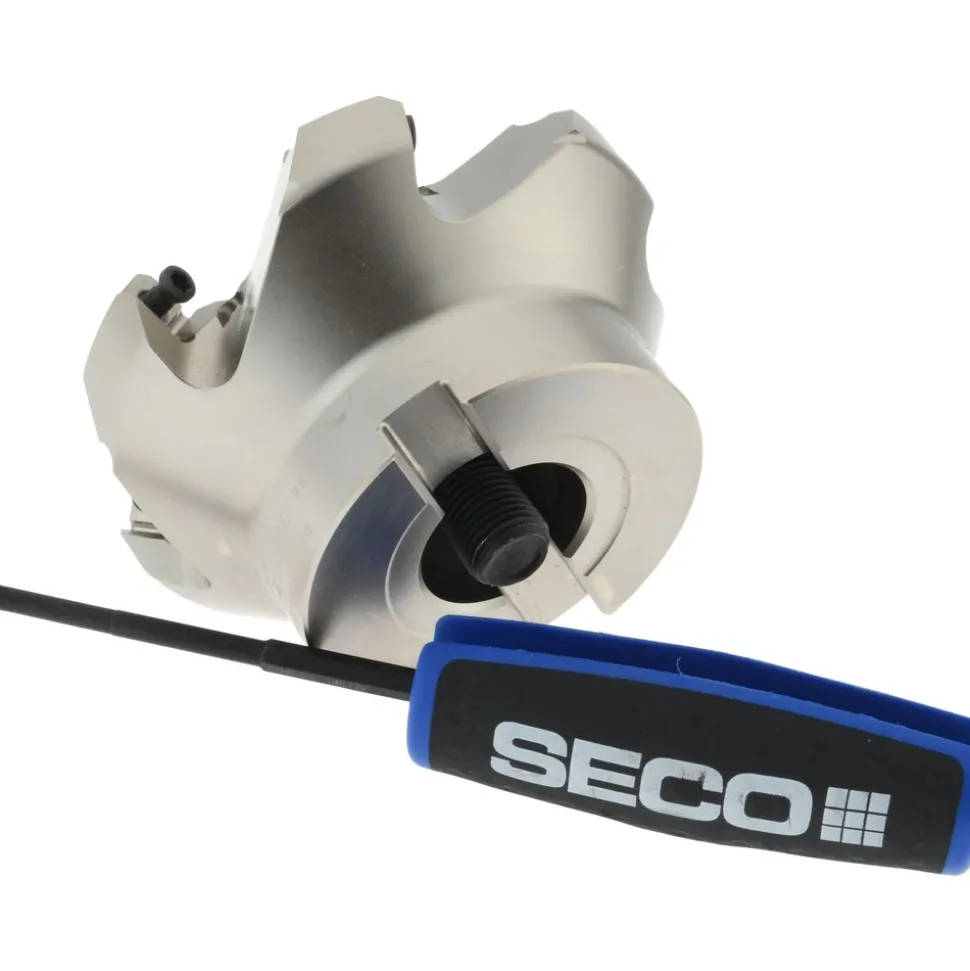

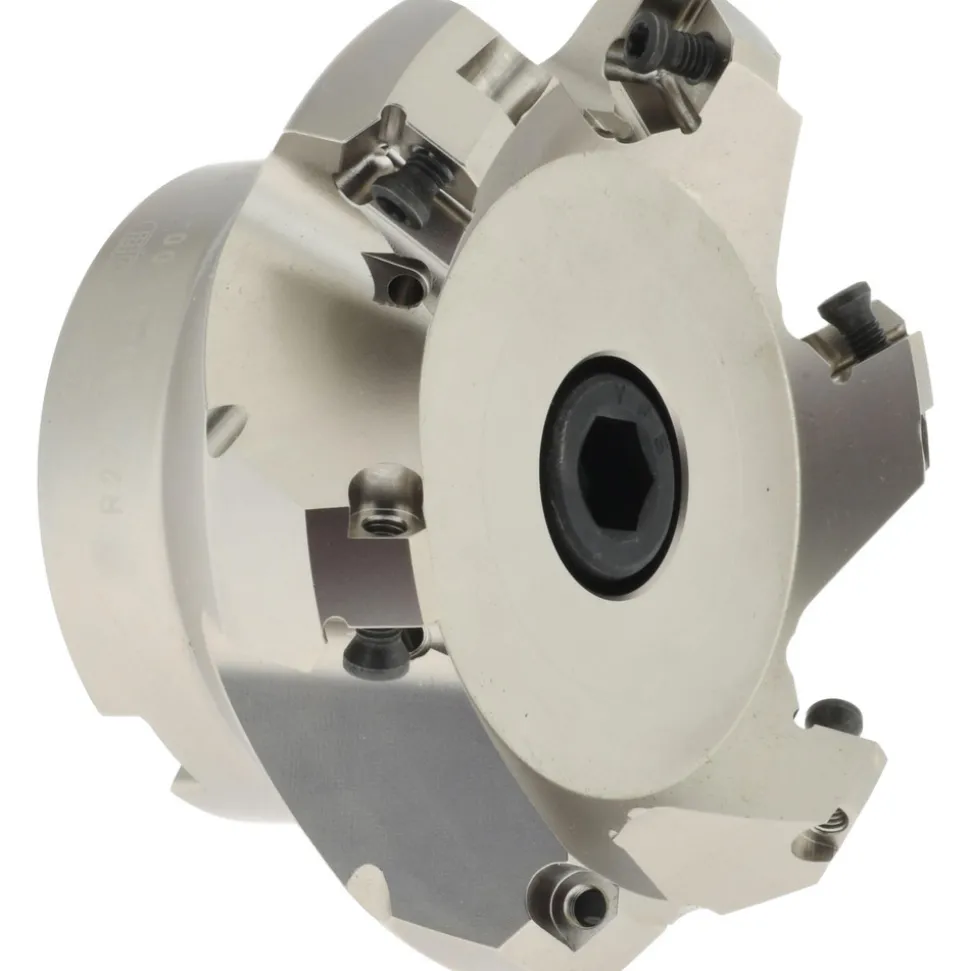

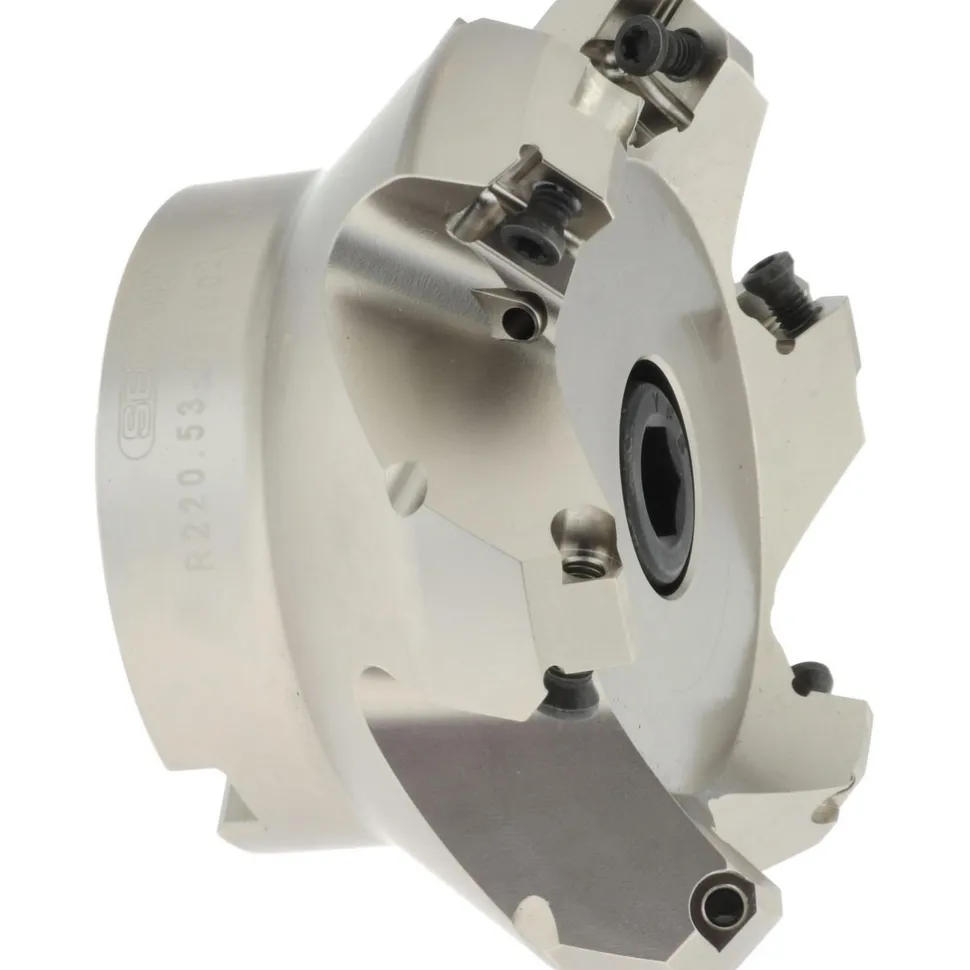

3.15″ Cut Dia, 1″ Arbor Hole, 0.236″ Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill
122,99 $
Specifications
| Minimum Cutting Diameter (Decimal Inch): 3.1500 | Maximum Cutting Diameter (Decimal Inch): 3.6200 |
| Maximum Depth of Cut (Decimal Inch): 0.2360 | Arbor Hole Diameter (Decimal Inch): 1.0000 |
| Arbor Hole Diameter (Inch): 1 | Compatible Insert Size Code: SE X 1204 |
| Cutter Style: R220.53 | Cutting Direction: Right Hand |
| Insert Holding Method: Screw | Rake: Negative (Radial); Positive (Axial) |
| Series: R220.53 | Hub Diameter (Decimal Inch): 2.4410 |
| Keyway Width (mm): 9.70 | Keyway Width (Decimal Inch): 0.3800 |
| Overall Height (Decimal Inch): 1.9700 | Maximum Body Diameter (Decimal Inch): 3.6200 |
| Pitch Type: Normal | Maximum RPM: 11700 |
| Tool Application: Facing | Number Of Cutter Inserts: 6 |
| Coolant Through: Yes | Number Of Flutes: 6 |
| UNSPSC Code: 23291600 | Country of Origin: India |
| Minimum Cutting Diameter (Decimal Inch): 3.1500 | |
| Maximum Cutting Diameter (Decimal Inch): 3.6200 | |
| Maximum Depth of Cut (Decimal Inch): 0.2360 | |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | |
| Arbor Hole Diameter (Inch): 1 | |
| Compatible Insert Size Code: SE X 1204 | |
| Cutter Style: R220.53 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw | |
| Rake: Negative (Radial); Positive (Axial) | |
| Series: R220.53 | |
| Hub Diameter (Decimal Inch): 2.4410 | |
| Keyway Width (mm): 9.70 | |
| Keyway Width (Decimal Inch): 0.3800 | |
| Overall Height (Decimal Inch): 1.9700 | |
| Maximum Body Diameter (Decimal Inch): 3.6200 | |
| Pitch Type: Normal | |
| Maximum RPM: 11700 | |
| Tool Application: Facing | |
| Number Of Cutter Inserts: 6 | |
| Coolant Through: Yes | |
| Number Of Flutes: 6 | |
| UNSPSC Code: 23291600 | |
| Country of Origin: India |
| MSC# | 08796658 |
| Mfr# | 02422144 |
| Big Book# | 674 |
