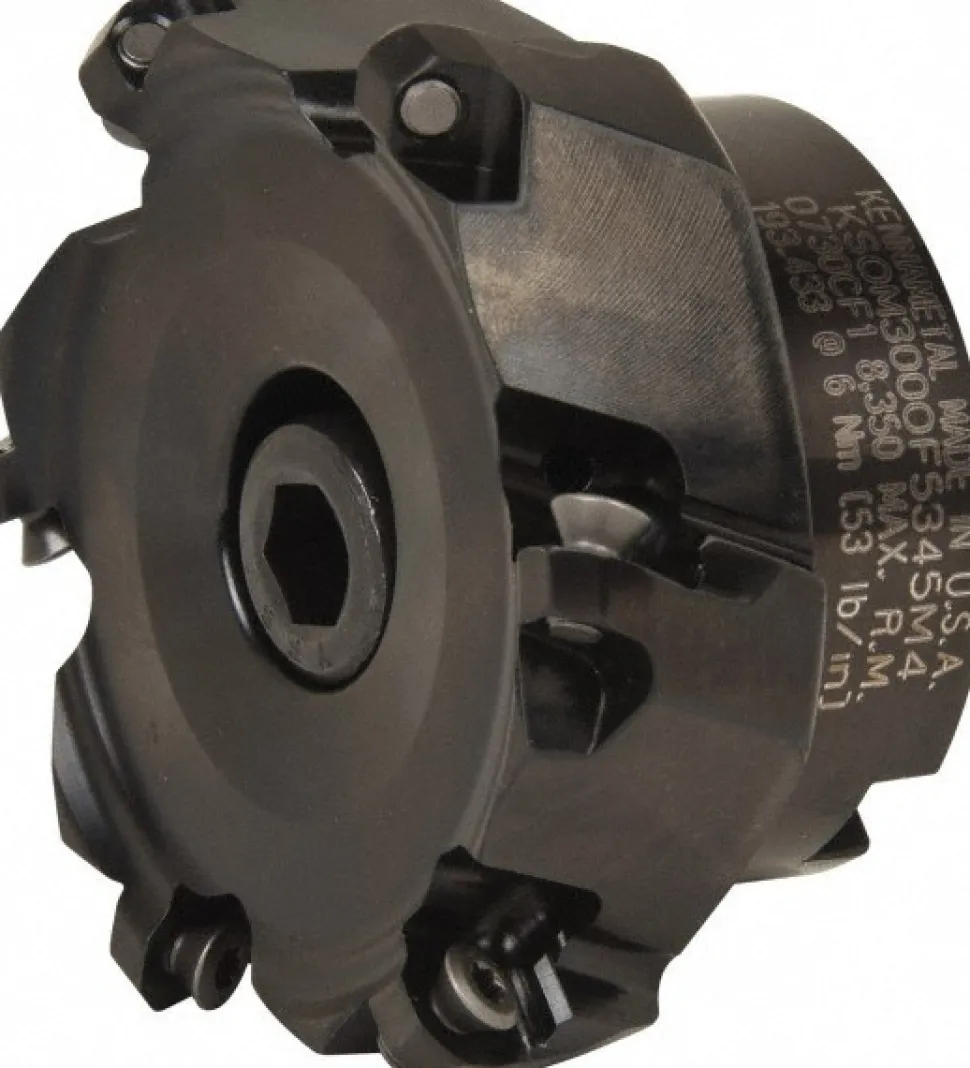

3″ Cut Dia, 1″ Arbor Hole, 3.5mm Max Depth of Cut, 43° Indexable Chamfer & Angle Face Mill
122,99 $
Specifications
| Minimum Cutting Diameter (Decimal Inch): 3.0000 | Minimum Cutting Diameter (Inch): 3 |
| Maximum Cutting Diameter (Decimal Inch): 3.3430 | Maximum Depth of Cut (mm): 3.50 |
| Maximum Depth of Cut (Decimal Inch): 0.1380 | Arbor Hole Diameter (mm): 25.40 |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | Arbor Hole Diameter (Inch): 1 |
| Compatible Insert Size Code: OF.T 06L5 | Cutting Direction: Right Hand |
| Insert Holding Method: Screw | Series: KSOM Mini |
| Hub Diameter (mm): 51.60 | Hub Diameter (Decimal Inch): 2.0310 |
| Keyway Width (Decimal Inch): 0.3750 | Overall Height (mm): 44.45 |
| Overall Height (Inch): 1-3/4 | Overall Height (Decimal Inch): 1.7500 |
| Maximum Body Diameter (Decimal Inch): 3.3430 | Pitch Type: Medium |
| Maximum RPM: 8350 | Number Of Cutter Inserts: 6 |
| Coolant Through: No | Number Of Flutes: 6 |
| UNSPSC Code: 23291600 | Country of Origin: Bulgaria |
| Minimum Cutting Diameter (Decimal Inch): 3.0000 | |
| Minimum Cutting Diameter (Inch): 3 | |
| Maximum Cutting Diameter (Decimal Inch): 3.3430 | |
| Maximum Depth of Cut (mm): 3.50 | |
| Maximum Depth of Cut (Decimal Inch): 0.1380 | |
| Arbor Hole Diameter (mm): 25.40 | |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | |
| Arbor Hole Diameter (Inch): 1 | |
| Compatible Insert Size Code: OF.T 06L5 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw | |
| Series: KSOM Mini | |
| Hub Diameter (mm): 51.60 | |
| Hub Diameter (Decimal Inch): 2.0310 | |
| Keyway Width (Decimal Inch): 0.3750 | |
| Overall Height (mm): 44.45 | |
| Overall Height (Inch): 1-3/4 | |
| Overall Height (Decimal Inch): 1.7500 | |
| Maximum Body Diameter (Decimal Inch): 3.3430 | |
| Pitch Type: Medium | |
| Maximum RPM: 8350 | |
| Number Of Cutter Inserts: 6 | |
| Coolant Through: No | |
| Number Of Flutes: 6 | |
| UNSPSC Code: 23291600 | |
| Country of Origin: Bulgaria |
| MSC# | 76856095 |
| Mfr# | 3093636 |
| Big Book# | 714 |
