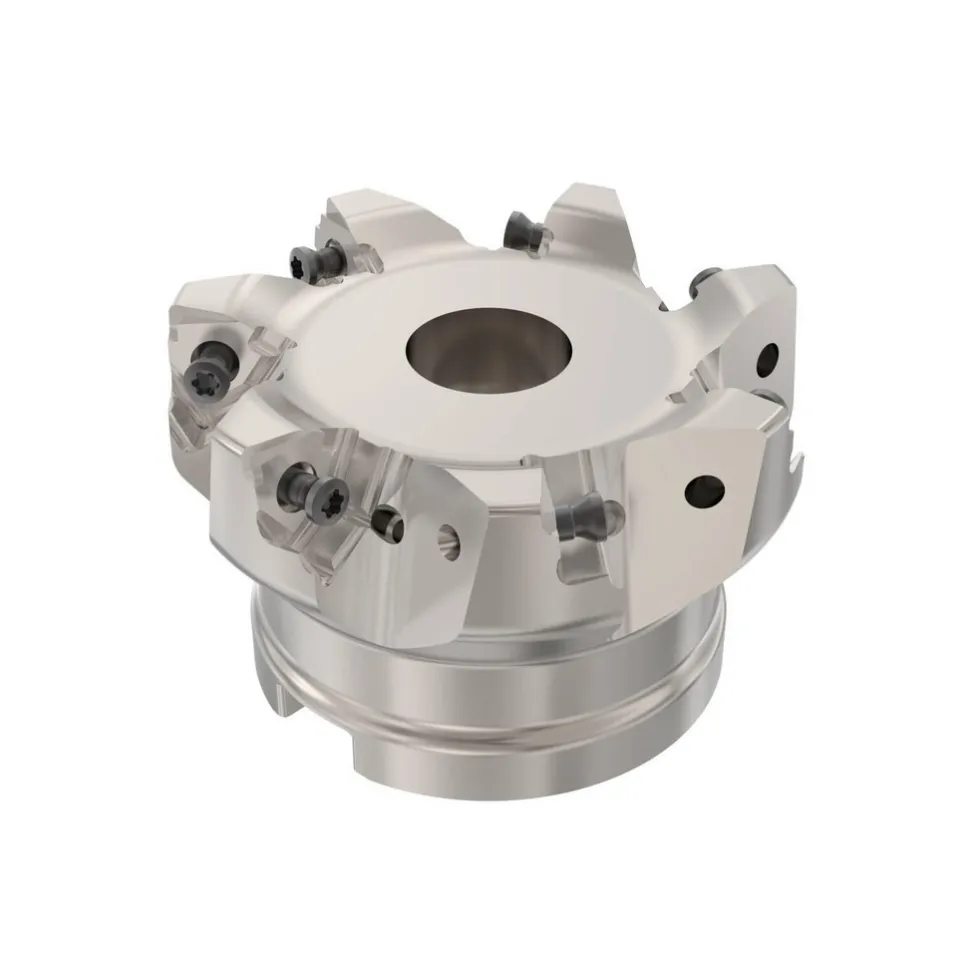

3″ Cut Dia, 1″ Arbor Hole Dia, 0.295″ Max Depth, Indexable Square-Shoulder Face Mill
128,89 $
Specifications
| Maximum Cutting Diameter (Inch): 3 | Maximum Cutting Diameter (Decimal Inch): 3.0000 |
| Maximum Depth of Cut (Decimal Inch): 0.2950 | Arbor Hole Diameter (Inch): 1 |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | Compatible Insert Size Code: XNEX 0806 |
| Cutter Style: R220.96 | Cutting Direction: Right Hand |
| Insert Holding Method: Screw; Clamp | Lead Angle: 0/90 |
| Rake: Negative | Series: Square 6 |
| Maximum Ramping Angle: 0.00 | Overall Height (Decimal Inch): 1.9700 |
| Keyway Width (Decimal Inch): 0.3800 | Hub Diameter (mm): 62.00 |
| Pitch Type: Medium | Tool Application: Slotting |
| UNSPSC Code: 27112803 | Coolant Through: Yes |
| Number Of Cutter Inserts: 7 | Number Of Flutes: 7 |
| Country of Origin: France | |
| Maximum Cutting Diameter (Inch): 3 | |
| Maximum Cutting Diameter (Decimal Inch): 3.0000 | |
| Maximum Depth of Cut (Decimal Inch): 0.2950 | |
| Arbor Hole Diameter (Inch): 1 | |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | |
| Compatible Insert Size Code: XNEX 0806 | |
| Cutter Style: R220.96 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw; Clamp | |
| Lead Angle: 0/90 | |
| Rake: Negative | |
| Series: Square 6 | |
| Maximum Ramping Angle: 0.00 | |
| Overall Height (Decimal Inch): 1.9700 | |
| Keyway Width (Decimal Inch): 0.3800 | |
| Hub Diameter (mm): 62.00 | |
| Pitch Type: Medium | |
| Tool Application: Slotting | |
| UNSPSC Code: 27112803 | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 7 | |
| Number Of Flutes: 7 | |
| Country of Origin: France |
| MSC# | 55189807 |
| Mfr# | 02642881 |
| Big Book# | 671 |
