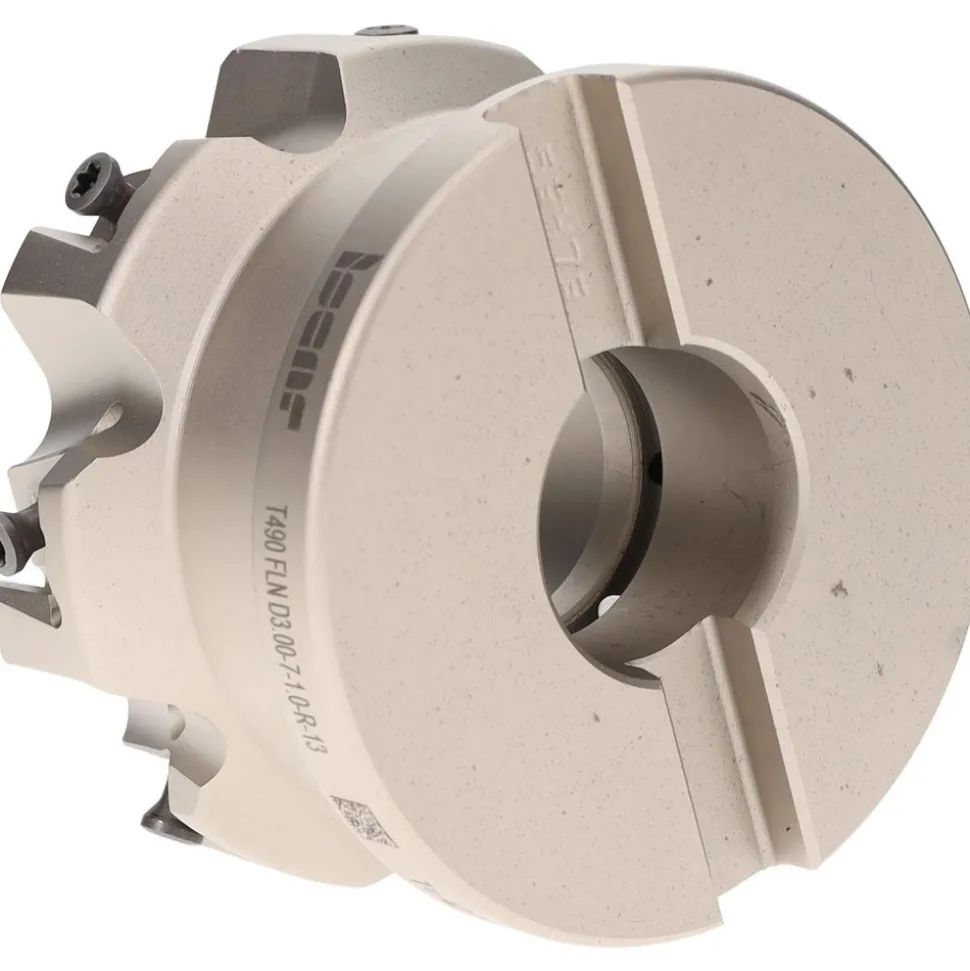

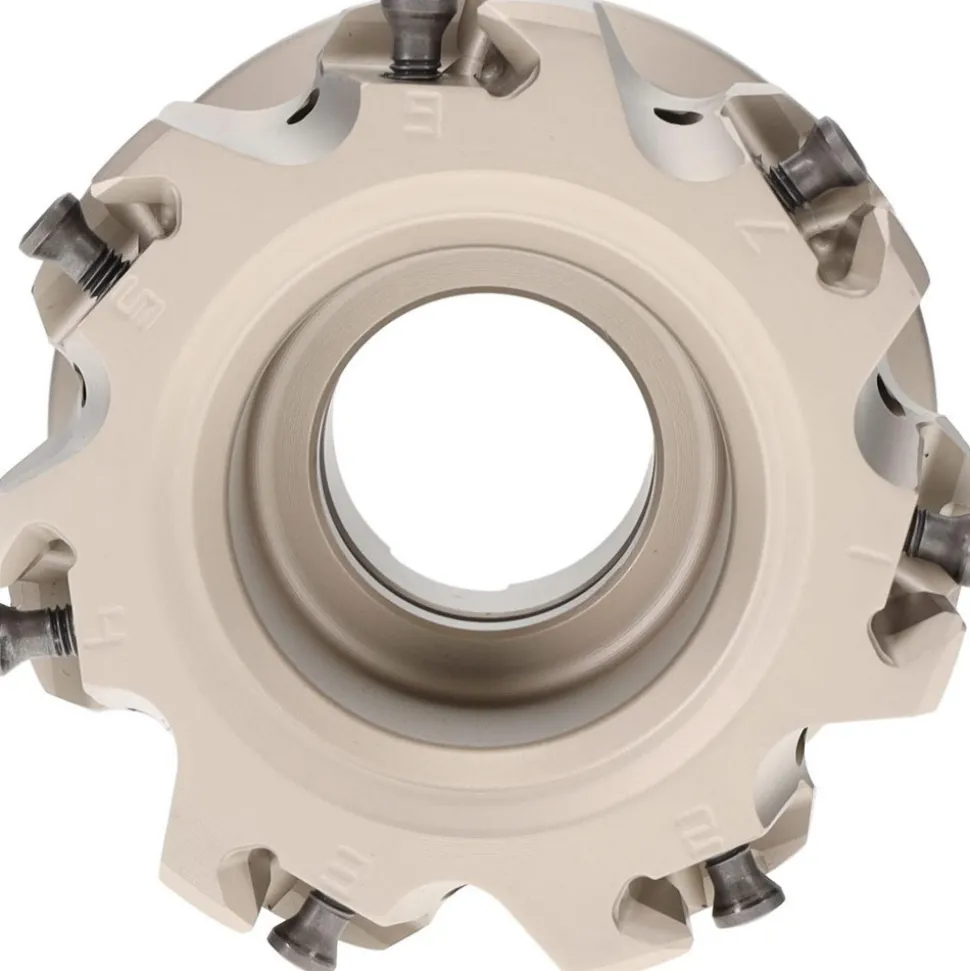

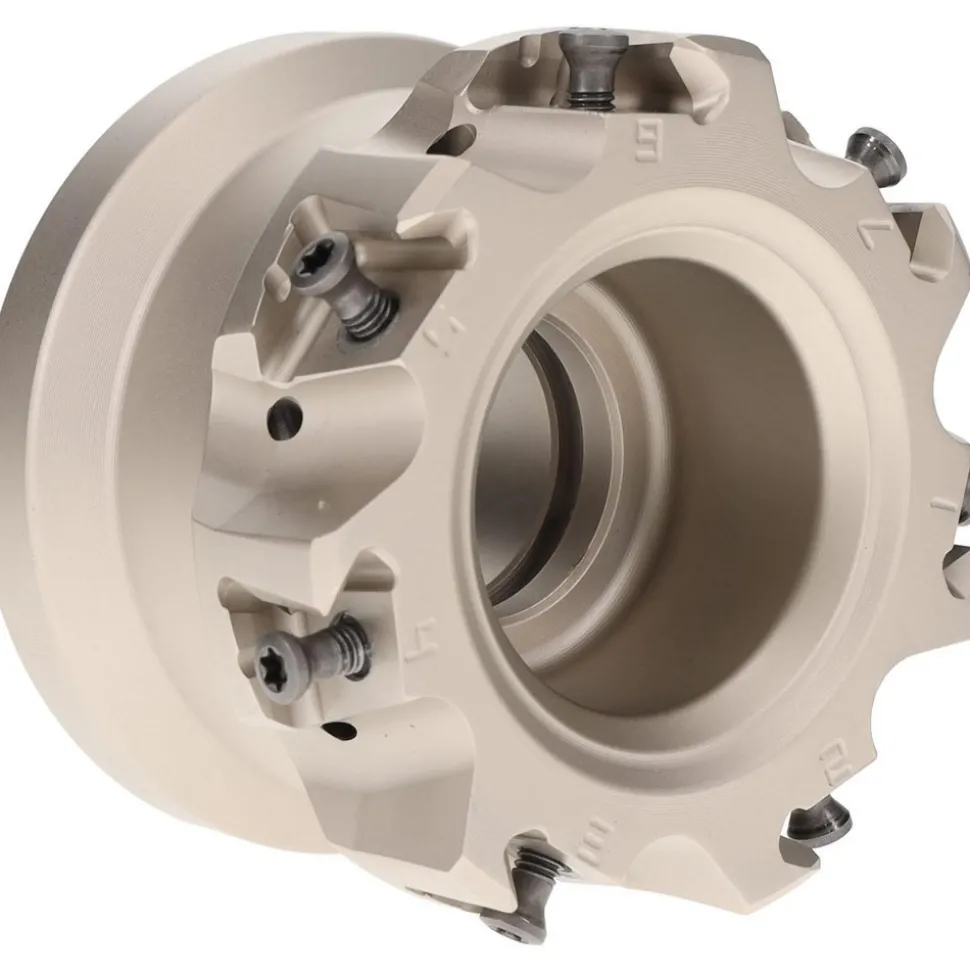

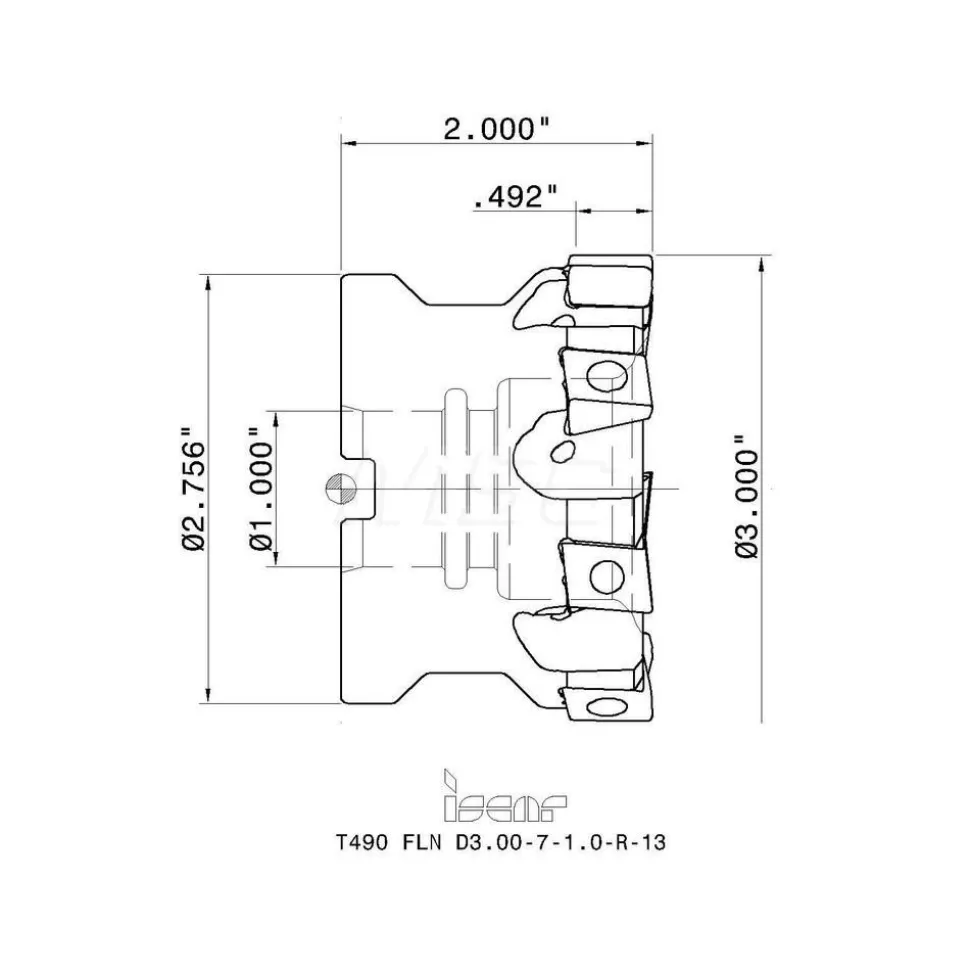

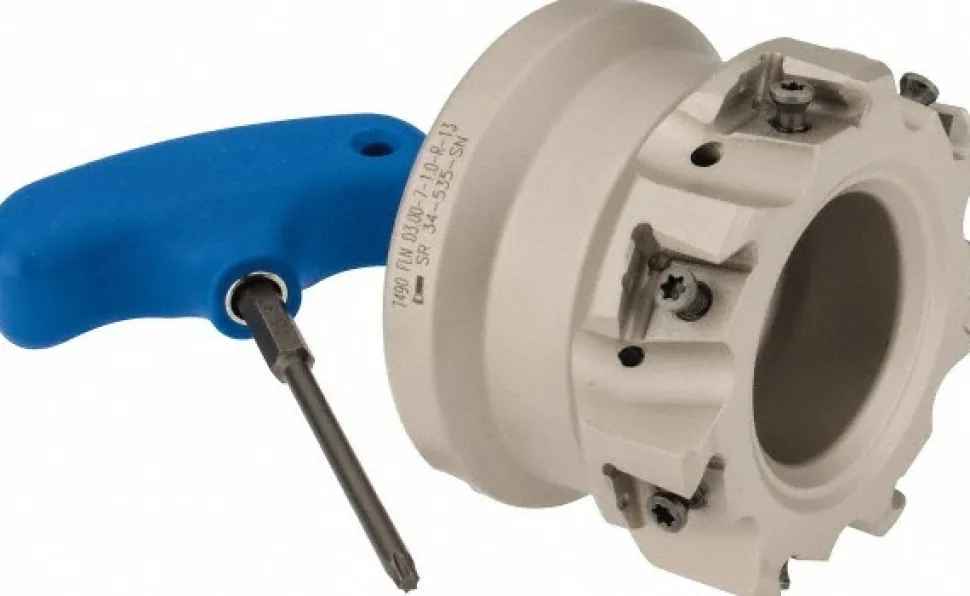

3″ Cut Dia, 1″ Arbor Hole Dia, 0.492″ Max Depth, Indexable Square-Shoulder Face Mill
Original price was: 1 060,00 $.136,89 $Current price is: 136,89 $.
Specifications
| Maximum Cutting Diameter (Inch): 3 | Maximum Cutting Diameter (Decimal Inch): 3.0000 |
| Maximum Depth of Cut (Decimal Inch): 0.4920 | Arbor Hole Diameter (Inch): 1 |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | Compatible Insert Size Code: T490 LNT 1306 |
| Cutter Style: T490 FLN-13 | Cutting Direction: Right Hand |
| Insert Holding Method: Screw; Clamp | Lead Angle: 0/90 |
| Series: Helitang | Maximum Ramping Angle: 0.90 |
| Overall Height (Decimal Inch): 2.0000 | Hub Diameter (Decimal Inch): 2.7600 |
| Standards: ISO | Cutting Edge Length (Decimal Inch): 0.4920 |
| Minimum Insert Radius (Decimal Inch): 0.0310 | Complete Insert Compatibility: LNHT 1306; T490 LNMT |
| UNSPSC Code: 27112803 | Manufacturers Catalog Number: T490 FLN D3.00-7-1.0-R-13 |
| Maximum Insert Radius (Decimal Inch): 0.2500 | Coolant Through: Yes |
| Number Of Cutter Inserts: 7 | Number Of Flutes: 7 |
| Country of Origin: Israel | |
| Maximum Cutting Diameter (Inch): 3 | |
| Maximum Cutting Diameter (Decimal Inch): 3.0000 | |
| Maximum Depth of Cut (Decimal Inch): 0.4920 | |
| Arbor Hole Diameter (Inch): 1 | |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | |
| Compatible Insert Size Code: T490 LNT 1306 | |
| Cutter Style: T490 FLN-13 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw; Clamp | |
| Lead Angle: 0/90 | |
| Series: Helitang | |
| Maximum Ramping Angle: 0.90 | |
| Overall Height (Decimal Inch): 2.0000 | |
| Hub Diameter (Decimal Inch): 2.7600 | |
| Standards: ISO | |
| Cutting Edge Length (Decimal Inch): 0.4920 | |
| Minimum Insert Radius (Decimal Inch): 0.0310 | |
| Complete Insert Compatibility: LNHT 1306; T490 LNMT | |
| UNSPSC Code: 27112803 | |
| Manufacturers Catalog Number: T490 FLN D3.00-7-1.0-R-13 | |
| Maximum Insert Radius (Decimal Inch): 0.2500 | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 7 | |
| Number Of Flutes: 7 | |
| Country of Origin: Israel |
| MSC# | 91056671 |
| Mfr# | 3105323 |
| Big Book# | 694 |
