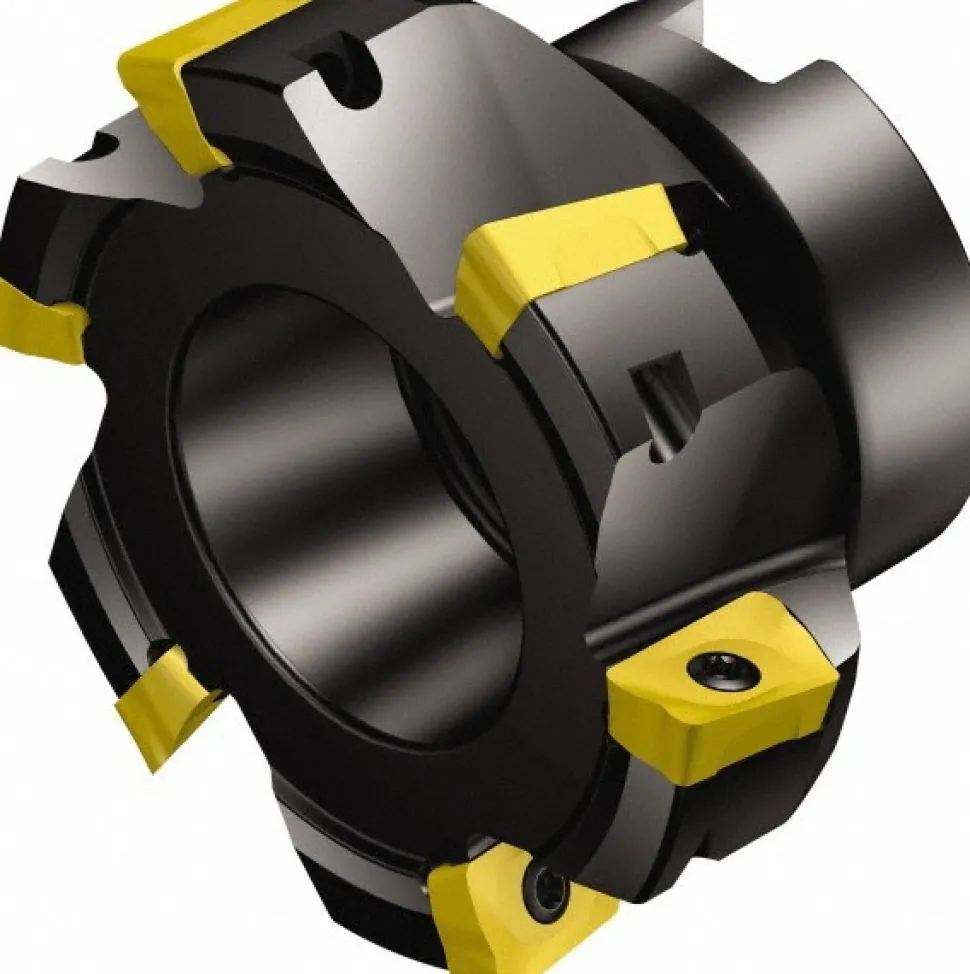

3″ Cut Dia, 1″ Arbor Hole Dia, 15.7mm Max Depth, Indexable Square-Shoulder Face Mill
126,89 $

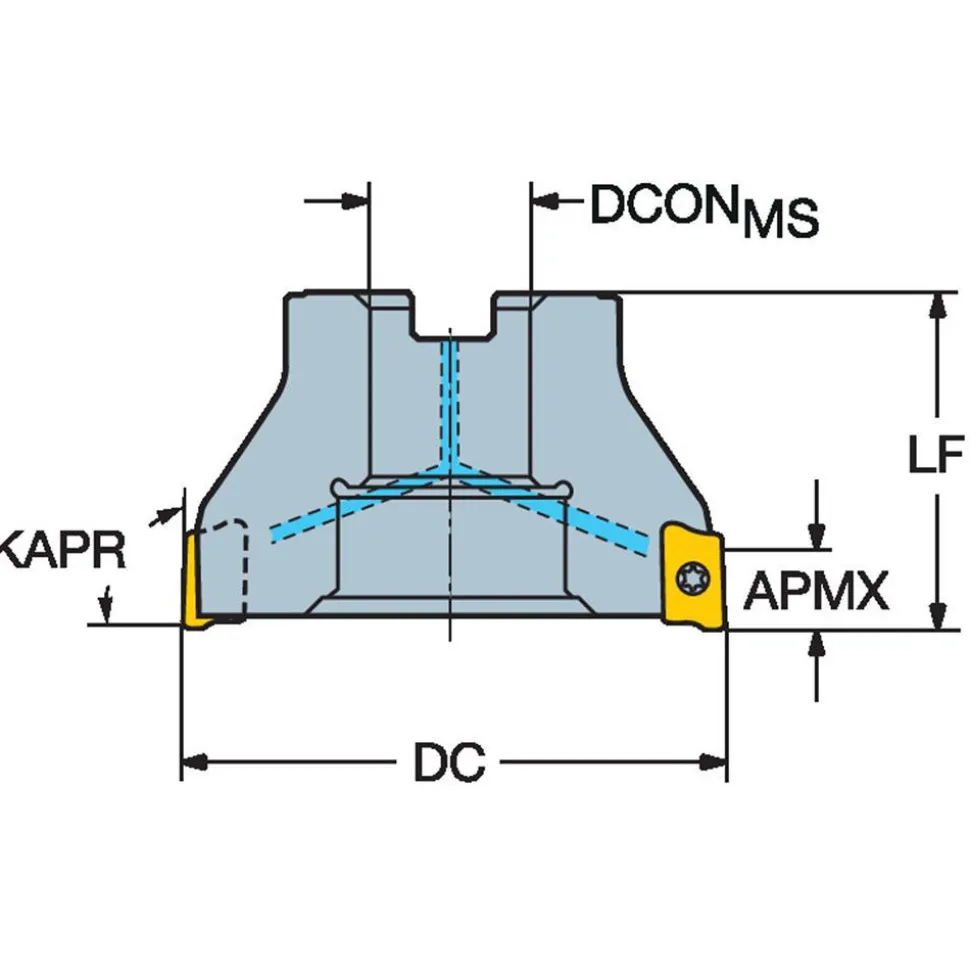

Specifications
| Maximum Cutting Diameter (Inch): 3 | Maximum Cutting Diameter (Decimal Inch): 3.0000 |
| Maximum Cutting Diameter (mm): 76.20 | Maximum Depth of Cut (mm): 15.70 |
| Maximum Depth of Cut (Decimal Inch): 0.6181 | Arbor Hole Diameter (Inch): 1 |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | Compatible Insert Size Code: R390-17.. |
| Cutter Style: RA390 | Cutting Direction: Right Hand |
| Insert Holding Method: Screw | Lead Angle: 90 |
| Rake: Positive | Series: CoroMill 390 |
| Maximum Body Diameter (Decimal Inch): 2.9370 | Overall Height (mm): 50.01 |
| Overall Height (Decimal Inch): 1.9690 | Keyway Width (mm): 9.75 |
| Keyway Width (Decimal Inch): 0.3839 | Hub Diameter (mm): 25.40 |
| Hub Diameter (Decimal Inch): 1.1910 | Hub Diameter (Inch): 1 |
| Pitch Type: Close | Cutting Edge Length (Decimal Inch): 0.6181 |
| Complete Insert Compatibility: R390-17.. | UNSPSC Code: 27112803 |
| Toolholder Material: Steel | Coolant Through: No |
| Number Of Cutter Inserts: 6 | Number Of Flutes: 6 |
| Country of Origin: UNITED STATES | |
| Maximum Cutting Diameter (Inch): 3 | |
| Maximum Cutting Diameter (Decimal Inch): 3.0000 | |
| Maximum Cutting Diameter (mm): 76.20 | |
| Maximum Depth of Cut (mm): 15.70 | |
| Maximum Depth of Cut (Decimal Inch): 0.6181 | |
| Arbor Hole Diameter (Inch): 1 | |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | |
| Compatible Insert Size Code: R390-17.. | |
| Cutter Style: RA390 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw | |
| Lead Angle: 90 | |
| Rake: Positive | |
| Series: CoroMill 390 | |
| Maximum Body Diameter (Decimal Inch): 2.9370 | |
| Overall Height (mm): 50.01 | |
| Overall Height (Decimal Inch): 1.9690 | |
| Keyway Width (mm): 9.75 | |
| Keyway Width (Decimal Inch): 0.3839 | |
| Hub Diameter (mm): 25.40 | |
| Hub Diameter (Decimal Inch): 1.1910 | |
| Hub Diameter (Inch): 1 | |
| Pitch Type: Close | |
| Cutting Edge Length (Decimal Inch): 0.6181 | |
| Complete Insert Compatibility: R390-17.. | |
| UNSPSC Code: 27112803 | |
| Toolholder Material: Steel | |
| Coolant Through: No | |
| Number Of Cutter Inserts: 6 | |
| Number Of Flutes: 6 | |
| Country of Origin: UNITED STATES |
| MSC# | 30138275 |
| Mfr# | 5739785 |
