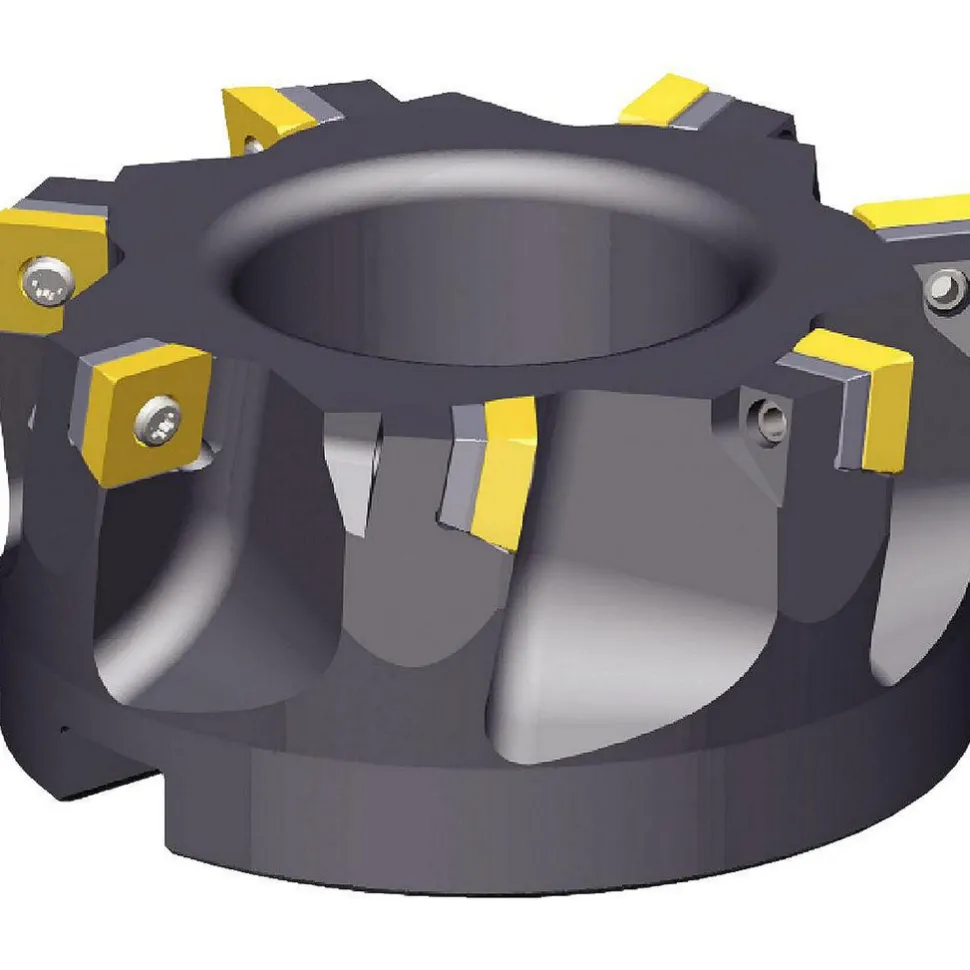

4″ Cut Dia, 1-1/2″ Arbor Hole Dia, 0.361″ Max Depth, Indexable Square-Shoulder Face Mill
Original price was: 1 153,00 $.126,99 $Current price is: 126,99 $.
Specifications

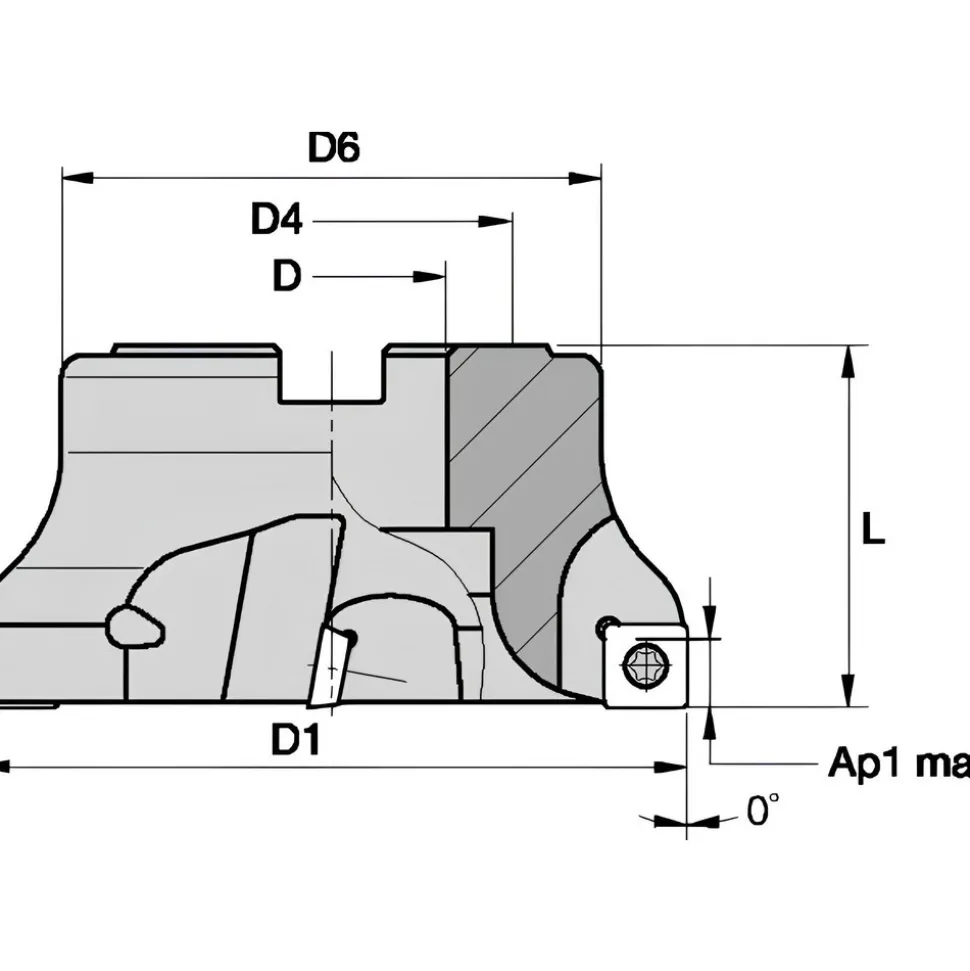

| Maximum Cutting Diameter (Inch): 4 | Maximum Cutting Diameter (Decimal Inch): 4.0000 |
| Maximum Depth of Cut (Decimal Inch): 0.3610 | Arbor Hole Diameter (Inch): 1-1/2 |
| Arbor Hole Diameter (Decimal Inch): 1.5000 | Compatible Insert Size Code: SD.T 43.. |
| Cutter Style: KSSISR | Cutting Direction: Right Hand |
| Insert Holding Method: Screw | Lead Angle: 0/90 |
| Series: KSSM | Maximum Body Diameter (Decimal Inch): 3.9430 |
| Overall Height (Inch): 2 | Overall Height (Decimal Inch): 2.0000 |
| Keyway Width (Decimal Inch): 0.6400 | Hub Diameter (Decimal Inch): 3.6850 |
| Pitch Type: Medium | Complete Insert Compatibility: SDCW 43PDSR8GN; SDPT 43PDER8GB2; SDCW 433PDSR8GN; SDPT 43PDSR8GB2 |
| UNSPSC Code: 27112803 | Coolant Through: No |
| Number Of Cutter Inserts: 7 | Number Of Flutes: 7 |
| Country of Origin: Czechia | |
| Maximum Cutting Diameter (Inch): 4 | |
| Maximum Cutting Diameter (Decimal Inch): 4.0000 | |
| Maximum Depth of Cut (Decimal Inch): 0.3610 | |
| Arbor Hole Diameter (Inch): 1-1/2 | |
| Arbor Hole Diameter (Decimal Inch): 1.5000 | |
| Compatible Insert Size Code: SD.T 43.. | |
| Cutter Style: KSSISR | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw | |
| Lead Angle: 0/90 | |
| Series: KSSM | |
| Maximum Body Diameter (Decimal Inch): 3.9430 | |
| Overall Height (Inch): 2 | |
| Overall Height (Decimal Inch): 2.0000 | |
| Keyway Width (Decimal Inch): 0.6400 | |
| Hub Diameter (Decimal Inch): 3.6850 | |
| Pitch Type: Medium | |
| Complete Insert Compatibility: SDCW 43PDSR8GN; SDPT 43PDER8GB2; SDCW 433PDSR8GN; SDPT 43PDSR8GB2 | |
| UNSPSC Code: 27112803 | |
| Coolant Through: No | |
| Number Of Cutter Inserts: 7 | |
| Number Of Flutes: 7 | |
| Country of Origin: Czechia |
| MSC# | 01136225 |
| Mfr# | 1025031 |
| Big Book# | 713 |
