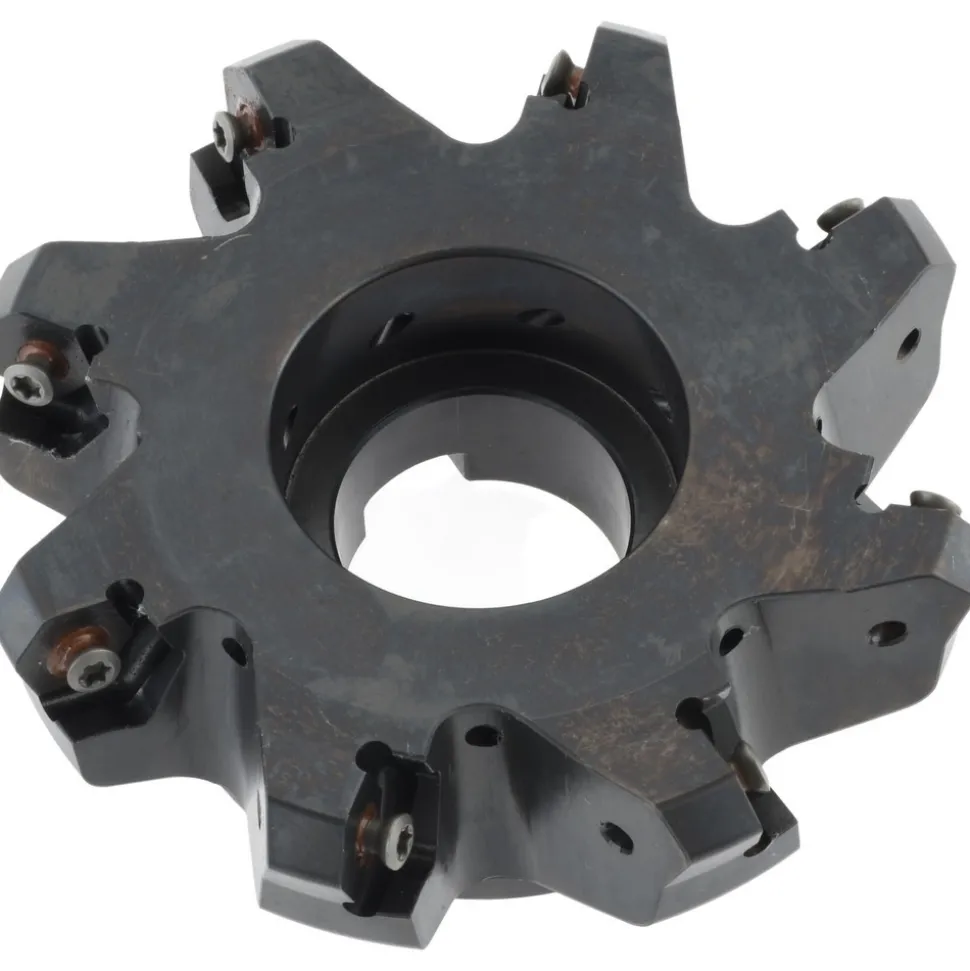

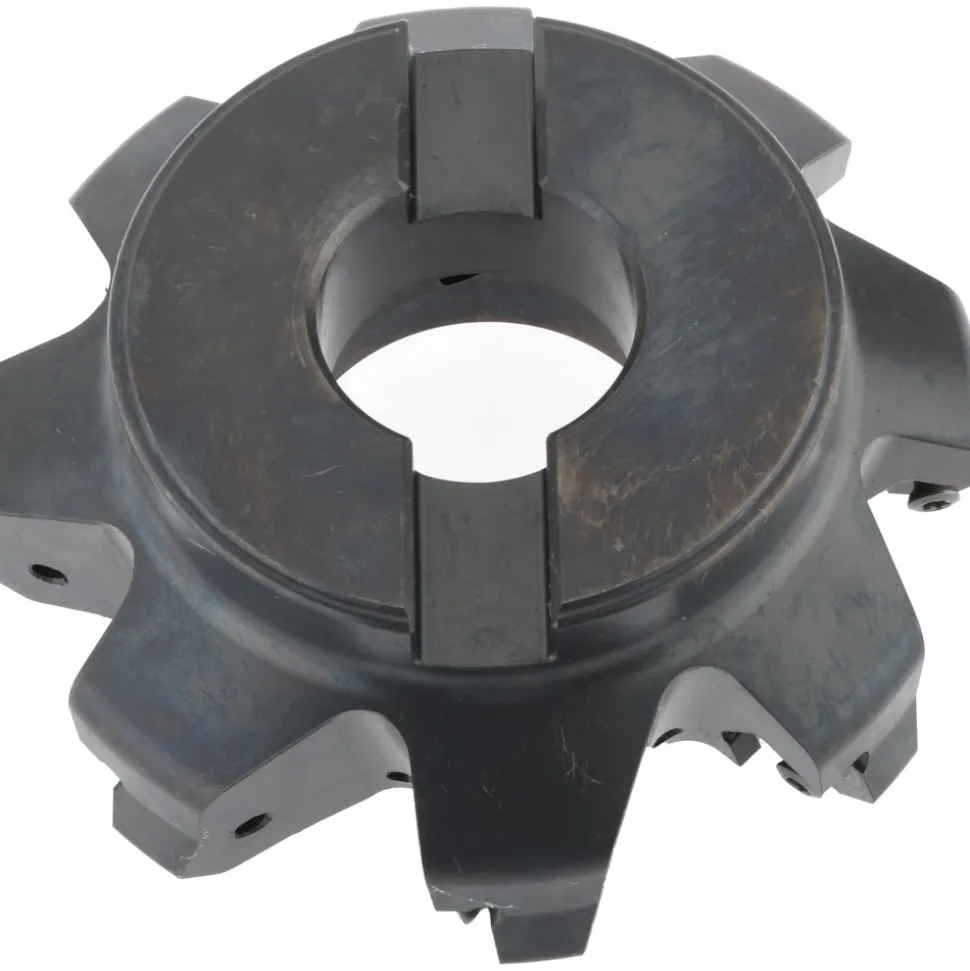

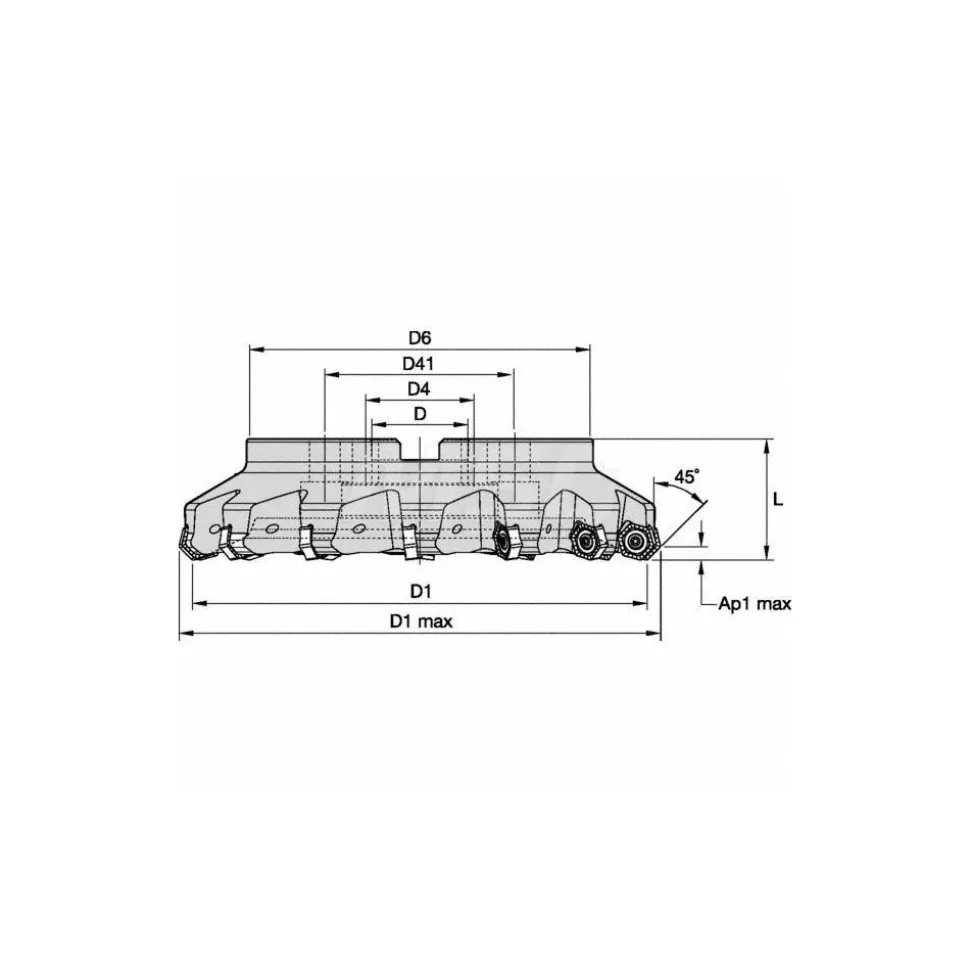

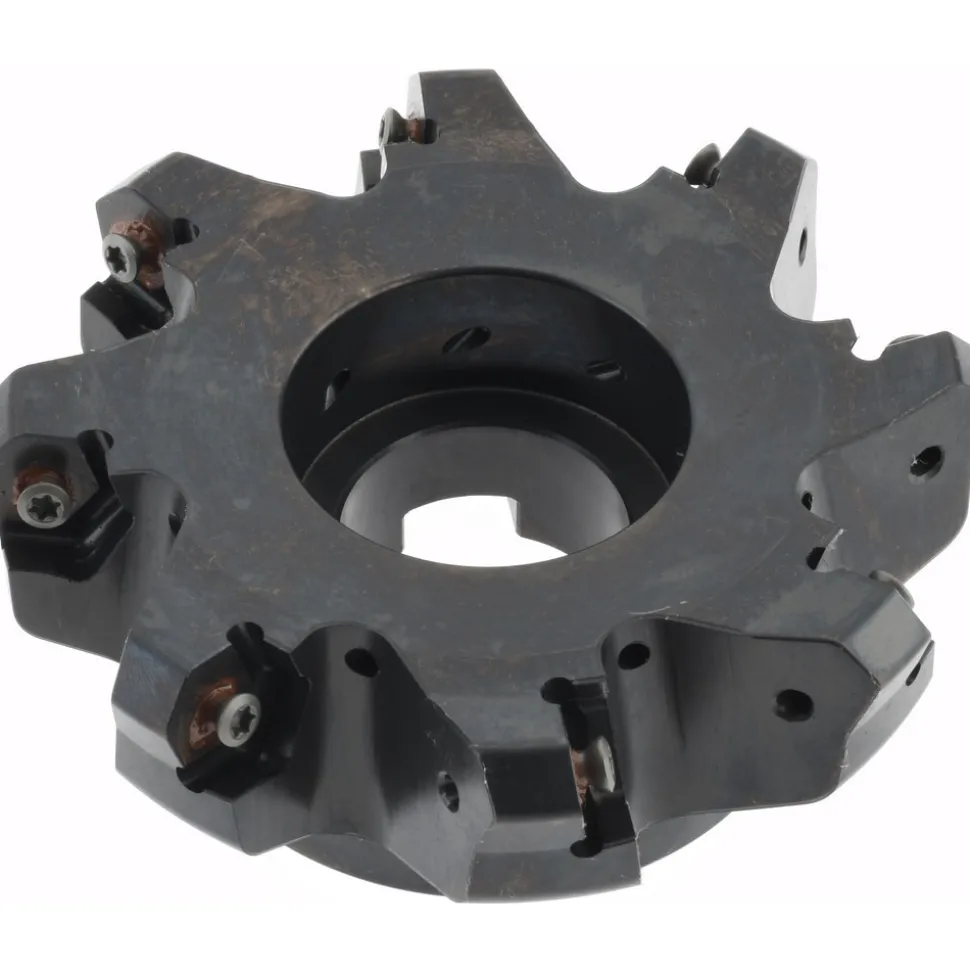

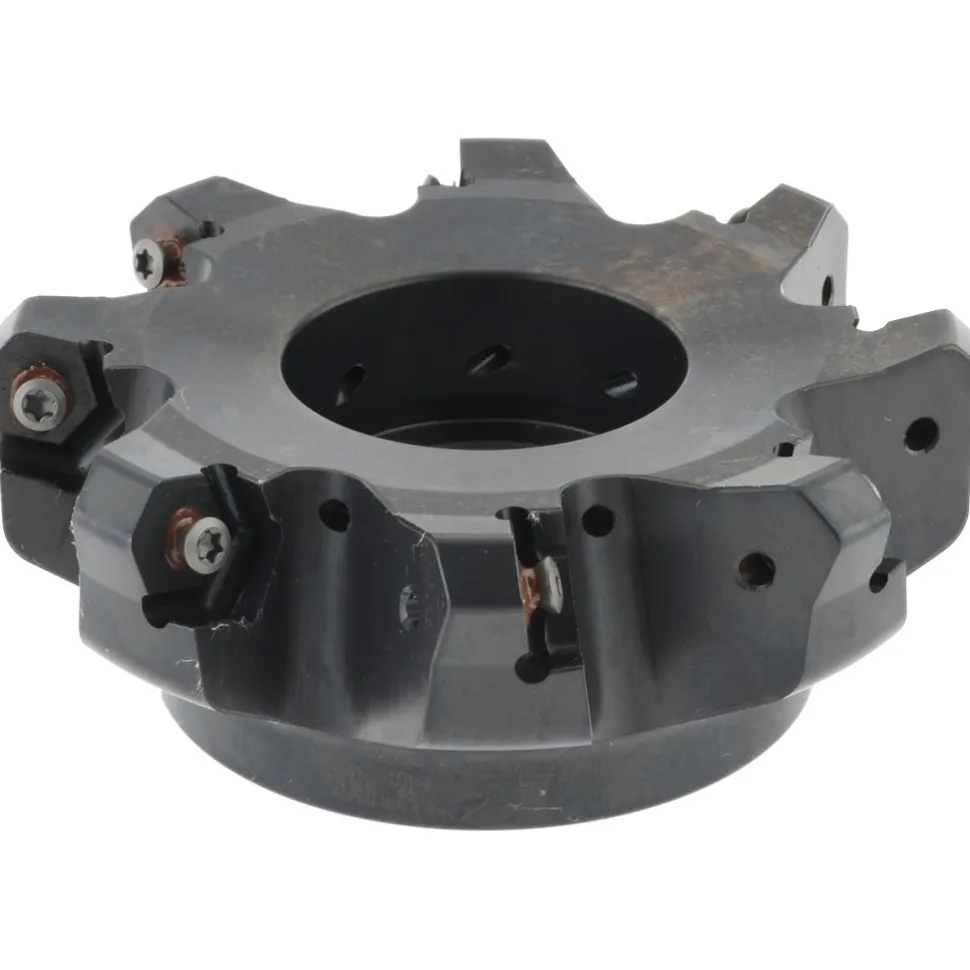

4″ Cut Dia, 1-1/4″ Arbor Hole, 4.51mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill
Original price was: 1 578,00 $.126,99 $Current price is: 126,99 $.
Specifications
| Minimum Cutting Diameter (Decimal Inch): 4.0000 | Minimum Cutting Diameter (Inch): 4 |
| Maximum Cutting Diameter (Decimal Inch): 4.4320 | Maximum Depth of Cut (mm): 4.51 |
| Maximum Depth of Cut (Decimal Inch): 0.1780 | Arbor Hole Diameter (mm): 31.75 |
| Arbor Hole Diameter (Decimal Inch): 1.2500 | Arbor Hole Diameter (Inch): 1-1/4 |
| Compatible Insert Size Code: HNGJ 535-GD | Cutter Style: KSHR |
| Cutting Direction: Right Hand | Insert Holding Method: Screw |
| Series: Dodeka Series | Hub Diameter (Decimal Inch): 2.7220 |
| Overall Height (Inch): 1-3/4 | Overall Height (Decimal Inch): 1.7500 |
| Maximum Body Diameter (Decimal Inch): 4.4320 | Pitch Type: Coarse |
| Maximum RPM: 6300 | Complete Insert Compatibility: HNGJ 535ANSNGD; HNGJ 535ANENLD |
| Number Of Cutter Inserts: 8 | Coolant Through: Yes |
| Number Of Flutes: 8 | UNSPSC Code: 23291600 |
| Country of Origin: Spain | |
| Minimum Cutting Diameter (Decimal Inch): 4.0000 | |
| Minimum Cutting Diameter (Inch): 4 | |
| Maximum Cutting Diameter (Decimal Inch): 4.4320 | |
| Maximum Depth of Cut (mm): 4.51 | |
| Maximum Depth of Cut (Decimal Inch): 0.1780 | |
| Arbor Hole Diameter (mm): 31.75 | |
| Arbor Hole Diameter (Decimal Inch): 1.2500 | |
| Arbor Hole Diameter (Inch): 1-1/4 | |
| Compatible Insert Size Code: HNGJ 535-GD | |
| Cutter Style: KSHR | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw | |
| Series: Dodeka Series | |
| Hub Diameter (Decimal Inch): 2.7220 | |
| Overall Height (Inch): 1-3/4 | |
| Overall Height (Decimal Inch): 1.7500 | |
| Maximum Body Diameter (Decimal Inch): 4.4320 | |
| Pitch Type: Coarse | |
| Maximum RPM: 6300 | |
| Complete Insert Compatibility: HNGJ 535ANSNGD; HNGJ 535ANENLD | |
| Number Of Cutter Inserts: 8 | |
| Coolant Through: Yes | |
| Number Of Flutes: 8 | |
| UNSPSC Code: 23291600 | |
| Country of Origin: Spain |
| MSC# | 60107968 |
| Mfr# | 3326926 |
| Big Book# | 715 |
