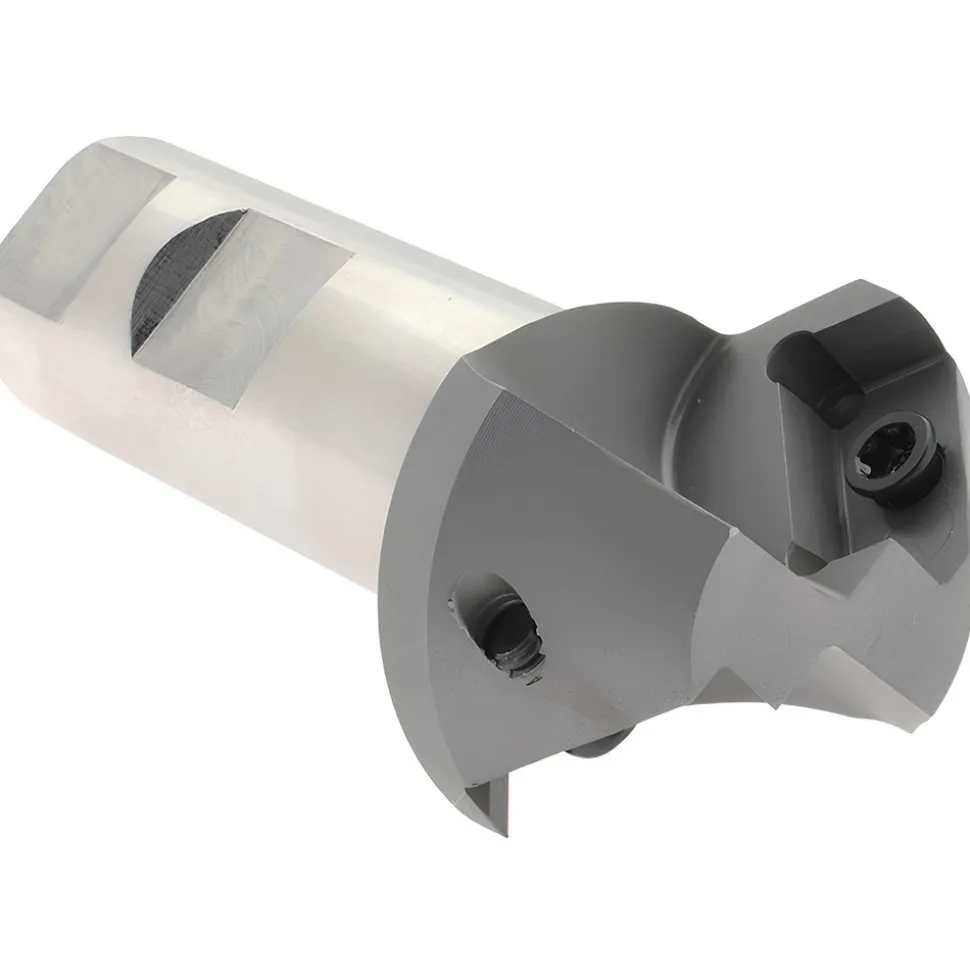

41° Lead Angle, 0.688″ to 1.414″ Cut Dia, 3/4″ Shank Dia, Indexable & Chamfer End Mill
Original price was: 151,00 $.99,89 $Current price is: 99,89 $.
Specifications
| Minimum Cutting Diameter (Decimal Inch): 0.6880 | Maximum Cutting Diameter (Decimal Inch): 1.4140 |
| Maximum Depth of Cut (Decimal Inch): 0.4180 | Compatible Insert Size Code: APLT 347 |
| Shank Diameter (Inch): 3/4 | Number Of Cutter Inserts: 2 |
| Insert Style: APLT 347 | Insert Holding Method: Screw |
| Overall Length (Decimal Inch): 3.0000 | Toolholder Style: CHM |
| Maximum Body Diameter (Decimal Inch): 0.7500 | Head Length (Decimal Inch): 0.9300 |
| UNSPSC Code: 23291600 | Number Of Flutes: 2 |
| Included Angle Degree: 82 | Shank Type: Weldon Flat |
| Country of Origin: UNITED STATES | |
| Minimum Cutting Diameter (Decimal Inch): 0.6880 | |
| Maximum Cutting Diameter (Decimal Inch): 1.4140 | |
| Maximum Depth of Cut (Decimal Inch): 0.4180 | |
| Compatible Insert Size Code: APLT 347 | |
| Shank Diameter (Inch): 3/4 | |
| Number Of Cutter Inserts: 2 | |
| Insert Style: APLT 347 | |
| Insert Holding Method: Screw | |
| Overall Length (Decimal Inch): 3.0000 | |
| Toolholder Style: CHM | |
| Maximum Body Diameter (Decimal Inch): 0.7500 | |
| Head Length (Decimal Inch): 0.9300 | |
| UNSPSC Code: 23291600 | |
| Number Of Flutes: 2 | |
| Included Angle Degree: 82 | |
| Shank Type: Weldon Flat | |
| Country of Origin: UNITED STATES |
| MSC# | 00306506 |
| Mfr# | 01268 |
| Big Book# | 730 |
