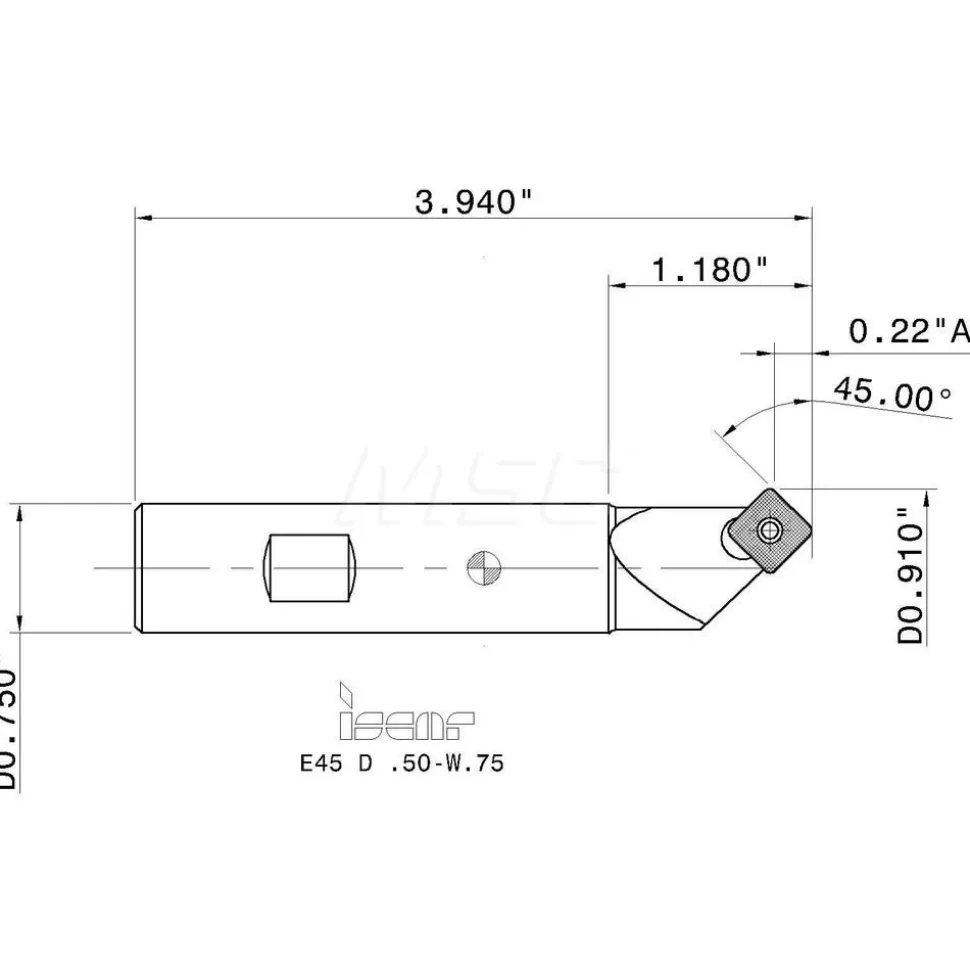

45° Lead Angle, 0.472″ to 0.91″ Cut Dia, 3/4″ Shank Dia, Indexable & Chamfer End Mill
Original price was: 265,00 $.134,89 $Current price is: 134,89 $.
Specifications
| Minimum Cutting Diameter (Decimal Inch): 0.4720 | Maximum Cutting Diameter (Decimal Inch): 0.9100 |
| Maximum Depth of Cut (Decimal Inch): 0.2200 | Compatible Insert Size Code: SDMT-AD-N |
| Shank Diameter (Inch): 3/4 | Shank Diameter (Decimal Inch): 0.7500 |
| Number Of Cutter Inserts: 1 | Insert Style: SDMT-AD-N |
| Insert Holding Method: Screw Clamping | Overall Length (Decimal Inch): 3.9400 |
| Series: IscarMill | Toolholder Style: E45 |
| Functional Length (Decimal Inch): 1.1800 | Maximum Body Diameter (Decimal Inch): 0.7500 |
| Maximum RPM: 7000 | Tool Application: Milling |
| Standards: ISO 13399 | Head Length (Decimal Inch): 1.1800 |
| Shank Length (Decimal Inch): 2.7600 | UNSPSC Code: 23291600 |
| Number of Inserts Included in Order: 1 | Manufacturers Catalog Number: E45 D .50-W.75 |
| Number Of Flutes: 1 | Coolant Through: No |
| Included Angle Degree: 45 | Shank Type: Weldon Flat |
| Country of Origin: Israel | |
| Minimum Cutting Diameter (Decimal Inch): 0.4720 | |
| Maximum Cutting Diameter (Decimal Inch): 0.9100 | |
| Maximum Depth of Cut (Decimal Inch): 0.2200 | |
| Compatible Insert Size Code: SDMT-AD-N | |
| Shank Diameter (Inch): 3/4 | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Number Of Cutter Inserts: 1 | |
| Insert Style: SDMT-AD-N | |
| Insert Holding Method: Screw Clamping | |
| Overall Length (Decimal Inch): 3.9400 | |
| Series: IscarMill | |
| Toolholder Style: E45 | |
| Functional Length (Decimal Inch): 1.1800 | |
| Maximum Body Diameter (Decimal Inch): 0.7500 | |
| Maximum RPM: 7000 | |
| Tool Application: Milling | |
| Standards: ISO 13399 | |
| Head Length (Decimal Inch): 1.1800 | |
| Shank Length (Decimal Inch): 2.7600 | |
| UNSPSC Code: 23291600 | |
| Number of Inserts Included in Order: 1 | |
| Manufacturers Catalog Number: E45 D .50-W.75 | |
| Number Of Flutes: 1 | |
| Coolant Through: No | |
| Included Angle Degree: 45 | |
| Shank Type: Weldon Flat | |
| Country of Origin: Israel |
| MSC# | 60840246 |
| Mfr# | 3110003 |
| Big Book# | 695 |
