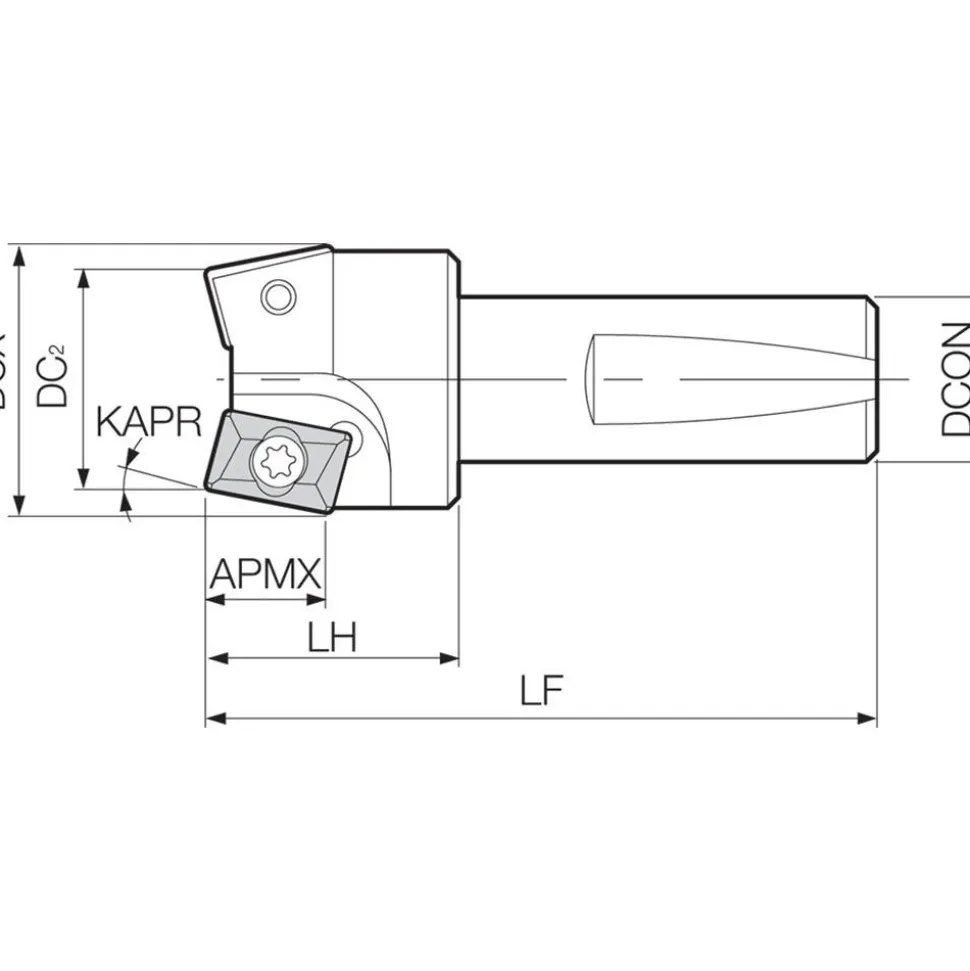

45° Lead Angle, 1″ Cut Dia, Indexable & Chamfer End Mill
128,99 $
Specifications
| Cutting Diameter (Decimal Inch): 1 | Minimum Cutting Diameter (Inch): 1 |
| Minimum Cutting Diameter (Decimal Inch): 1.0000 | Maximum Cutting Diameter (Inch): 1 |
| Maximum Cutting Diameter (Decimal Inch): 1.0000 | Maximum Depth of Cut (Decimal Inch): 0.4000 |
| Compatible Insert Size Code: XPMT 15T308; XPMT 15T316; XPMT 15T304; XPMT 15T324; XPMT 15T331; XPMT 15T364 | Shank Diameter (Inch): 3/4 |
| Shank Diameter (mm): 19.05 | Shank Diameter (Decimal Inch): 0.7500 |
| Number Of Cutter Inserts: 2 | Cutting Direction: Right Hand |
| Insert Style: XPMT 15T3.. | Insert Holding Method: Screw |
| Overall Length (Decimal Inch): 3.1500 | Series: CM |
| Toolholder Style: CM | Functional Length (Decimal Inch): 3.1500 |
| Maximum Body Diameter (Decimal Inch): 0.7500 | Maximum Body Diameter (mm): 19.05 |
| Tool Application: Facing | Head Length (Decimal Inch): 1.2500 |
| Head Length (Inch): 1-1/4 | UNSPSC Code: 23291600 |
| Width (Decimal Inch – 4 Decimals): 0.4240 | Coolant Through: No |
| Shank Type: Whistle Notch | Country of Origin: UNITED STATES |
| Cutting Diameter (Decimal Inch): 1 | |
| Minimum Cutting Diameter (Inch): 1 | |
| Minimum Cutting Diameter (Decimal Inch): 1.0000 | |
| Maximum Cutting Diameter (Inch): 1 | |
| Maximum Cutting Diameter (Decimal Inch): 1.0000 | |
| Maximum Depth of Cut (Decimal Inch): 0.4000 | |
| Compatible Insert Size Code: XPMT 15T308; XPMT 15T316; XPMT 15T304; XPMT 15T324; XPMT 15T331; XPMT 15T364 | |
| Shank Diameter (Inch): 3/4 | |
| Shank Diameter (mm): 19.05 | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Number Of Cutter Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Insert Style: XPMT 15T3.. | |
| Insert Holding Method: Screw | |
| Overall Length (Decimal Inch): 3.1500 | |
| Series: CM | |
| Toolholder Style: CM | |
| Functional Length (Decimal Inch): 3.1500 | |
| Maximum Body Diameter (Decimal Inch): 0.7500 | |
| Maximum Body Diameter (mm): 19.05 | |
| Tool Application: Facing | |
| Head Length (Decimal Inch): 1.2500 | |
| Head Length (Inch): 1-1/4 | |
| UNSPSC Code: 23291600 | |
| Width (Decimal Inch – 4 Decimals): 0.4240 | |
| Coolant Through: No | |
| Shank Type: Whistle Notch | |
| Country of Origin: UNITED STATES |
| MSC# | 78823879 |
| Mfr# | OTM86131 |
| Big Book# | 727 |
