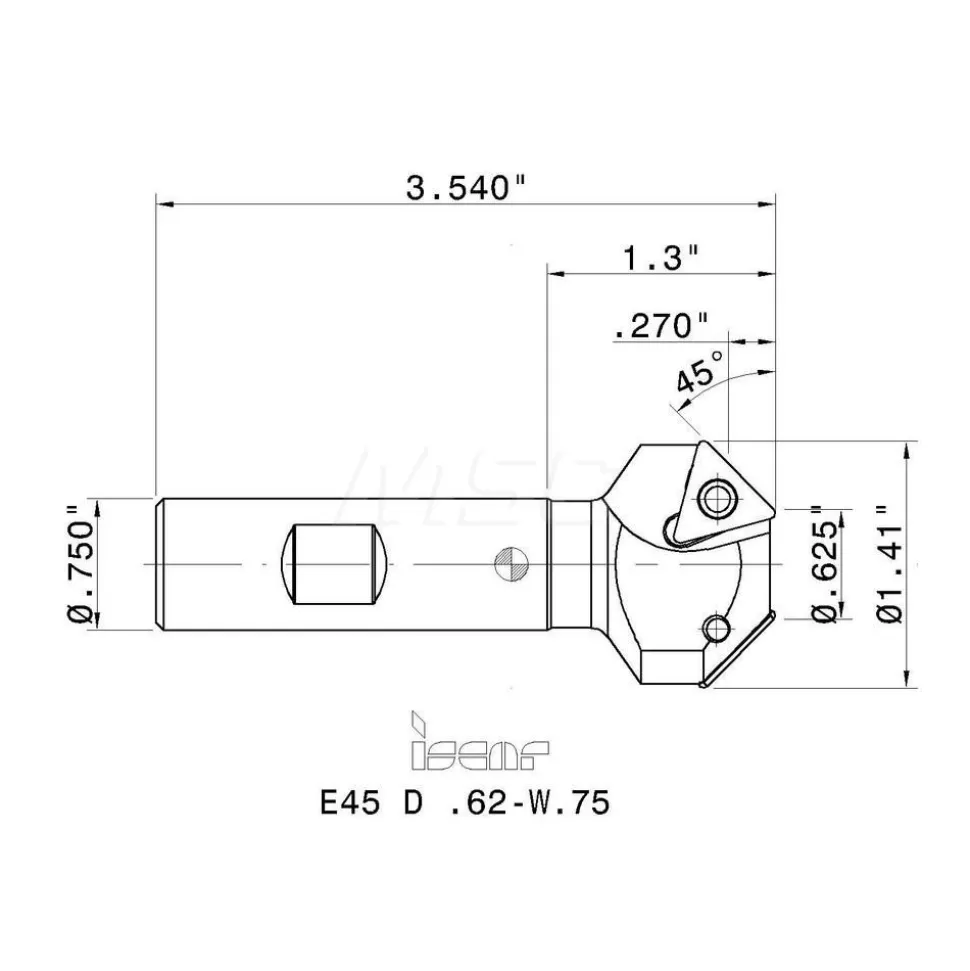

45° Lead Angle, 5/8″ to 1.41″ Cut Dia, 3/4″ Shank Dia, Indexable & Chamfer End Mill
132,99 $
Specifications
| Minimum Cutting Diameter (Inch): 5/8 | Minimum Cutting Diameter (Decimal Inch): 0.6250 |
| Maximum Cutting Diameter (Decimal Inch): 1.4100 | Maximum Depth of Cut (Decimal Inch): 0.2700 |
| Shank Diameter (Inch): 3/4 | Shank Diameter (Decimal Inch): 0.7500 |
| Number Of Cutter Inserts: 2 | Insert Style: TPMT 321; TPMT 322 |
| Insert Holding Method: Screw | Overall Length (Decimal Inch): 3.5400 |
| Series: IscarMill | Toolholder Style: E45 |
| Functional Length (Decimal Inch): 1.3000 | Maximum Body Diameter (Decimal Inch): 0.7500 |
| Tool Application: Milling | Standards: ISO 13399 |
| Head Length (Decimal Inch): 1.3000 | UNSPSC Code: 23291600 |
| Manufacturers Catalog Number: E45 D .62-W.75 | Shank Type: Weldon Flat |
| Country of Origin: Israel | |
| Minimum Cutting Diameter (Inch): 5/8 | |
| Minimum Cutting Diameter (Decimal Inch): 0.6250 | |
| Maximum Cutting Diameter (Decimal Inch): 1.4100 | |
| Maximum Depth of Cut (Decimal Inch): 0.2700 | |
| Shank Diameter (Inch): 3/4 | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Number Of Cutter Inserts: 2 | |
| Insert Style: TPMT 321; TPMT 322 | |
| Insert Holding Method: Screw | |
| Overall Length (Decimal Inch): 3.5400 | |
| Series: IscarMill | |
| Toolholder Style: E45 | |
| Functional Length (Decimal Inch): 1.3000 | |
| Maximum Body Diameter (Decimal Inch): 0.7500 | |
| Tool Application: Milling | |
| Standards: ISO 13399 | |
| Head Length (Decimal Inch): 1.3000 | |
| UNSPSC Code: 23291600 | |
| Manufacturers Catalog Number: E45 D .62-W.75 | |
| Shank Type: Weldon Flat | |
| Country of Origin: Israel |
| MSC# | 60840261 |
| Mfr# | 3110004 |
| Big Book# | 695 |
