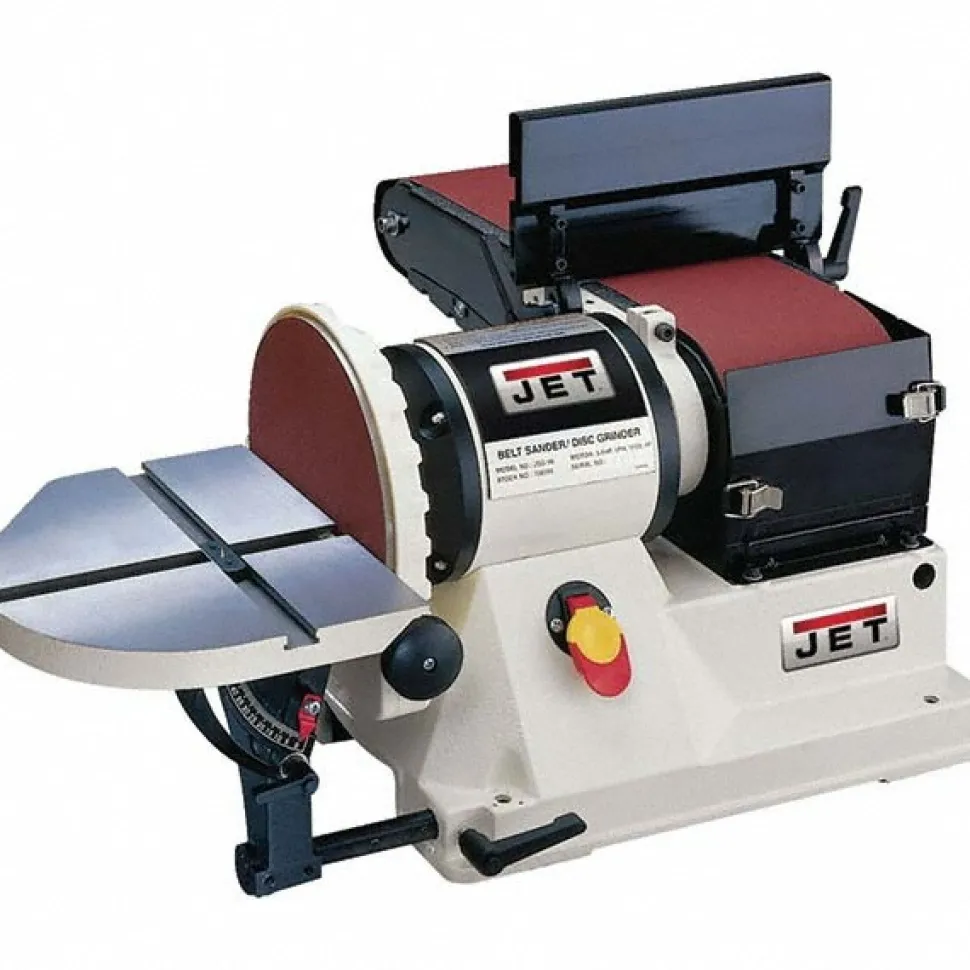

Specifications
| Belt Length: 48.0000 in | Belt Width (Inch): 6 |
| Phase: Single | Disc Diameter: 9.0000 in |
| Disc Speed: 1725 | Belt Orientation: Vertical; Horizontal |
| Belt Speed: 2258 ft/min | Horsepower: 0.75 |
| Voltage: 115.00 V | Amperage: 11.0000 A |
| Inward Table Tilt (Degrees): 10 | Outward Table Tilt (Degrees): 45.00 |
| Dust Collection Outlet Diameter (Inch): 4 | Control Type: Lever |
| Cord Type: Corded | Overall Height: 16.1000 in |
| Overall Depth: 31.0000 in | Overall Length: 28.7500 in |
| Table Width (Inch): 5-1/2 | Table Length (Inch): 11 |
| Features: Graphite Covered Steel Platen; Large Cast Iron Table; Dual Thumbscrew Belt Tracking Adjustment Locks; Built-In Handles; Specially Designed Belt Guard; Drive Drum is Rubber-Coated | UNSPSC Code: 23101509 |
| Product Service Code: 3415 | Country of Origin: Taiwan |
| Belt Length: 48.0000 in | |
| Belt Width (Inch): 6 | |
| Phase: Single | |
| Disc Diameter: 9.0000 in | |
| Disc Speed: 1725 | |
| Belt Orientation: Vertical; Horizontal | |
| Belt Speed: 2258 ft/min | |
| Horsepower: 0.75 | |
| Voltage: 115.00 V | |
| Amperage: 11.0000 A | |
| Inward Table Tilt (Degrees): 10 | |
| Outward Table Tilt (Degrees): 45.00 | |
| Dust Collection Outlet Diameter (Inch): 4 | |
| Control Type: Lever | |
| Cord Type: Corded | |
| Overall Height: 16.1000 in | |
| Overall Depth: 31.0000 in | |
| Overall Length: 28.7500 in | |
| Table Width (Inch): 5-1/2 | |
| Table Length (Inch): 11 | |
| Features: Graphite Covered Steel Platen; Large Cast Iron Table; Dual Thumbscrew Belt Tracking Adjustment Locks; Built-In Handles; Specially Designed Belt Guard; Drive Drum is Rubber-Coated | |
| UNSPSC Code: 23101509 | |
| Product Service Code: 3415 | |
| Country of Origin: Taiwan |
| MSC# | 07739220 |
| Mfr# | 708595 |
