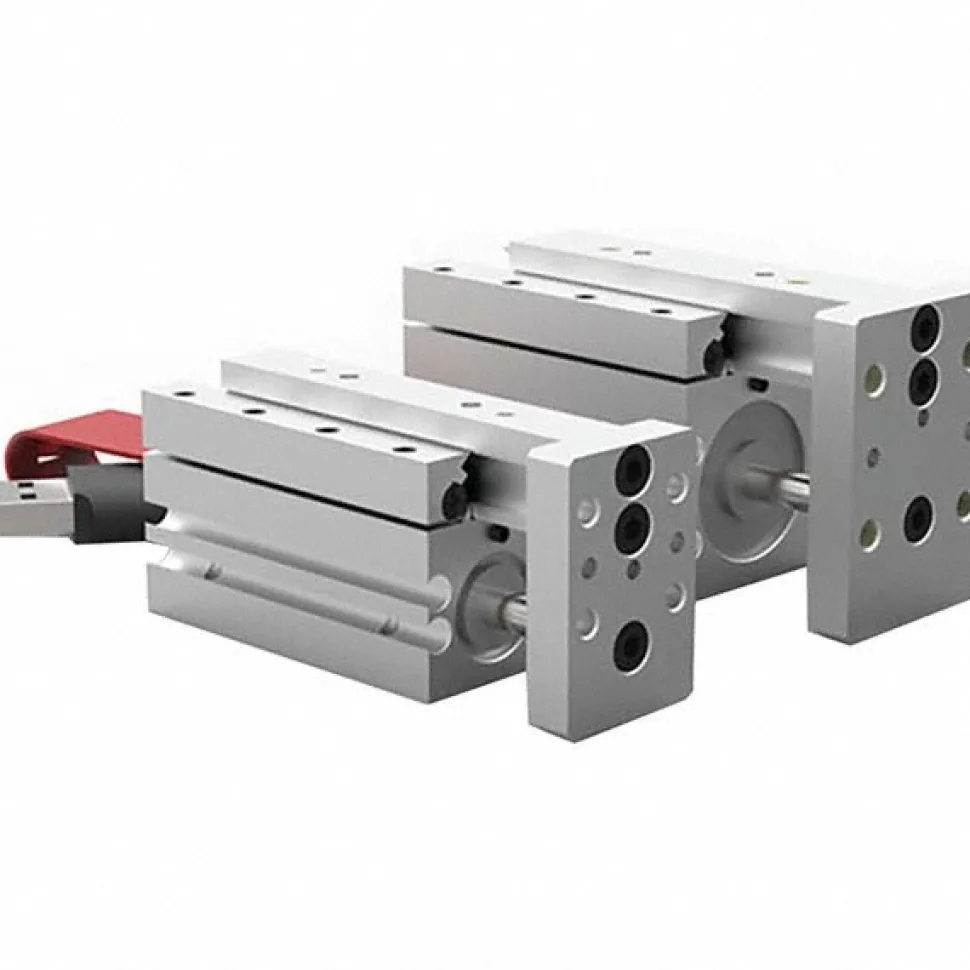

51mm Stroke, 0.752″ Shaft Dia, Double-Acting Cylinder, Pneumatic Slide
Original price was: 1 325,00 $.124,89 $Current price is: 124,89 $.
Specifications
| Product Type: Slide | Overall Length (mm): 84 |
| Overall Length (Decimal Inch): 3.3071 | Slide Type: Miniature Rail Slide |
| Series: MPS | Bearing Type: Roller Bearing |
| Cylinder Type: Double-Acting | Overall Width (mm): 27 |
| Overall Width (Decimal Inch): 1.0630 | Mounting Orientation: Vertical; Horizontal |
| Number of Valve Positions: 2 | Seal Material: Viton |
| Minimum Operating Temperature (F): -20 | Minimum Operating Temperature (C): -30 |
| Maximum Operating Temperature (C): 120 | Maximum Operating Temperature (F): 250 |
| Minimum Operating Pressure (bar): 1-1/2 | Minimum Operating Pressure (psi): 20 |
| Maximum Operating Pressure (psi): 100 | Stroke (mm): 51 |
| Stroke (Inch): 2.0079 | Horizontal Load Capacity (kg): 1.36 |
| Horizontal Load Capacity (Lb.): 3 | Bore Diameter (Inch): 0.7520 |
| Bore Diameter (mm): 19.10 | Special Features: Extremely Small Size; Preloaded “Dual-V” Roller Bearings Eliminate Side Play for Excellent Part Position Repeatability; Payload Can Be Attached to Either The Tooling Plate or The Slide |
| Shaft Diameter (mm): 19.10 | Shaft Diameter (Decimal Inch): 0.7520 |
| UNSPSC Code: 40141633 | |
| Product Type: Slide | |
| Overall Length (mm): 84 | |
| Overall Length (Decimal Inch): 3.3071 | |
| Slide Type: Miniature Rail Slide | |
| Series: MPS | |
| Bearing Type: Roller Bearing | |
| Cylinder Type: Double-Acting | |
| Overall Width (mm): 27 | |
| Overall Width (Decimal Inch): 1.0630 | |
| Mounting Orientation: Vertical; Horizontal | |
| Number of Valve Positions: 2 | |
| Seal Material: Viton | |
| Minimum Operating Temperature (F): -20 | |
| Minimum Operating Temperature (C): -30 | |
| Maximum Operating Temperature (C): 120 | |
| Maximum Operating Temperature (F): 250 | |
| Minimum Operating Pressure (bar): 1-1/2 | |
| Minimum Operating Pressure (psi): 20 | |
| Maximum Operating Pressure (psi): 100 | |
| Stroke (mm): 51 | |
| Stroke (Inch): 2.0079 | |
| Horizontal Load Capacity (kg): 1.36 | |
| Horizontal Load Capacity (Lb.): 3 | |
| Bore Diameter (Inch): 0.7520 | |
| Bore Diameter (mm): 19.10 | |
| Special Features: Extremely Small Size; Preloaded “Dual-V” Roller Bearings Eliminate Side Play for Excellent Part Position Repeatability; Payload Can Be Attached to Either The Tooling Plate or The Slide | |
| Shaft Diameter (mm): 19.10 | |
| Shaft Diameter (Decimal Inch): 0.7520 | |
| UNSPSC Code: 40141633 |
| MSC# | 68411693 |
| Mfr# | MPS-2M-4-V |
