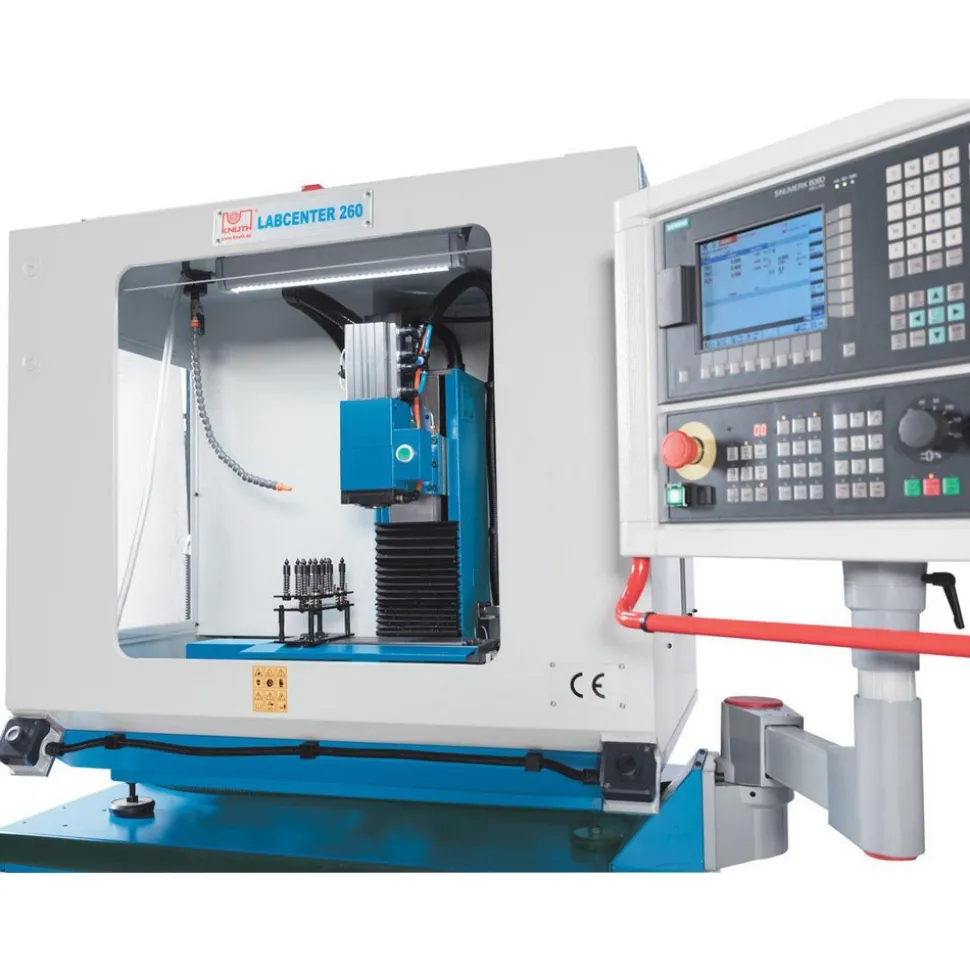

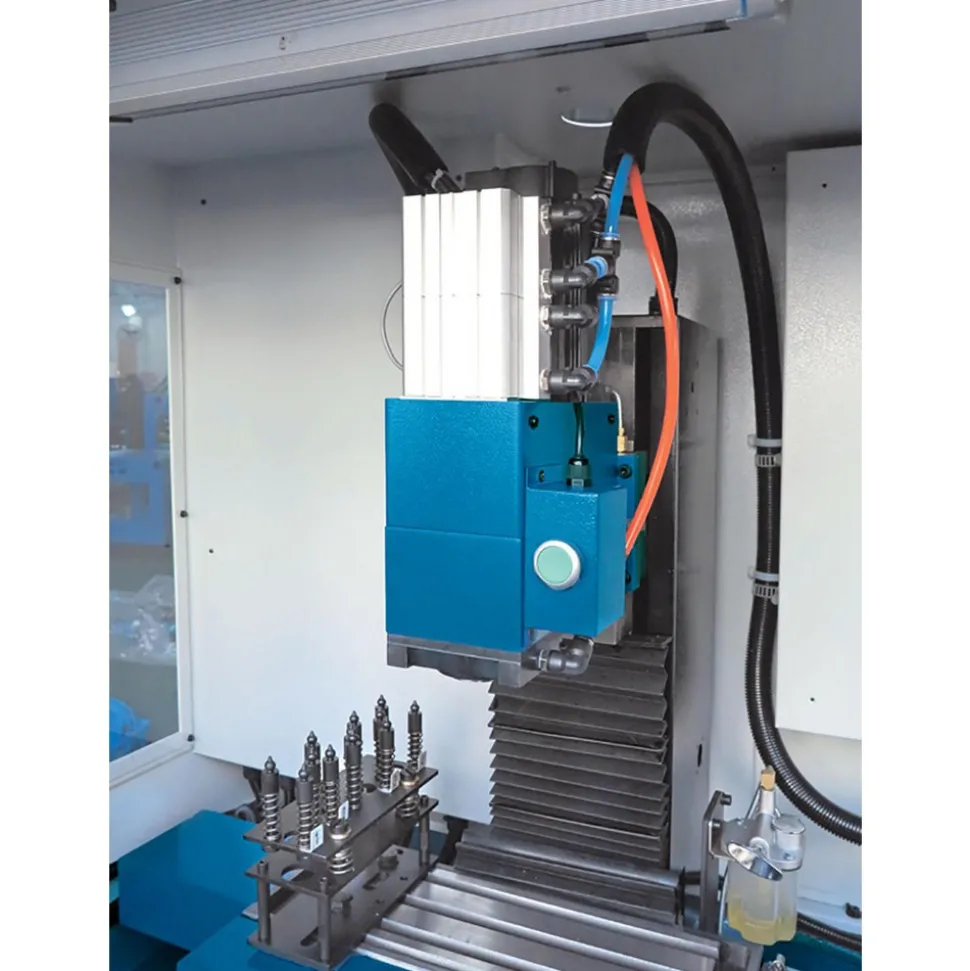

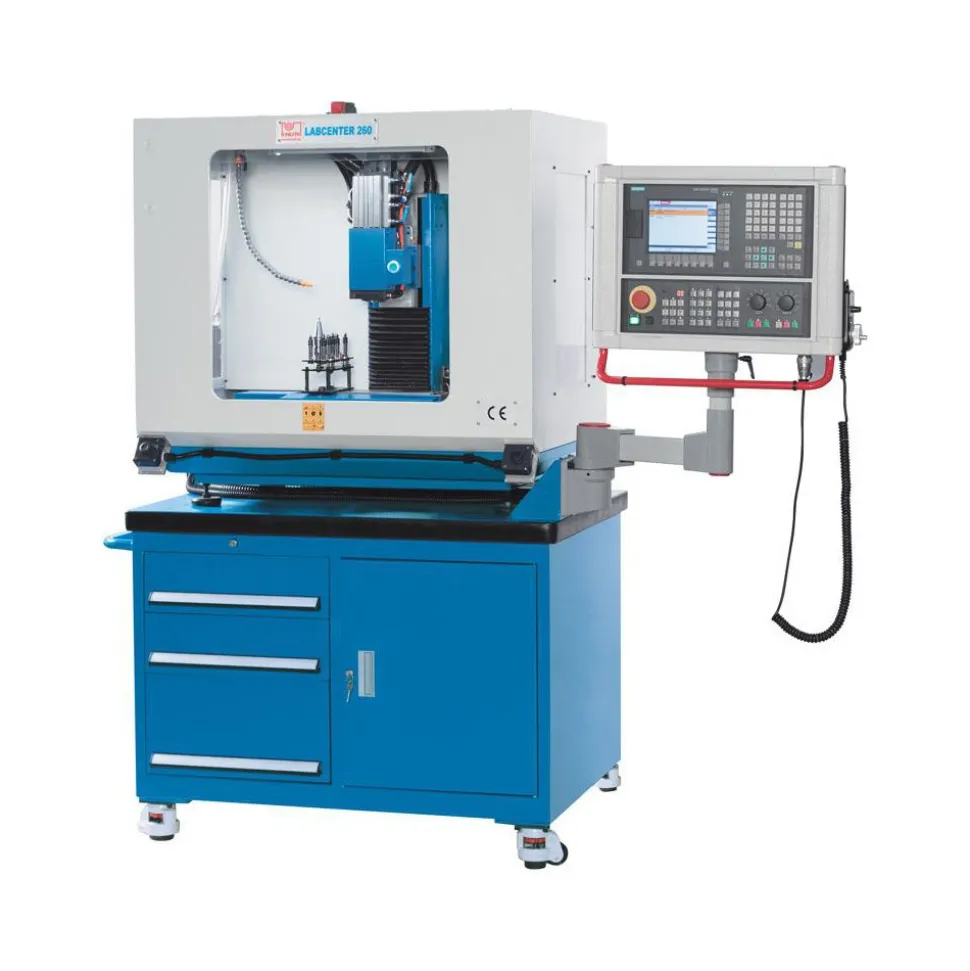

6″ x 16″ CNC Milling Machine: Siemens 808D, 380V
140,89 $
Specifications
| CNC Controller Brand: Siemens | CNC Controller Model: 808D |
| Spindle Speed Control: Frequency | Table Length (Inch): 16 |
| Table Width (Inch): 6 | Phase: Three |
| Longitudinal Travel (Decimal Inch): 10.2000 | Cross Travel (Decimal Inch): 6.0000 |
| Knee Travel (Inch): 7 | Maximum Spindle Speed (RPM): 5000.00 |
| Spindle Taper Size: ISO 20 | Minimum Spindle to Table Distance (Inch): 2 |
| Maximum Spindle to Table Distance (Decimal Inch): 9.0000 | Number Of T-slots: 3 |
| Positioning Accuracy (Decimal Inch): 0.0006 | Positioning Repeatability (Decimal Inch): 0.0004 |
| Voltage: 380V | Horsepower: 1.30 |
| Overall Height (Inch): 71 | Overall Length (Decimal Inch): 56.0000 |
| UNSPSC Code: 23241500 | Includes: Operating Tools; Electronic Hand-Wheel; Mobile Base; Central Lubrication; Siemens 808D Advance Control; Operating Manual & Programming Instructions; 4-Station Tool Changer; Work Lamp |
| CNC Controller Brand: Siemens | |
| CNC Controller Model: 808D | |
| Spindle Speed Control: Frequency | |
| Table Length (Inch): 16 | |
| Table Width (Inch): 6 | |
| Phase: Three | |
| Longitudinal Travel (Decimal Inch): 10.2000 | |
| Cross Travel (Decimal Inch): 6.0000 | |
| Knee Travel (Inch): 7 | |
| Maximum Spindle Speed (RPM): 5000.00 | |
| Spindle Taper Size: ISO 20 | |
| Minimum Spindle to Table Distance (Inch): 2 | |
| Maximum Spindle to Table Distance (Decimal Inch): 9.0000 | |
| Number Of T-slots: 3 | |
| Positioning Accuracy (Decimal Inch): 0.0006 | |
| Positioning Repeatability (Decimal Inch): 0.0004 | |
| Voltage: 380V | |
| Horsepower: 1.30 | |
| Overall Height (Inch): 71 | |
| Overall Length (Decimal Inch): 56.0000 | |
| UNSPSC Code: 23241500 | |
| Includes: Operating Tools; Electronic Hand-Wheel; Mobile Base; Central Lubrication; Siemens 808D Advance Control; Operating Manual & Programming Instructions; 4-Station Tool Changer; Work Lamp |
| MSC# | 29771276 |
| Mfr# | 181615 |
