Sale!

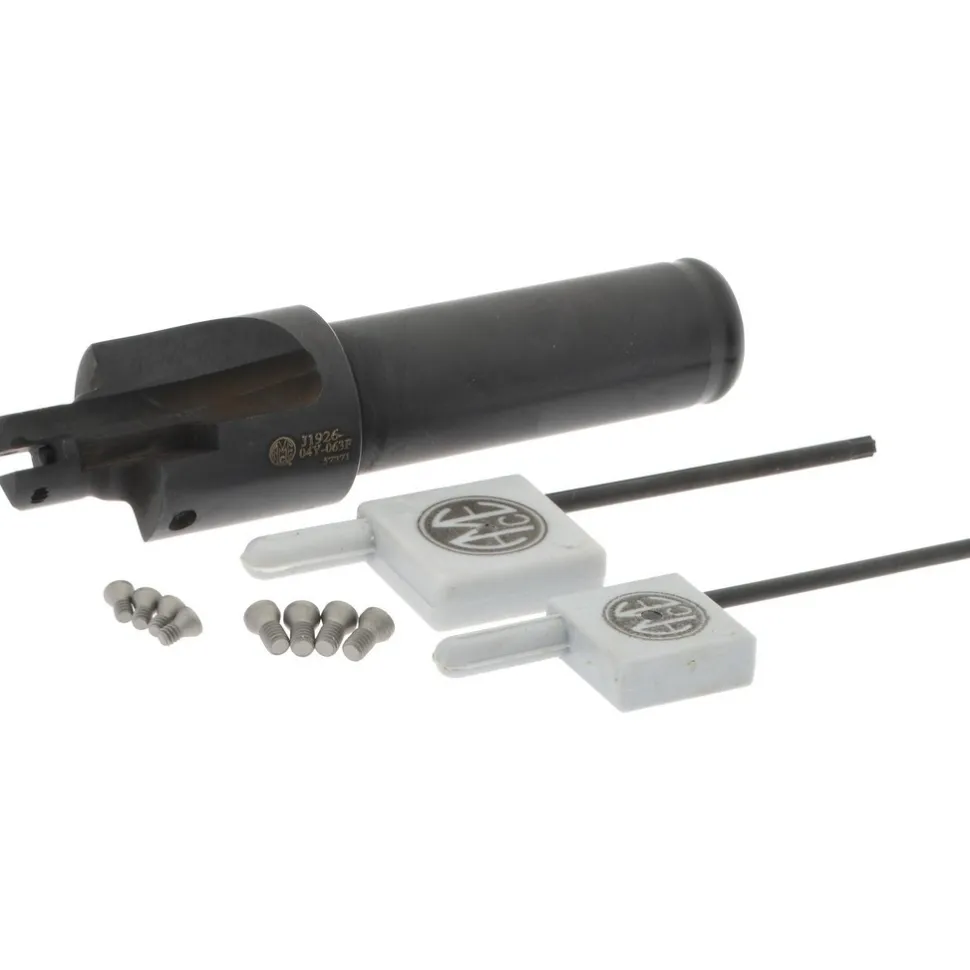

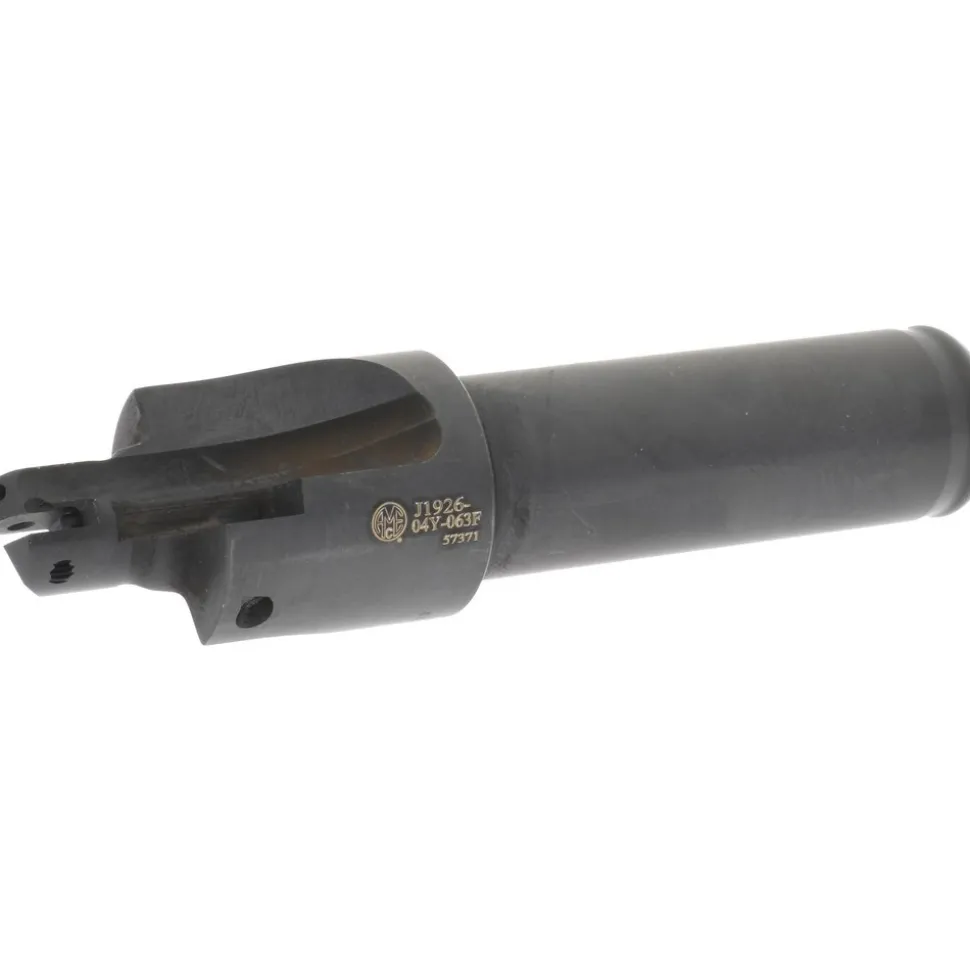

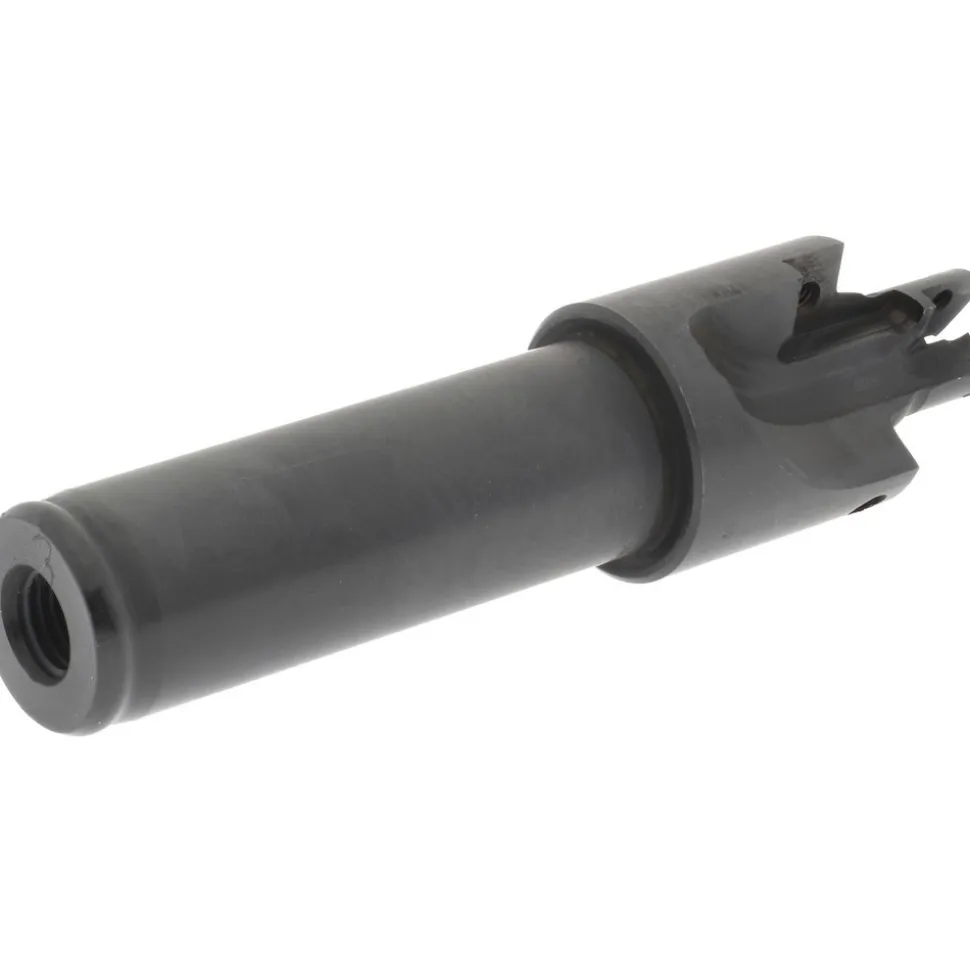

7/16-20, 0.386″ Pilot Dia, 0.841″ Spotface Dia, 0.551″ Pilot Length, Tube Dash 4, Indexable Porting Tool
Original price was: 600,00 $.128,99 $Current price is: 128,99 $.
Specifications
| Port Standard Designation: IS0 11926-1; SAE J1926-1/MS-16142 | Pilot Insert Type: Spade Blade Insert |
| Port Thread Size: 7/16-20 | Tube Dash Number: 4.000 |
| Pilot Diameter (Decimal Inch): 0.3860 | Spotface Diameter (Decimal Inch): 0.8410 |
| Shank Diameter (Inch): 0.5625 | Compatible Insert Style: J1926 |
| Number of Porting Inserts: 2 | Compatible Insert Size Code: 4C1YH-.386; 45YH-.386 |
| Coated: Coated | Porting Diameter (Decimal Inch): 0.4900 |
| Overall Length (Decimal Inch): 3.4020 | Seal Angle Length: 0.106 in |
| Primary Workpiece Material: Universal | Primary Workpiece Material Code: P; H; K; N |
| Through Coolant: No; Yes | Porting Angle: 12 |
| Porting Angle Length (Decimal Inch): 0.1060 | Head Length (Decimal Inch): 1.5270 |
| Shank Length (Decimal Inch): 1.8750 | Series: AccuPort 432 |
| UNSPSC Code: 23241603 | Country of Origin: UNITED STATES |
| Port Standard Designation: IS0 11926-1; SAE J1926-1/MS-16142 | |
| Pilot Insert Type: Spade Blade Insert | |
| Port Thread Size: 7/16-20 | |
| Tube Dash Number: 4.000 | |
| Pilot Diameter (Decimal Inch): 0.3860 | |
| Spotface Diameter (Decimal Inch): 0.8410 | |
| Shank Diameter (Inch): 0.5625 | |
| Compatible Insert Style: J1926 | |
| Number of Porting Inserts: 2 | |
| Compatible Insert Size Code: 4C1YH-.386; 45YH-.386 | |
| Coated: Coated | |
| Porting Diameter (Decimal Inch): 0.4900 | |
| Overall Length (Decimal Inch): 3.4020 | |
| Seal Angle Length: 0.106 in | |
| Primary Workpiece Material: Universal | |
| Primary Workpiece Material Code: P; H; K; N | |
| Through Coolant: No; Yes | |
| Porting Angle: 12 | |
| Porting Angle Length (Decimal Inch): 0.1060 | |
| Head Length (Decimal Inch): 1.5270 | |
| Shank Length (Decimal Inch): 1.8750 | |
| Series: AccuPort 432 | |
| UNSPSC Code: 23241603 | |
| Country of Origin: UNITED STATES |
| MSC# | 76038314 |

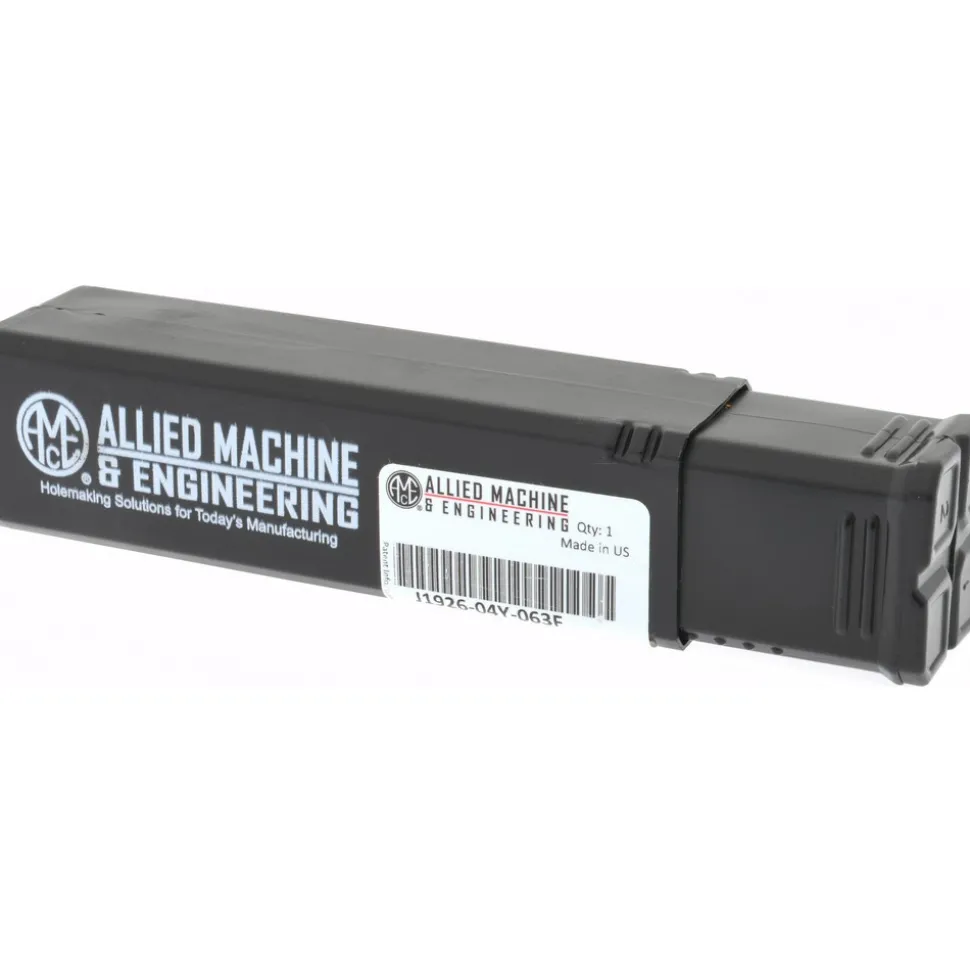

| Mfr# | J1926-04Y-063F |
| Big Book# | 204 |
