Sale!

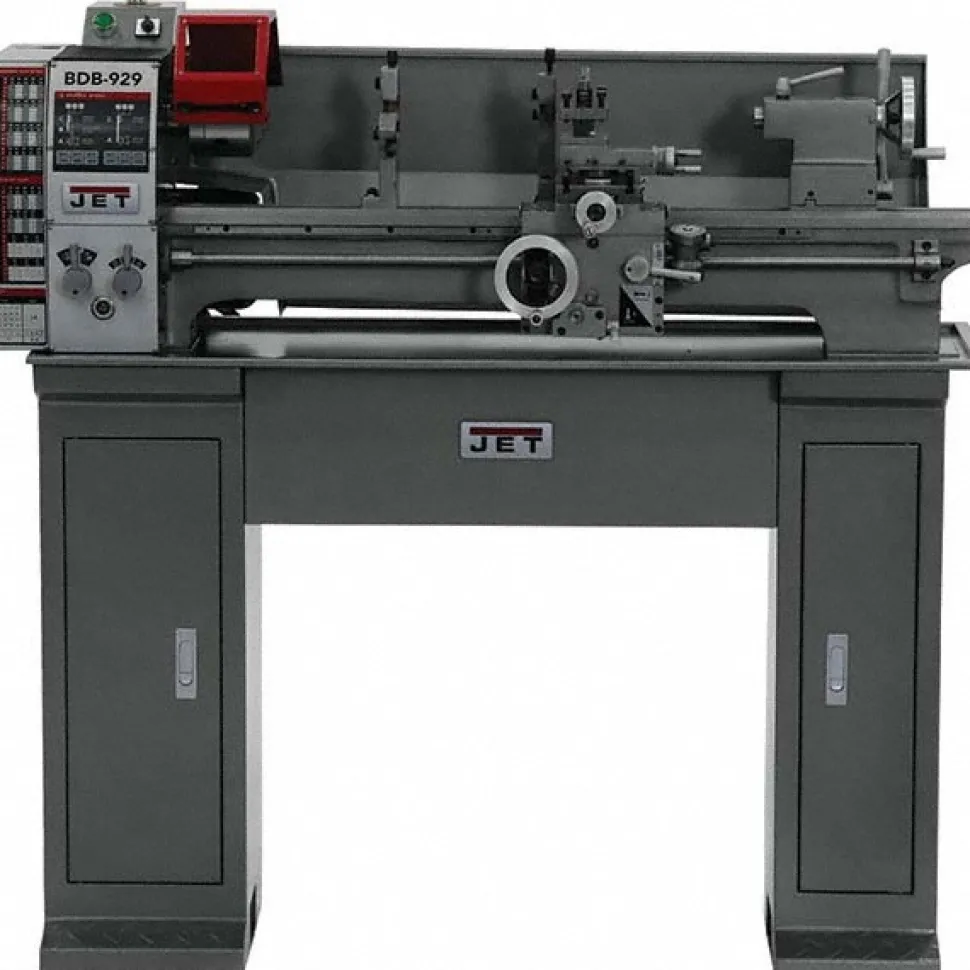

8.75″ x 18″ Bench Lathe: Geared Head, 115 V
Original price was: 6 351,00 $.130,99 $Current price is: 130,99 $.
Specifications
| Lathe Type: Toolroom | Phase: Single |
| Voltage: 115V | Swing (Inch): 8-3/4 |
| Bed Width (Inch): 4.5000 | Distance Between Centers (Inch): 18 |
| Spindle Speed Control: Geared Head | Spindle Bore Diameter (Inch): 3/4 |
| Cross Slide Travel (Inch): 5 | Bed Width (Inch): 4-1/2 |
| Minimum Metric Pitch (mm): 0.50 | Minimum Spindle Speed: 130 |
| Maximum Spindle Speed (RPM): 2000 | Overall Depth (Inch): 22 |
| Overall Depth (Decimal Inch): 22.0000 | Overall Height (Inch): 20 |
| Overall Length (Inch): 51 | Overall Length (Decimal Inch): 51.0000 |
| Cross Slide Travel (Decimal Inch): 5.0000 | Number of Inch Threads: 27 |
| Number of Metric Threads: 12 | Spindle Taper Size (Sleeve): 2MT |
| Spindle Taper Size: 2MT | Tailstock Taper Size: 2MT |
| Tailstock Travel (Decimal Inch): 1.5600 | Number Of Spindle Speeds: 6 |
| Overall Height (Decimal Inch): 20.0000 | Maximum Metric Pitch (mm): 3.50 |
| Maximum Threads Per Inch: 56 | Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0006 |
| Minimum Threads Per Inch: 8 | Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.0368 |
| Swing Over Cross Slide (Decimal Inch): 5.0000 | Swing Over Cross Slide (Inch): 5 |
| Country of Origin: China | |
| Lathe Type: Toolroom | |
| Phase: Single | |
| Voltage: 115V | |
| Swing (Inch): 8-3/4 | |
| Bed Width (Inch): 4.5000 | |
| Distance Between Centers (Inch): 18 | |
| Spindle Speed Control: Geared Head | |
| Spindle Bore Diameter (Inch): 3/4 | |
| Cross Slide Travel (Inch): 5 | |
| Bed Width (Inch): 4-1/2 | |
| Minimum Metric Pitch (mm): 0.50 | |
| Minimum Spindle Speed: 130 | |
| Maximum Spindle Speed (RPM): 2000 | |
| Overall Depth (Inch): 22 | |
| Overall Depth (Decimal Inch): 22.0000 | |
| Overall Height (Inch): 20 | |
| Overall Length (Inch): 51 | |
| Overall Length (Decimal Inch): 51.0000 | |
| Cross Slide Travel (Decimal Inch): 5.0000 | |
| Number of Inch Threads: 27 | |
| Number of Metric Threads: 12 | |
| Spindle Taper Size (Sleeve): 2MT | |
| Spindle Taper Size: 2MT | |
| Tailstock Taper Size: 2MT | |
| Tailstock Travel (Decimal Inch): 1.5600 | |
| Number Of Spindle Speeds: 6 | |
| Overall Height (Decimal Inch): 20.0000 | |
| Maximum Metric Pitch (mm): 3.50 | |
| Maximum Threads Per Inch: 56 | |
| Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0006 | |
| Minimum Threads Per Inch: 8 | |
| Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.0368 | |
| Swing Over Cross Slide (Decimal Inch): 5.0000 | |
| Swing Over Cross Slide (Inch): 5 | |
| Country of Origin: China |
| MSC# | 47844741 |
| Mfr# | 321372K |
